Slim Size 2.26 Inch TFT LCD Display 200x480 Dots Resulution SPI MCU QSPI Interface

Large Image : Slim Size 2.26 Inch TFT LCD Display 200x480 Dots Resulution SPI MCU QSPI Interface

Product Details:

Place of Origin:	ShenZhen / China
Brand Name:	SAEF
Certification:	ISO9001 / ISO14000
Model Number:	SF-TO226AS-8981A-N

Payment & Shipping Terms:

Minimum Order Quantity:	3 pcs
Price:	The best market price guranteed
Packaging Details:	Standard Exportation Package
Delivery Time:	3-5 weeks
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	3000K pcs per month

Contact Now

Slim Size 2.26 Inch TFT LCD Display 200x480 Dots Resulution SPI MCU QSPI Interface

Description

Product:	2.26" TFT LCD Display	Resolution:	200x480 Dots
Touch Screen:	No Touch (PCAP Optional)	Cover Lens:	Customizable
Viewing Direction:	All Viewing Angles (IPS)	Interface:	SPI MCU QSPI Interface
Outline Dim.:	23.92x57.4x1.47 (mm)	Pin Number:	31 Pins
Connection:	ZIF (can Be Customized）	Operating Temp.:	-20℃ To +70℃
Surface Luminance:	550 Cd/m2	Compliance:	REACH & RoHS Compliant
Highlight:	2.26 Inch TFT LCD Display , Slim Size TFT LCD Display , 200x480 Dots TFT LCD Display

** Datasheet Download **

SF-TO226AS-8981A-N.pdf

Introducing Our Slim Size 2.26 Inch TFT LCD Display!

Elevate your projects with our compact 2.26 Inch TFT LCD Display, designed for versatility and high performance. With a sharp resolution of 200 x 480 dots, this display guarantees crystal-clear visuals that bring your graphics to life.

Key Features:

Slim Design: Perfect for space-constrained applications, offering a sleek profile without compromising on performance.
High Resolution: With a 200 x 480 dot resolution, this display ensures vibrant colors and sharp image quality for an enhanced user experience.
Versatile Interface: The SPI (Serial Peripheral Interface) and QSPI (Quad Serial Peripheral Interface) options provide flexible connectivity for seamless integration with various microcontrollers and systems.
Energy Efficient: Designed with power efficiency in mind, making it ideal for battery-operated devices.

Applications:

Whether you're developing portable devices, smart gadgets, or any project where display quality matters, our 2.26 Inch TFT LCD is the perfect solution. Its robust features make it suitable for a range of applications including handheld devices, wearables, industrial controls, and more.

Why Choose Us?

Our commitment to quality and performance ensures that you get a reliable product that meets your needs. Coupled with excellent customer support, we’re here to help you bring your vision to life.

Get Started Today!

Transform your projects with our Slim Size 2.26 Inch TFT LCD Display! For more information or to place an order, visit our website or contact our sales team today.

Features:

Product:	Vertical 2.26" TFT LCD	Resolution:	200x480 Dots
Touch Screen:	No Touch (PCAP Optional)	Cover Lens:	Customizable
Viewing Direction:	All Viewing Angles (IPS)	Interface:	SPI MCU QSPI Interface
Outline Dim.:	23.92x57.4x1.47 mm	Pin Number:	31 Pins
Connection:	Plugging (can Be Customized)	Operating Temp.:	-20℃ To +70℃
Surface Luminance:	350 Cd/m2	Compliance:	REACH & RoHS Compliant

Mechanical Drawing

Slim Size 2.26 Inch TFT LCD Display 200x480 Dots Resulution SPI MCU QSPI Interface 0

Interface Pin Definition

1 GND Connect to Ground.

2 VCC Power Supply For LCD.(2.5-3.3V)

3 IOVCC Power Supply For I/O. (1.65-3.3V)

4 RESET Reset Signal input pin.

5-7 IM0-IM2 - Select the MCU interface mode.

8-15 DB7-DB0 MCU parallel interface data bus.

When IM[2]=1, DB[0]server as SDA as Serial in/out signal in 3-wire 9-bit/4-wire 8-bit/QSPI serial data interface. In QSPI 4wire mode DB[3:1] Server as SDA[3:1].

16 WR MCU: Write strobe signal. 4SPI: Data / Command Selection pin.

17 CS Chip selection signal pin.

18 RS MCU: Data / Command Selection pin. SPI/QSPI: Serial clock signal.

19 RD Read strobe signal.

20 TE Frame head pulse for tearing effect.

21 NC No Connection.

22 LEDA Power Supply For LED Backlight Anode Input.

23 NC No Connection.

24 LEDK Power Supply For LED Backlight Cathode Input.

25 NC No Connection.

26 CTP_ VCC Power Supply For CTP. (3.0V)

27 CTP_ SCL I2C clock input. (3.0V)

28 CTP_ SDA I2C data input and output. (3.0V)

29 CTP_INT Interrupt request to the host, or Wakeup request from the host. (3.0V)

30 CTP_RST External Reset, Low is active. (3.0V)

31 GND Ground.

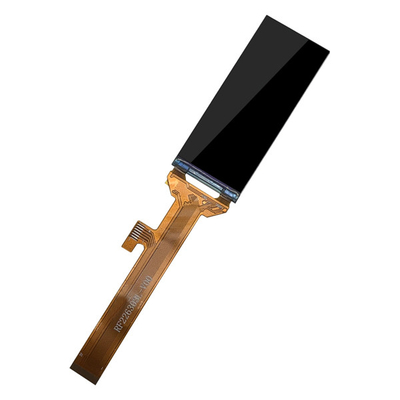

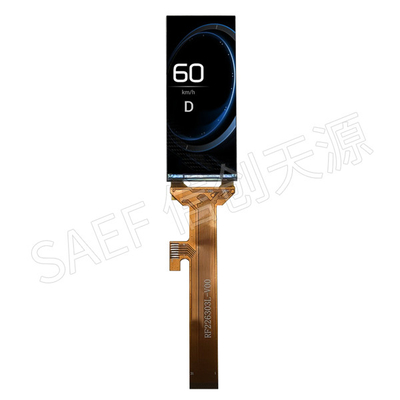

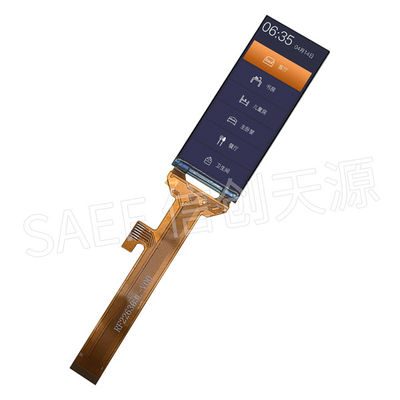

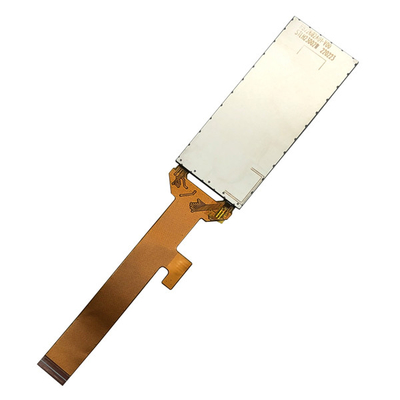

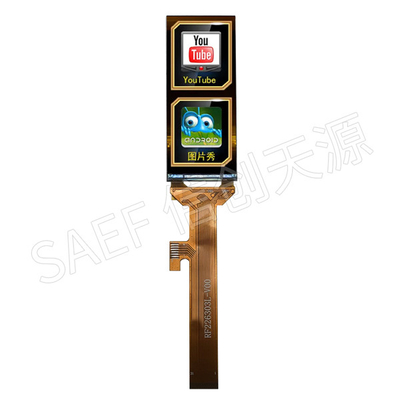

Product Image

Factory Facilities and Certifications

Slim Size 2.26 Inch TFT LCD Display 200x480 Dots Resulution SPI MCU QSPI Interface 4
