China Industrial TFT Display 13.3 Inch, 13.3 Inch FHD Resolution Industrial Capacitive Touch LCD Monitor

China Industrial TFT Display 13.3 Inch, 13.3 Inch FHD Resolution Industrial Capacitive Touch LCD Monitor Product Description

SFTO1330JD-7057A-CT TFT LCD display is a 13.3 inch color active matrix TFT LCD module using amorphous silicon TFT‘s (Thin Film Transistors) as an active switching devices. SFTO1330JD-7057A-CT TFT LCD display module has a 13.3 inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(Round up)(6bit+2FRC) colors and color gamut 72%. The LED driver for back-light driving is built in this model.

SFTO1330JD-7057A-CT TFT LCD display is demostrating graphics and texts on a 1920×3×1080 dotspanel with16.7M colors by using eDP (Embedded Display Port) Ver1.2 interface and supplying+3.3VDC supply voltage for TFT-LCD panel driving.In this SFTO1330JD-7057A-CT TFT LCD display panel, color filters for excellent color performance is incorporated to realize brighter and clearer pictures, making this display optimum for use in multi-media applications.Optimum viewings are in all directions.Without Backlight-driving LED controller. EDP transfer rate specification: 2.7Gbps/2 lane 8bit.

* Reserve Type
* eDP interface
* High-speed response
* 6-bit (Hi-FRC) color depth, Display 16.7M colors
* Incorporated edge type (LED) backlight
* Compatible with RGB98% and NTSC72%
* High luminance and contrast ratio, low reflection and wide viewing angle
* DE ( data enable ) only
* Rohs and Halogen free
* TEO 6.0, ES6.0 Compliant
* Gamma Correction

Features:

China Industrial TFT Display 13.3 Inch, 13.3 Inch FHD Resolution Industrial Capacitive Touch LCD Monitor Product Drawing

Display Pin Definition

1 NC             No connection

2 H-GND       Ground

3 LAN1_N     Complement Signal Link _Lane1

4 LAN1_P     True Signal Link _Lane1

5 H-GND       Ground

6 LAN0_N     Complement Signal Link _Lane0

7 LAN0_P     True Signal Link _Lane0

8 H-GND      High Speed Ground

9 AUXP        True Signal Link _Auxiliry Channel

10 AUXN      Complement Signal Link _Auxiliry Channel

11 H-GND    Ground

12 LCD_VCC     Power Supply, 3.3V (typ.)

13 LCD_VCC     Power Supply, 3.3V (typ.)

14 BIST        Panel self test enable

15 H-GND    Ground

16 H-GND    Ground

17 HPD        HPD(Hot Plug Detect) Signal Pin

18 BL_GND     High Speed Ground

19 BL_GND     High Speed Ground

20 BL_GND     High Speed Ground

21 BL_GND     High Speed Ground

22 BL_EN        Backlight on/off Control pin

23 BL_PWM    Back light PWM Dimming

24 NC        No connection

25 NC        No connection

26 BL_PWR     Backlight power

27 BL_PWR     Backlight power

28 BL_PWR     Backlight power

29 BL_PWR     Backlight power

30 NC        No connection

PCAB USB Pin Definition

1 VCC

2 USB-

3 USB+

4 GND

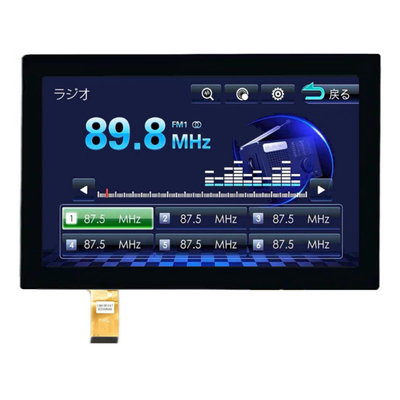

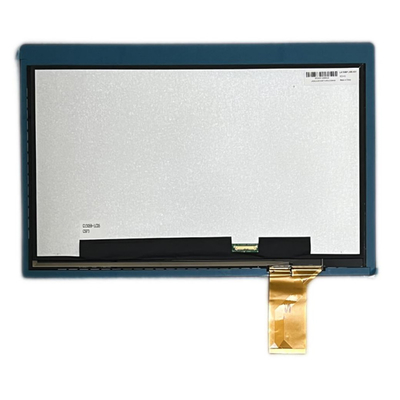

China Industrial TFT Display 13.3 Inch, 13.3 Inch FHD Resolution Industrial Capacitive Touch LCD Monitor Product Image

Factory Facilities and Certificates

Projected Capacitive (PCAP) touch

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF

technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

Cover Glass:

1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232

Introduction of touch screen OCA Bonding materials

With the development of technology, more and more of our electronic devices, especially the development of touch screens, are getting higher and higher for the optical materials for the structure of optical bonding, which are required to have colorless transparency, light transmittance of more than 98%, good bonding strength, can be cured at room temperature or medium temperature, and have the characteristics of small curing shrinkage, this adhesive is called optical adhesive. Optical adhesives made of different materials such as silicone, acrylic resin, unsaturated polyester, polyurethane, epoxy resin, etc.

1. What is OCA

OCA (Optically Clear Adhesive) is a double-sided adhesive tape without matrix material obtained by making optical acrylic glue into no substrate material, and then laminating a layer of release film on the upper and lower layers.

2. Advantages of OCA

High cleanliness, high light transmittance, low haze; The thickness of the adhesive layer is uniform and the flatness is high; High adhesion and high bonding strength after lamination; Soft to soft, soft to hard, hard to hard can be fitted, and the fit material has a wide applicability.

3. OCA production company

3M and tesa are the main ones, and the 3M production capacity is mainly occupied by traditional LCD manufacturers for a long time, and basically occupies the highest-end market; Mitsubishi and Nitto Denko from Japan, South Korea is LG Chem and SKC from South Korea.

4. What is OCR

OCR (Optical Clear Resin) is a kind of optical glue, because the glue is in a liquid state, it is also known as liquid optical glue, optical water glue or LOCA. After curing, the glue is colorless and transparent, with a light transmittance of more than 98%, and has the characteristics of small curing shrinkage and yellowing resistance. In the field of optical lamination, compared with traditional OCA tapes, OCR has unique advantages in large size, curved surfaces, harsh environments and other fields.

5. Advantages of OCR/LOCA

1) Strong applicability, one glue can correspond to a variety of laminating products;

2) Liquid glue has strong fluidity, is not sensitive to ink thickness, and has good gap filling;

3) It is suitable for large-size lamination, and there is no restriction on the size of the laminating product;

4) It is suitable for surface lamination or complex structure lamination;

5) High lamination yield and good rework performance;

6) Chemical bonding, the bonding is less affected by temperature, and the bonding stability is strong.

6. OCR/LOCA production companies are: Wacker, Henkel, Momentive, DuPont;

SAEF Technology is committed to providing complete solutions for functional materials for the smart and touch industries, and has developed high-sensitivity silicone OCR products for touch screens that are used in the optical lamination process of display components such as cover glass, touch sensors and LCD modules. The combination of silicone OCR and A/R glass perfectly solves the problem of light loss in the air layer between the touch screen and the display panel, which can increase the contrast by 400% in sunlight and improve the visibility of the touch screen inside and outside. Silicone OCR for high-sensitivity touch panels can be used for a long time in the range of -50-200°C, which improves the reliable performance of the display and thus extends the life of the display product. Compared with frame-mounted components, silicone OCR/LOCA for high-sensitivity touch screens can also reduce the impact of external impacts, improve impact resistance and bending strength, and increase the reliability of touch screens. Liquid silicone OCR enables a wide range of product adhesion thicknesses, better fills gaps between inks and coatings, and enables thinner designs.
