Product Details:
|
| Keywords: | 10.4 Inch TFT LCD Display | Resolution: | 1024x768 |
|---|---|---|---|
| Interface: | LVDS | Cover Glass Dimension: | ODM, Customizable |
| Surface Luminance: | 500 Cd/m2 | LED Lifetime: | 50,000 Hours |
| Pins: | 30 Pins | Outline Dimension: | 238.6(H)x175.8(V)x6.5(T) (mm) |
| Active Area: | 210.4(H)x157.8(V) (mm) | Display Color: | 16.7 M |
| Total Power Consumption: | 5.3 W (TYP) | Touch Screen: | PCAP And Resistive Touch Customizable |
| Viewing Direction: | All Viewing Angles | Connection: | ZIF / Plugging |
| Operating Temp.: | –30℃ To +80℃ | Storage Temp: | –40℃ To +85℃ |
| Contrast Ratio: | 1000 : 1 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 1024x768 Industrial TFT Display,Industrial TFT Display 10.4 Inch,30Pin LCD TFT Display |
||
0.4inch Industrial TFT LCD Display 1024x768 Pixels LVDS Interface 30 Pin Product Introduction
SF-TO104I-8957A-N is a 10.4” TFT Liquid Crystal Display module with LED backlight unit and 30-pin-and-1ch LVDS interface. This product supports 1024x768 format and can display true 16.2M colors (6-bits colors with FRC). The converter module for LED backlight is built-in. Contrast ratio of the display is 1000:1 with full all viewing angles.
SF-TO104I-8957A-N is fully compatible with Innolux model ZE104IA-03D. SF-TO104I-8957A-N TFT LCD Display Module can be operating at temperatures from–30℃ to +80℃. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
Features:
| Keywords: | 10.4 Inch TFT LCD Display |
| Resolution: | 1024x768 |
| Interface: | LVDS |
| Cover Glass Dimension: | ODM, Customizable |
| LED Lifetime: | 50,000 Hours |
| Surface Luminance: | 500 Cd/m2 |
| Pins: | 30 Pins |
| Outline Dimension: | 238.6(H)x175.8(V)x6.5(T) (mm) |
| Active Area: | 210.4(H)x157.8(V) (mm) |
| Total Power Consumption: | 5.3 W (TYP) |
| Viewing Direction: | All Viewing Angles |
| Operating Temp.: | –30℃ To +80℃ |
| Storage Temp: | –40℃ To +85℃ |
| Contrast Ratio: | 1000:01:00 |
| Display Color: | 16.7 M |
| Touch Screen: | PCAP And Resistive Touch Customizable |
| Connection: | ZIF / Plugging |
| Compliance: | REACH & RoHS Compliant |
- Excellent brightness (500 nits)
- Ultra high contrast ratio (1000:1)
- Fast response time (Ton+Toff average 25 ms)
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- Ultra wide viewing angle: 176(H)/ 176(V) (CR>10) Super MVAtechnology-180 degree rotation display option
-Color reproduction (Nature color)
-Wide operation and storage temperature range
-Application: - TFT LCD monitor for Industrial applications - Slim design display for portable applications - Digitizer Applicable Design
10.4inch Industrial TFT LCD Display 1024x768 Pixels LVDS Interface 30 Pin Product Drawing
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
| Supply Voltage | Vf | 29 | 30 | 33 | V | If=20 mA |
| Supply Current | If | – | 0.25 | 0.35 | A | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 3.1 | – | W | – |
| Luminous Intensity for LCM |
– |
– | 500 | – | Cd/m2 | If=20mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If=20 mA |
| LED life time | Hr | 30000 | 50000 | – | Hour | – |
| Backlight Color | White | |||||
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 85°C | 480 |
No abnormalities in functions and appearance |
| High temp. Operating | 80°C | 480 | |
| Low temp. Storage | -40°C | 480 | |
| Low temp. Operating | -30°C | 480 | |
| Humidity | 60°C/ 90%RH | 480 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
30cycles |

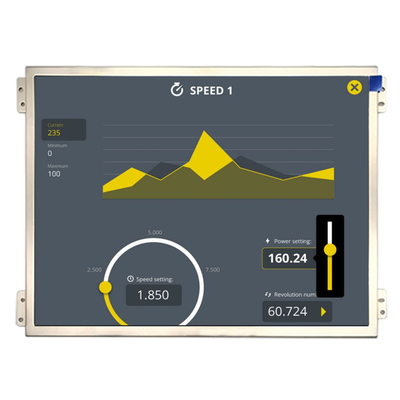

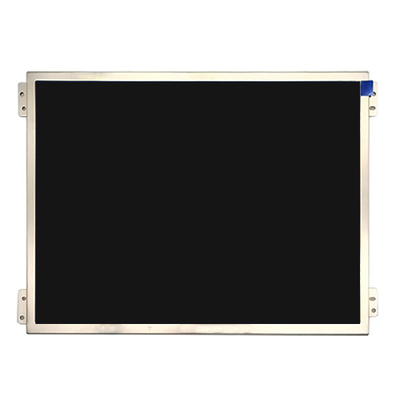

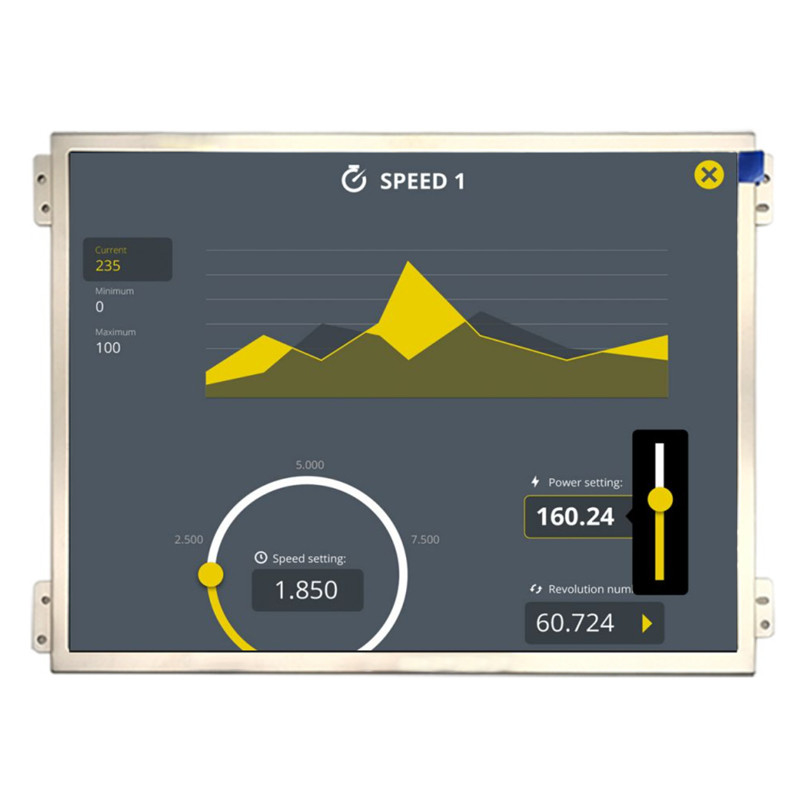

10.4inch Industrial TFT LCD Display 1024x768 Pixels LVDS Interface 30 Pin Product Image
