Product Details:
|
| Keywords: | 8 Inch TFT LCD | Resolution: | 1920*1200 |
|---|---|---|---|
| Interface: | LVDS | Pins: | 45 PINS |
| Touch Screen: | Available / Optional | Surface Luminance: | 1200 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours | Viewing Direction: | All Viewing Angles |
| Connection: | Connector Type | Operating Temp.: | –30℃ To +85℃ |

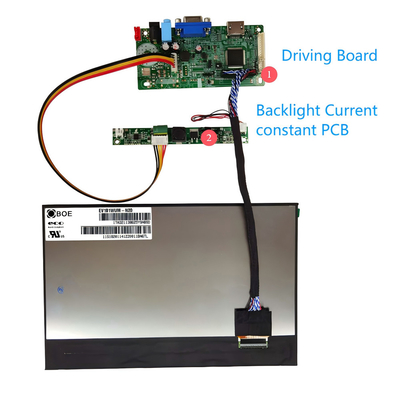

| Driving Board: | Available / Optional | LED Current Constant: | Available / Optional |
| Compliance: | REACH & RoHS Compliant | Certification: | ISO9001:2015 / ISO14000:2015 |
| Highlight: | Automotive Grade TFT Touch Screen,High Resolution TFT Touch Screen,8 Inch TFT LCD IPS Display |
||
Datasheet Download
SFTO800BD-7218AN Specification.pdf
About this item SFTO800BD-7218AN
The Automotive Grade 8 Inch TFT LCD IPS Display SFTO800BD-7218AN sets a new standard for high-resolution visual technology in the automotive industry. Designed to deliver crystal-clear images and vibrant colors, this display is ideal for a variety of applications, including in-vehicle infotainment systems, navigation displays, dashboard instrumentation, and more. With its Full HD resolution and advanced IPS technology, it ensures an exceptional viewing experience under various lighting conditions.
High Resolution FHD Display: Offering a Full HD resolution of 1920 x 1200 pixels (16:10), this display provides sharp and detailed images, enhancing the clarity of graphics and text.
IPS Technology: The In-Plane Switching (IPS) technology promotes wider viewing angles (up to 178 degrees) and better color reproduction, allowing passengers and drivers to experience consistent and accurate colors from any angle.
Automotive Grade Compliance: Built to meet stringent automotive standards, this display is engineered for durability and reliability in harsh environments, including temperature extremes, vibrations, and humidity.
Touch Screen Interface: The USB-interface capacitive touch technology allows for seamless interaction, enabling users to navigate menus, control applications, and engage with the system intuitively.
High Brightness and Contrast: With high brightness levels (up to 1200 nits), the display remains highly visible in direct sunlight, making it suitable for all-day driving conditions. The enhanced contrast ratio ensures darker blacks and brighter whites for a more immersive experience.
Low Power Consumption: Designed with energy efficiency in mind, this display consumes less power while delivering high performance, contributing to reduced battery drain in electric and hybrid vehicles.
Seamless Integration: The compact design of the 8-inch display allows for easy integration into existing automotive dashboards and systems, with flexible mounting and connection options.
Longevity and Reliability: Our display is built to last, with a lifespan exceeding 50,000 hours of continuous use, ensuring it remains operational throughout the life of the vehicle.
The Automotive Grade 8 Inch TFT LCD IPS Display SFTO800BD-7218AN is an ideal choice for manufacturers and developers seeking to enhance their vehicle technologies with a reliable, high-resolution touch display. Its impressive features, including Full HD resolution, wide viewing angles, and automotive compliance, make it a standout solution for modern automotive applications. Experience the future of automotive displays with our state-of-the-art technology that combines durability, performance, and user engagement.
Features
| Parameter | Specification | Unit | Remark |
| Outline Size | 181.7(H) ×119.8(V) ×5.5(T) | mm | FOG |
| Active Area | 172.224(H) ×107.640(V) | mm | Note 1.1 |
| Brightness | 1000-1200 | cd/m² | - |
| Number of Pixels | 1920(H)xRGB×1200 (V) | pixels | - |
| Pixel Pitch | 29.9(H) ×3×89.7(V) | μm | - |
| Pixel Arrangement | RGB Vertical Stripe | - | - |
| Display Colors | 16.7M | - | - |
| Color Gamut | 70%(Min.), 75% (Typ.) | CF @C Light | |
| Display Mode | Normally Black | - | - |
| Viewing Direction | 85/85/85/85 (Typ.) 80/80/80/80 (Min.) | Deg. | CR>=10 |
| Weight | TBD | gram | - |
| interface | 2-port LVDS( 8bit) | - | - |
| IC | FL5893DA | Note 1.2 |
Note 1.1: H: horizontal length, V: vertical length.
Note 1.2: Compatible ICs for this product include FL5893DA, Please contact IC manufacturer and vetify it when you choose any one of them. The information we suppose about IC just for reference.
Mechanical Drawing
Pin Description
| No. | Symbol | Function | No. | Symbol | Function |
| 1 | VLED- | Power for LED backlighr (Cathode) | 24 | GND | ground |
| 2 | VLED- | Power for LED backlighr (Cathode) | 25 | OLV2P | LVDS differential data input Positive |
| 3 | VLED+ | Power for LED backlighr (Anode) | 26 | OLV2N | LVDS differential data input Negative |
| 4 | VLED+ | Power for LED backlighr (Anode) | 27 | GND | ground |
| 5 | NC | No connection | 28 | OLVCLKP | LVDS differential data input Positive |
| 6 | GND | ground | 29 | OLVCLKN | LVDS differential data input Negative |
| 7 | ELV3P | LVDS differential data input Positive | 30 | GND | ground |
| 8 | ELV3N | LVDS differential data input Negative | 31 | OLV1P | LVDS differential data input Positive |
| 9 | GND | ground | 32 | OLV1N | LVDS differential data input Negative |
| 10 | ELV2P | LVDS differential data input Positive | 33 | GND | ground |
| 11 | ELV2N | LVDS differential data input Negative | 34 | OLV0P | LVDS differential data input Positive |
| 12 | GND | ground | 35 | OLV0N | LVDS differential data input Negative |
| 13 | ELVCLKP | LVDS differential data input Positive | 36 | GND | ground |
| 14 | ELVCLK N | LVDS differential data input Negative | 37 | I2C _SDA | data input/output for I2C(please let these pins open.) |
| 15 | GND | ground | 38 | I2C _SCL | Clock signal for I2C(please let these pins open.) |
| 16 | ELV1P | LVDS differential data input Positive | 39 | VDD_OTP | Power supply for OTP circuit(please let these pins open.) |
| 17 | ELV1N | LVDS differential data input Negative | 40 | EEPEN | Only test Pin( please let these pins open.) |
| 18 | GND | ground | 41 | VDDIN | Power supply |
| 19 | ELV0P | LVDS differential data input Positive | 42 | VDDIN | Power supply |
| 20 | ELV0N | LVDS differential data input Negative | 43 | VDDIN | Power supply |
| 21 | GND | ground | 44 | VDDIN | Power supply |
| 22 | OLV3P | LVDS differential data input Positive | 45 | VDDIN | Power supply |
| 23 | OLV3N | LVDS differential data input Negative |
Optical Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark | |
|
Viewing Angle Range |
Horizontal |
Θ3 |
CR > 10 |
80 | 85 | - | Deg. |
Note 6.1 |
| Θ9 | 80 | 85 | - | Deg. | ||||
|
Vertical |
Θ12 | 80 | 85 | - | Deg. | |||
| Θ6 | 80 | 85 | - | Deg. | ||||
| Contrast Ratio | CR |
Θ = 0 |
1000 | 1200 | - |
HC+APF Note 6.2/6.3 |
||
| Cell Transmittance | Tr | 3.8 | 4.5 | - | % | |||
|
Chroma@CIE1931 |
Rx |
Θ = 0 |
0.654 | 0.674 | 0.694 |
@C Light Note 6.4 |
||
| Ry | 0.302 | 0.322 | 0.342 | |||||
| Gx | 0.249 | 0.269 | 0.289 | |||||
| Gy | 0.582 | 0.602 | 0.622 | |||||
| Bx | 0.113 | 0.133 | 0.153 | |||||
| By | 0.095 | 0.115 | 0.135 | |||||
| Wx | 0.276 | 0.296 | 0.316 | |||||
| Wy | 0.318 | 0.338 | 0.358 | |||||
| Color Gamut | Θ = 0 | 70 | 75 | - | % | |||
| Response Time | Tr+Tf |
Ta= 25 C Θ = 0 |
- |
30 | 35 | ms | Note 6.5 | |
Reliability Test Parameters
| No | Items | Conditions |
| 1 | High Temperature Storage test(HTS) | 85℃ , 240hrs, Non-operational |
| 2 | Low Temperature Storage test(LTS) | -30℃ , 240hrs, Non-operational |
| 3 | High Temperature Operating test(HTO) | 85℃ , 240hrs, operational |
| 4 | Low Temperature Operating test(LTO) | -30℃ , 240hrs, operational |
| 5 | Thermal Humidity Operating test(THO) | 60℃/90%RH, 240hrs, operational |
| 6 | Thermal Cycle Storage test(TST) | -30~80℃ , 100cycles, 1hr/cycle, Non-operational |
|
7 |
Image Sticking |
5*5 Pattern, 1hr 25℃±2℃ check pattern Gray 127, after 3 min, the mura must be d isap peared completely |

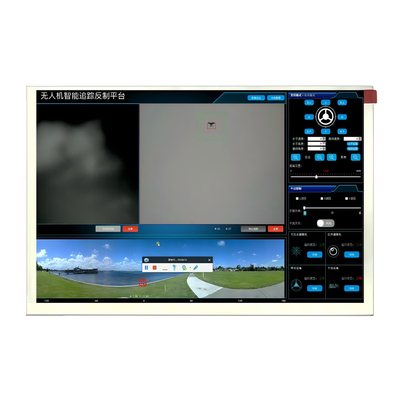

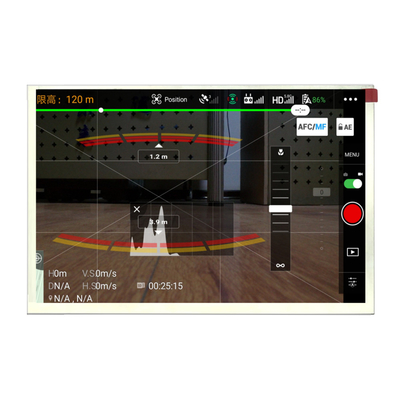

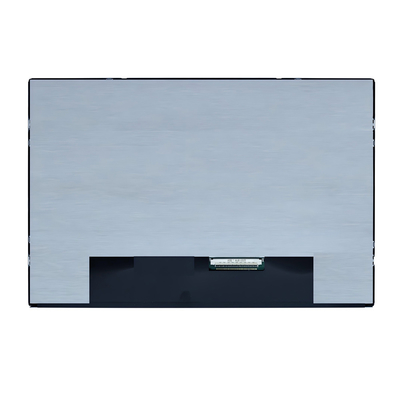

Product Image
