3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional
3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional

Large Image :  3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC370S-9793B-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month
Contact Now

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional

Description
Product: 3.7" Inch TFT Screen Resolution: 480x800
Driver IC: HX8369-A01 Touch Screen: Without
Cover Glass Dimension: Can Be Customized Viewing Direction: IPS All Viewing Angles
Interface: RGB 18 Bits Connection: Connector Type
Pin Number: 40 Pins Surface Luminance: 300 Cd/m2(nits)
Outline Dim.: 53.48(H)*91.72(V)*1.6(T) (mm) Operating Temp.: -20℃ To +70℃
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

3.7 Inch TFT LCD Display

,

IPS type TFT LCD Display

3.7 Inch TFT LCD Display, 3.7" LCD Screen 480x800 Pixels Product Introduction



Features

  • This 3.7 inch TFT LCD display SF-TC370S-9793B-N is a diagonal size of 3.7 inches and a resolution of 480x800 pixels(480 horizontal by 800 vertical pixels array).
  • This 3.7 LCD display module is equipped with an HX8369-A01 driver IC functions and supports RGB interface.
  • This 3.7 inch TFT display has the power supply voltage (Vdd) ranges from 2.6V to 3.3V (typical value of 2.8V).
  • This 3.7 inch LCD screen is IPS type display with a full view angle 85/85/85/85 max.
  • this 3.7 inch portrait TFT SF-TC370S-9793B-N is displayed in vertical mode with a brightness of 300 nits, and can be customized to 1000 nits according to customer requirements.
  • This 3.7-inch LCD screen can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃.
  • Whether used indoors or outdoors, this 3.7-inch TFT LCD display can meet various display requirements. It is a multifunctional and high-performance solution suitable for industrial equipment, scanners, home automation, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, and a wide range of applications.

Product Information

Product: 3.7" Inch TFT Screen
Resolution: 480x800
Viewing Direction: IPS All Viewing Angles
Driver IC: HX8369-A01
Touch Screen: Without
Cover Glass Dimension: Can Be Customized
Interface: RGB 18 Bits
Connection: Connector Type
Surface Luminance: 300 Cd/m2(nits)
Operating Temp.: -20℃ To +70℃
Pin Number: 40 Pins
Outline Dim.: 53.48(H)*91.72(V)*1.6(T) (mm)
LED Lifetime: 40,000 Hours
Compliance: REACH & RoHS Compliant



3.7 Inch TFT LCD Display, 3.7" LCD Screen 480x800 Pixels Product Drawing

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 0

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 1

Pin Definition

NO. PIN NAME I/O Description
1 GND I Ground
2 AVDD(2.8V) I Power Supply 2.8V Voltage
3 VDDIO(1.8V) I Power Supply 1.8V Voltage
4-9 R5-R0 I/O Display Data I/O
10-15 G5-G0 I/O Display Data I/O
16-21 B5-B0 I/O Display Data I/O
22 LCDC_RST I LCM Reset input signal
23 LCDC_VSYNC I Vertical sync. Signal in RGB I/F.
24 LCDC_HSYNC I Horizontal sync. Signal in RGB I/F.
25 SPI_SDO I Serial output signal in SPI I/F.
26 SPI_SDI I Serial input signal in SPI I/F.
27 SPI_SCLK I A synchronous clock signal in SPI I/F.
28 SPI_CS I Chip select input pin (“Low” enable) in SPI I/F.
29 LCDC_PCLK I Pixel clock signal in RGB I/F.
30 LCDC_DEN I Data enable signal in RGB I/F mode 1.
31 LEDK8 O LED Cathode
32 LEDK7 O LED Cathode
33 LEDK6 O LED Cathode
34 LEDK5 O LED Cathode
35 LEDK4 O LED Cathode
36 LEDK3 O LED Cathode
37 LEDK2 O LED Cathode
38 LEDK1 O LED Cathode
39 LEDA O LED Anode
40 GND I Ground


Maximum Absolute Limit

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 2



DC Characteristics

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 3



Backlight Electrical-optical Characteristics

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 4



Optical Characteristics

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 5

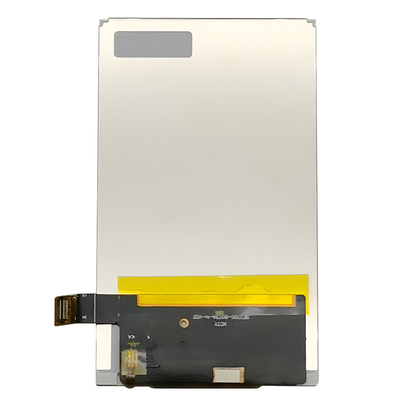

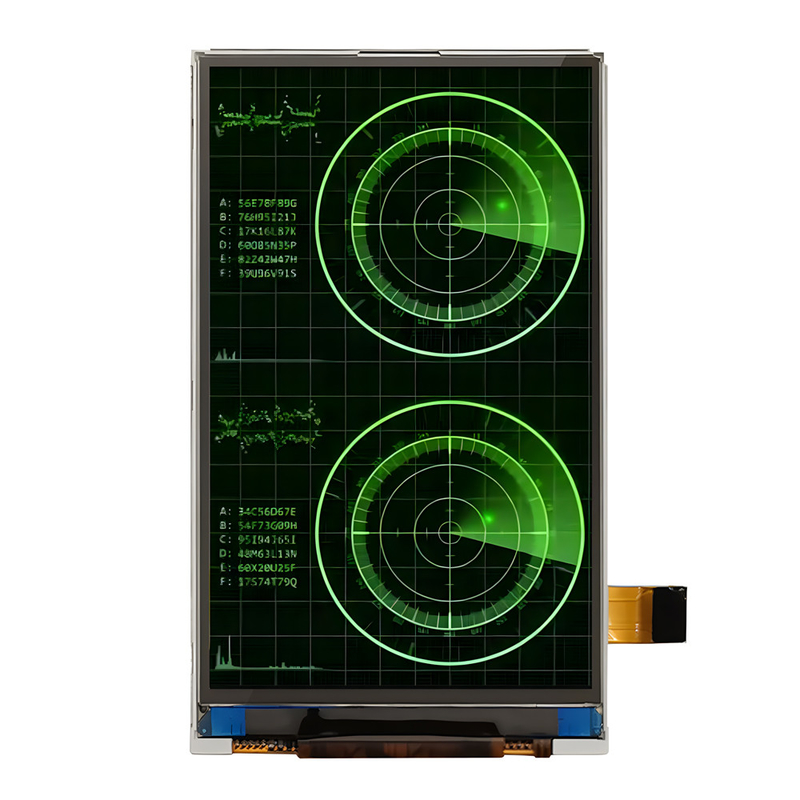

3.7 Inch TFT LCD Display, 3.7" LCD Screen 480x800 Pixels Product Image

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 6

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 7



Factory Facilities and Certificates

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 83.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 9



Search keyword: tft 3.7", 3.7 tft lcd, 3.7" tft lcd, 3.7 inch tft lcd, tft lcd 3.7, 3.7 tft display, 3.7" tft display, 3.7 inch tft display, tft display 3.7 inch, tft display 3.7", 3.7 inch tft lcd display, 3.7" tft screen, 3.7 inch tft screen, tft screen 3.7 inch, tft screen 3.7", 3.7 inch tft lcd screen, WVGA TFT, 3.7 inch WVGA, 3.7 inch 480x800, hx8369 TFT
