Product Details:
|
| Product: | 8 Inch RGB TFT LCD Display | Viewing Direction: | TN 12 O'clock |
|---|---|---|---|
| Pin Number: | 50pins | Interface: | 24 Bits RGB |
| Resolution: | 800 RGB X 600 | Surface Luminance: | 250 Cd/m2(nits) |
| Outline Dim.: | 182.9(H) ×141.0(V) × 5.5(T) (mm) | Active Area: | 162.0(H) X 121.5(V) (mm) |
| Touch Screen: | RTP & CTP Optional | Surface Treatment: | Hard Coating(3H) |
| Display Colors: | 16.7 M | Connection: | Plug-In |
| Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 8inch Industrial TFT Display,Hard Coating Industrial TFT Display |
||

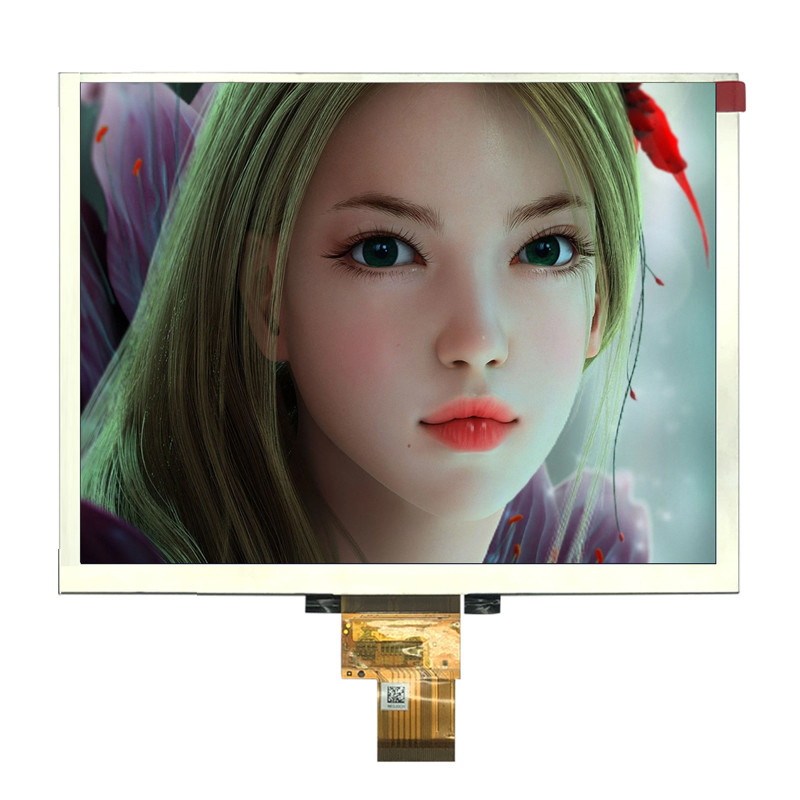

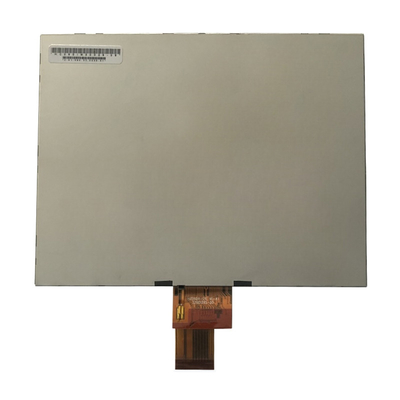

Good Quality 8inch Industrial TFT Display 800x600 Dots 24-Bit RGB 50 Pins Product Introduction
SFTO800FC-7008AN TFT LCD display is a 8inch TN type 12 O'clock viewing direction with resolution of 800x600 pixels. This industrial grade TFT LCD Display Module supports 24 bits RGB interface. this TFT screen SFTO800FC-7008AN is operated at 3.3V(power voltage), Vdd is from 3.0V to 3.6V.

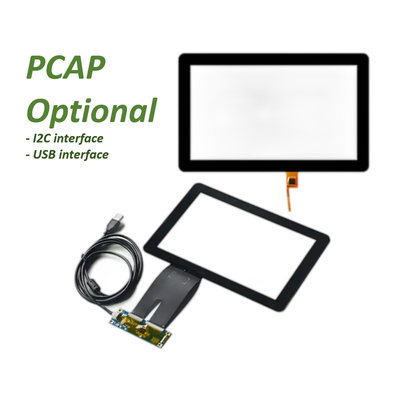

SFTO800FC-7008AN is designed with capacitive and resistive touch panels, IIC and USB interface optional. This TFT LCD module is with 250cd/m2 luminance. The TFT touch LCD SFTO800FC-7008AN is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminal, HMI, home automation, security system, etc.
Features
| Product: | 8 Inch RGB TFT LCD Display |
| Resolution: | 800 RGB X 600 |
| Surface Luminance: | 250 Cd/m2(nits) |
| Viewing Direction: | TN 12 O'clock |
| Interface: | 24 Bits RGB |
| Outline Dim.: | 182.9(H) ×141.0(V) × 5.5(T) (mm) |
| Pin Number: | 50pins |
| Active Area: | 162.0(H) X 121.5(V) (mm) |
| Surface Treatment: | Hard Coating(3H) |
| Connection: | Plug-In |
| Touch Screen: | RTP & CTP Optional |
| Display Colors: | 16.7 M |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
>This 8-inch TFT display is a color active matrix TFT LCD that uses an amorphous silicon TFT (thin film transistor) as an active switching device.
>This PCAP TFT LCD 8-inch display features a capacitive touchscreen design with cover glass that can be customized according to customer requirements.
>The color gamut typical of this 8inch TFT screen is 50% Min.45%.
>This 8-inch LCD TFT has a typical response time of 30 ms and a maximum of 35 ms.
>This 8 inch 800x600 TFT LCD display has a contrast ratio of Typ:1000 Min:800.
>This 8inch RGB TFT monitor can operate in a wide temperature range from -20 degrees to +70 degrees.
>This TN TFT LCD 7 inch is a green and environmentally friendly product, RoHS & Halogen free.
>This 8 inch capacitive touch monitor has Low driving voltage and low power consumption.
Good Quality 8inch Industrial TFT Display 800x600 Dots 24-Bit RGB 50 Pins Product Drawing
Pin Definition
Pin1-2 LEDA Back light anode
Pin3-4 LEDK Back light cathode
Pin5 GND Ground
Pin6 VCOM For external VCOM DC input
Pin7 DVDD Digital Power
Pin8 MODE DE/SYNC mode select
Pin9 DE Data ENEABLE signal
Pin10 VS Frame synchronizing signal
Pin11 HS Line synchronizing signal
Pin12-19 B7-B0 Data bus
Pin20-27 G7-G0 Data bus
Pin28-35 R7-R0 Data bus
Pin36 GND Ground
Pin37 DCLK Dot clock signal
Pin38 GND Ground
Pin39 L/R Source right or left sequence control.
Pin40 U/D Gate up or down scan control
Pin41 VGH Positive Power for TFT
Pin42 VGL Negative Power for TFT
Pin43 AVDD Analog Power
Pin44 RESETGlobal reset signal pin .Active low to enter resetstate.suggest to connecting with an RC reset circuitfor stability.normally pull high.
Pin45 NC Not connect
Pin46 VCOM For external VCOM DC input
Pin47 DITHB Dithering setting.DITH=”H” 6bit resolution;DITH=”L” 8bit resolution(default setting)
Pin48 GND Ground
Pin49 NC Not connect
Pin50 NC Not connect
