Product Details:
|
| Product: | 27 Inch Industrial TFT Display | Resolution: | 3840(H) X 2160 (V) Pixels |
|---|---|---|---|
| Surface Luminance: | 1000 Cd/m2(nits) | Interface: | EDP Interface |
| Pin Number: | 30pins | Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 630.0(H) X368.2 (V)x20.98(T) (mm) | Active Area: | 596.736(H) X 335.664 (V) (mm) |
| Touch Screen: | CTP Optional | Surface Treatment: | Hard Coating(3H), Haze 25% |
| Color Depth: | 1.07 B (8bit+A-FRC) | Connection: | ZIF |
| Vsync Frequency: | 60HZ | Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ | Backlight: | Long Side, 2-LED Lighting Bar Type |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 3840x2160 Medical TFT Display,Medical TFT Display 1000nits,EDP Interface Industrial TFT Display |
||
27 Inch 4K Color Industrial/Medical TFT Display 3840x2160 60HZ EDP Interface 1000nits Product Introduction
The SFTO2700B-7125AN industrial TFT display has a 27-inch diagonal measurement active area with UHD resolution (3840 horizontal x 2160 vertical pixel array). Each pixel is divided into red, green, and blue dots, arranged in vertical stripes, and the module can display 1.07B colors. The TFT-LCD panel used in this module is suitable for both low-reflection and high-color types. This industrial-grade TFT LCD display module supports eDP interface. This TFT LCD display operates at 11V (max) with a Vdd of 9V to 11V.
The SFTO2700B-7125AN is designed with a capacitive touch screen, and single-touch and multi-touch options are available. This TFT LCD module has a brightness of 1000cd/m2. TFT touch LCD SFTO2700B-7125AN is in good quality condition. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminals, HMIs, home automation, security systems, etc.
Features
This 27-inch industrial/medical TFT LCD can be displayed in reverse, landscape, and portrait orientation.
This 27-inch TFT LCD display supports a Type 4-channel eDP interface with a link rate of 5.4Gbps
This 27-inch LCD touchscreen display features vivid colors and excellent color saturation with 10-bit (8bit+A-FRC) color depth and a 1.07B color display
This 27-inch IPS LCD display has a built-in edge-type backlight (LED),
This 27-inch EDP monitor is compatible with NTSC90% and sRGB match rate of 98% (standard) and area ratio of 105% (standard)
This high-brightness 27-inch TFT product features 1000 nits of high brightness and high contrast ratio (Crab:1000), low reflections, and wide viewing angles
This 27-inch sunlight-readable TFT display is eco-friendly and RoHS/halogen-free
This 27-inch TFT screen can be gamma corrected
| Product: | 27 Inch Industrial TFT Display |
| Resolution: | 3840(H) X 2160 (V) Pixels |
| Surface Luminance: | 1000 Cd/m2(nits) |
| Interface: | EDP Interface |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Pin Number: | 30pins |
| Outline Dim.: | 630.0(H) X368.2 (V)x20.98(T) (mm) |
| Active Area: | 596.736(H) X 335.664 (V) (mm) |
| Surface Treatment: | Hard Coating(3H), Haze 25% |
| Connection: | ZIF |
| Touch Screen: | CTP Optional |
| Color Depth: | 1.07 B (8bit+A-FRC) |
| Vsync Frequency: | 60HZ |
| Storage Temp.: | -30℃ To +80℃ |
| Operating Temp.: | -20℃ To +70℃ |
| Backlight: | Long Side, 2-LED Lighting Bar Type |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
27 Inch 4K Color Industrial/Medical TFT Display 3840x2160 60HZ EDP Interface 1000nits Product Drawing
LCD Module Electrical Specifications
Backlight Unit Specifications
LCD Module Optical Specifications

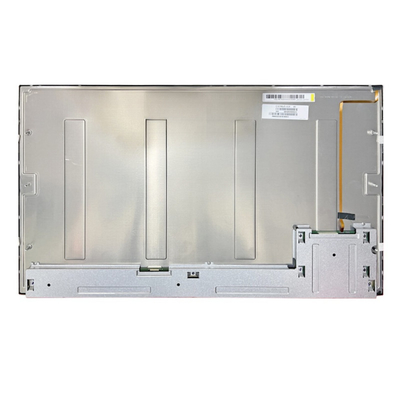

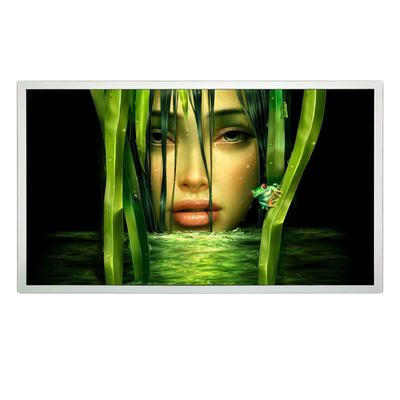

27 Inch 4K Color Industrial/Medical TFT Display 3840x2160 60HZ EDP Interface 1000nits Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected capacitive (PCAP) touch technology provides fast and responsive response and professional-grade reliability. Saef Technology's projected capacitive touchscreens are designed for rigorous industrial, medical, and automotive applications. We can also combine PCAP touchscreens with liquid crystal displays (LCDs), an integrated embedded solution that helps streamline supply chains and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
