Product Details:
|
| Product: | 4 Inch TFT Square Display | Resolution: | 480*480 |
|---|---|---|---|
| Touch Screen: | With CTP | Cover Glass Dimension: | Customizable |
| Viewing Direction: | All Viewing Angle, IPS | Outline Dimension: | 84.0 X 84.0 X 3.05 Mm |
| Active Area: | 70.18x71.86 Mm | Interface: | RGB+SPI ( MIPI Interface Optional) |
| Pin Number: | 40 Pins ( Customizable ) | Connection: | Plugging ( Can Be Customized ) |
| Surface Luminance: | 420 Cd/m2(nits) Typical | LED Lifetime: | 40,000 Hours |
| Touch Interface: | IIC | Compliance: | REACH & RoHS Compliant & Halogen Free |
| Highlight: | 4 Inch Industrial TFT Display,40 Pins Industrial TFT Display,Home Automation Industrial TFT Display |
||
** Datasheet Download **
SFTC400B-8951ACT Specification .pdf <with Capacitive Touchscreen>
SFTC400B-8951AN Specification .pdf <without Touchscreen>
4" inch PCAP RGB TFT LCD, Square TFT Module 4 inch Industrial TFT Display Product Description
SF-TC400B-8951A-N is a 4 inch Square IPS TFT-LCD display module; made of resolution 480 x 480 pixels. SF-TC400B-8951A-N TFT lcd module supports RGB SPI Serial interface, it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 4200 nits (typical value), glare surface panel, aspect ration 1:1.
SF-TC400B-8951A-N LCD display integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. WF40E module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
SF-TC400B-8951A-CT is 4 inch industrial Dispaly with CTP version.
| Product: | 4 Inch TFT Square Display | Resolution: | 480*480 |
|---|---|---|---|
| Touch Screen: | With CTP | Cover Glass Dimension: | Customizable |
| Viewing Direction: | All Viewing Angle, IPS | Outline Dimension: | 84.0 X 84.0 X 3.05 (mm) |
| Active Area: | 70.18x71.86 (mm) | Interface: | RGB+SPI ( MIPI Interface Optional) |
| Pin Number: | 40 Pins ( Customizable ) | Connection: | Plugging ( Can Be Customized ) |
| Surface Luminance: | 420 Cd/m2(nits) Typical | LED Lifetime: | 40,000 Hours |
| Touch Interface: | IIC | Compliance: | REACH & RoHS Compliant & Halogen Free |
4" inch PCAP TFT LCD, Square TFT Module 4 inch Drawing
Pin Difinition

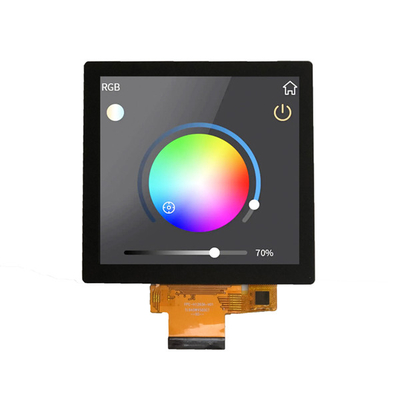

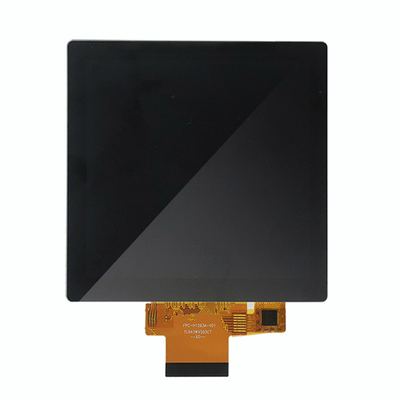

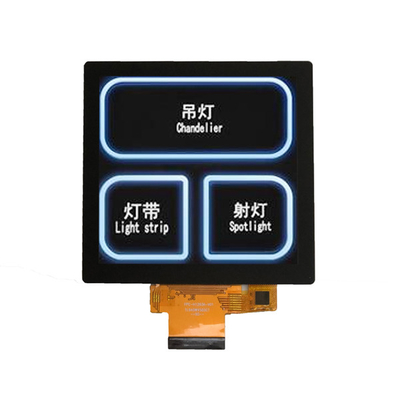

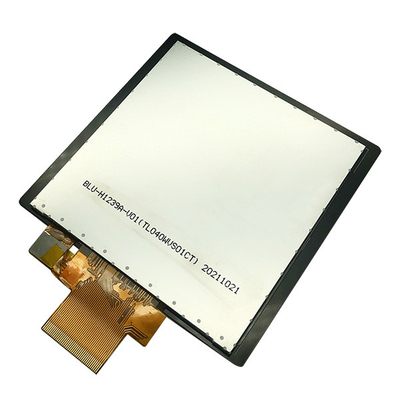

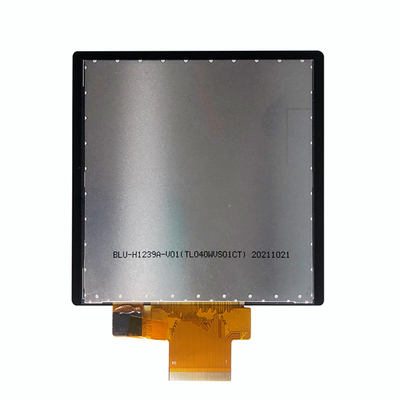

4" inch PCAP TFT LCD, Square TFT Module 4 inch Drawing Real Product Image
Square type Industrial TFT Display
As an important means of information interaction, SAEF Technology industrial TFT display can deliver complex and rich human-computer interaction data, traditional color screen display is often used in instrumentation, air conditioning panels, smart homes, automotive dashboards and other human-computer interaction interface display scenes, through rich colors, vivid image form to display the operating parameters of the product, with high resolution, low latency, screen information diversification, low power consumption and other characteristics, the screen size is usually 2-7 inches, for which higher performance MCU is required, such as M3/ M4 high frequency core, with hardware decoding, independent video memory, and a complete set of development environment to achieve color screen driver.
Recently, due to the popularity of small-size serial screens, consumer products have gradually chosen color screen displays, such as 4inch small color screens widely used in various application.
SAEF technology's micro color screen driver display solution connects to the TFT screen through the SPI interface, and provides a complete reference code for the screen drive; Large-capacity image and video data can be stored by external SPI FLASH to achieve a complete solution for color screen animation.
