Product Details:
|
| Product: | 3.5 Inch TFT PCAP Touch Screen | Resolution: | 320x480 Pixels |
|---|---|---|---|
| Viewing Direction: | 12:00 | Touch Screen: | With Capacitive Touch Screen (Optional) |
| Interface: | MCU Interface | Pin Number: | 39 Pins ( Customizable ) |
| Connection: | Plugging ( Customizable ) | Surface Luminance: | 400 Cd/m2 (can Be Customized) |
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | 8 Bit RGB TFT LCD Display,320x480 LCD Panel |
||
320x480 3.5 inch HVGA MCU PCAP Touch TFT Display, 8 Bit RGB TFT LCD Display 320x480 LCD Panel Product Description
SAEF TECHNOLOGY SF-TC350H-9496G-CT is a portrait 3.5 inch full color TFT-LCD display with 320x480 resolution (320 horizontal by 480 vertical pixels array). module surface brightness 400 cd/m2 (typical value) for the application requiring brighter backlighting, pls contact our sales. the surface brightness can be customized to be 1000 cd/m2. SF-TC350H-9496G-CT can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. SF-TC350H-9496G-CT supply voltage (VCC) of driving LCD panel is from is 2.6V to 3.3V, typical voltage is 2.8V. and supporting MCU 18bits and 16bits interface. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful imageis.
SAEF 3.5-inch TFT-LCM LCD module, using 320*480 resolution IPS full-viewing angle TFT Panel, viewing angle range in all directions reaches 85 degrees, equipped with a capacitive touch screen with a surface hardness of 6H, capacitive touch screen and TFT adopt full lamination process to reduce the distortion of color under sunlight, and the surface of the capacitive touch screen is treated with anti-fingerprint AF Coating to reduce the retention of fingerprints and dust on the surface and ensure the cleanliness of the LCD module during use. With a life span of 50,000 hours, the module are widely used for communications, household appliances, industrial control, medical equipment, POS machine, instruments and meters, automotive, electricity meter, GPS navigation, digital photo frame, tablet PC, financial equipment, consumer equipment, information appliances, cultural&educational entertainment, attendance machine, fingerprint instrument, access control machine, stock machine, interphone, video doorbell, learning machine, reading machine and so on.
| Proroduct: | 3.5 Inch TFT PCAP Touch Screen | Resolution: | 320x480 Pixels |
|---|---|---|---|
| Viewing Direction: | 12:00 | Touch Screen: | With Capacitive Touch Screen (Optional) |
| Interface: | MCU Interface | Pin Number: | 39 Pins ( Customizable ) |
| Connection: | Plugging ( Customizable ) | Surface Luminance: | 400 Cd/m2 (can Be Customized) |
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
320x480 3.5 inch HVGA MCU PCAP Touch TFT Display, 8 Bit RGB TFT LCD Display 320x480 LCD Panel Product Drawing

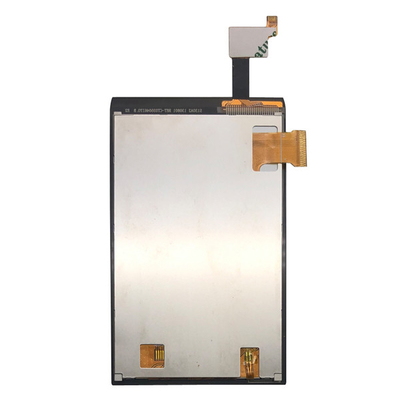

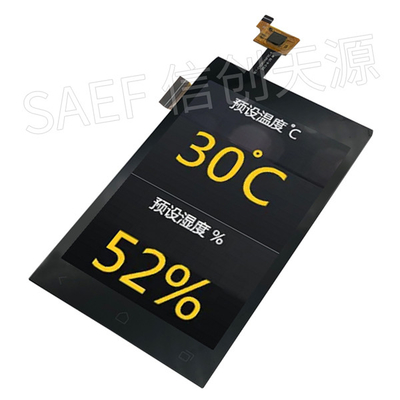

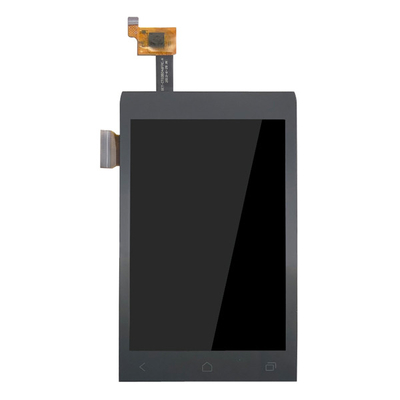

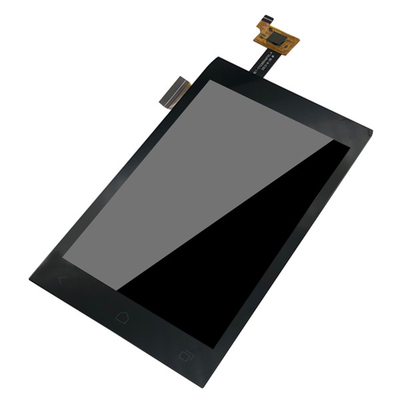

320x480 3.5 inch HVGA MCU PCAP Touch TFT Display, 8 Bit RGB TFT LCD Display 320x480 LCD Panel Product Image
Factory Facilities and Certificate
Search keyword: tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5 inch, tft display 3.5", 3.5 inch tft lcd display, 3.5" tft screen, 3.5 inch tft screen, tft screen 3.5 inch, tft screen 3.5", 3.5 inch tft lcd screen, 320x480 TFT, 3.5 inch IPS, 3.5 inch HVGA, 3.5 inch Capacitive touch TFT, ILI9488 Display
For more information of 320x480 3.5 inch HVGA MCU PCAP Touch TFT Display, pls send enquiry to ck@saef.com.cn
