Product Details:
|
| Product: | 2.4" Inch Industrial TFT Display | Resolution: | 240x320 Vertical/portrait |
|---|---|---|---|
| Driver IC: | ST7789V Or Equivalent | Touch Screen: | Resistive Touch And PCAP Optional |
| Cover Glass Dimension: | Customizable | Viewing Direction: | 12 O'clock |
| Interface: | SPI (can Be Customized） | Connection: | Plug In (Customizable） |
| Pin Number: | 10 Pins ( Customizable ） | Surface Luminance: | 300 Cd/m2(nits) |
| Outline Dim.: | 42.72x60.26x2.5 Mm | Operating Temp.: | -20℃ To +70℃ |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | ST7789V Industrial TFT Display,2.4" Industrial TFT Display,240x320 ST7789V |
||
Industrial TFT Display 2.4" Inch ST7789V SPI 240x320 Portrait For Testing Equipment And Instrument Product Introduction
SAEF TECHNOLOGY SF-TC240H-8952B-N is a 2.4-inch vertical(portrait) and active matrix TFT module with transmissive mode. Its resolution is 240x320 pixels. This 2.4-inch TFT display module has controller IC ST7789V supporting SPI interface. The brightness is 300 cd/m2 with contrast ratio 500:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.
SF-TC240H-8952B-N is a good fit for industrial application, testing equipment, automation, medical equipment, security equipment etc. The supply voltage (VCC) of driving LCD panel is from is 2.6V to 3.3V. Typical value is 2.8V. SF-TC240H-8952B-N s an TN type TFT with brightness 300 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. pls contact our sales for more details.
| Product: | 2.4" Inch Industrial TFT Display |
| Resolution: | 240x320 Vertical/portrait |
| Driver IC: | ST7789V Or Equivalent |
| Touch Screen: | Resistive Touch And PCAP Optional |
| Cover Glass Dimension: | Customizable |
| Interface: | SPI (can Be Customized) |
| Pin Number: | 10 Pins ( Customizable ) |
| Outline Dim.: | 42.72x60.26x2.5 Mm |
| Viewing Direction: | 12 O'clock |
| Connection: | Plug In (Customizable) |
| Surface Luminance: | 300 Cd/m2(nits) |
| Operating Temp.: | -20℃ To +70℃ |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
Industrial TFT Display 2.4" Inch ST7789V SPI 240x320 Portrait For Testing Equipment And Instrument Product Drawing

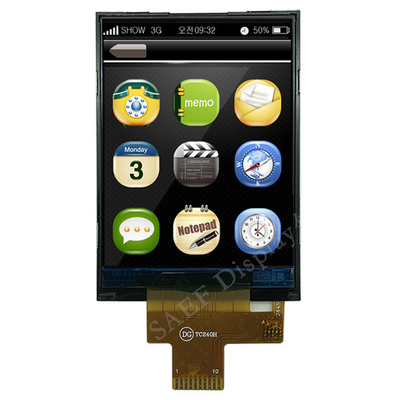

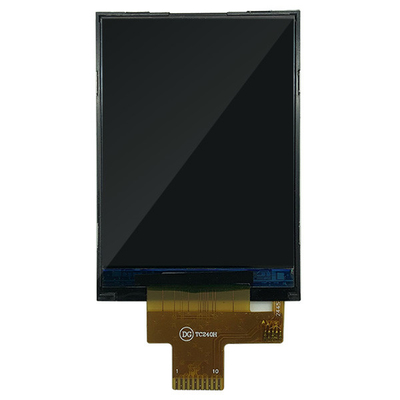

Industrial TFT Display 2.4" Inch ST7789V SPI 240x320 Portrait For Testing Equipment And Instrument Product Image
Factory Facilities and Certifications
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF
technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency;
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Contact Us
We love to hear about your projects, If you have any questions, we can be reached at sales2@saef.com.cn
