2.8 Inch QVGA 240x320 Dots Resolution Industrial TFT Display Module Portrait Mode IPS Full Viewing Angle

Large Image : 2.8 Inch QVGA 240x320 Dots Resolution Industrial TFT Display Module Portrait Mode IPS Full Viewing Angle

Product Details:

Place of Origin:	ShenZhen / China
Brand Name:	SAEF
Certification:	ISO9001 / ISO14000
Model Number:	SF-TC280B-8953A-N

Payment & Shipping Terms:

Minimum Order Quantity:	3 pcs
Price:	Negotiable based on order lot quantity
Packaging Details:	Standard Exportation Package
Delivery Time:	3-5 weeks
Payment Terms:	L/C, , T/T, Western Union
Supply Ability:	3000K pcs per month

Contact Now

2.8 Inch QVGA 240x320 Dots Resolution Industrial TFT Display Module Portrait Mode IPS Full Viewing Angle

Description

Product:	2.8" TFT LCD	Touch Screen:	Without Touch Screen
Resolution:	240x320 QVGA	Viewing Direction:	Free(80/80/80/80)
Interface:	SPI+RGB	Pin Number:	45 Pins
Connection:	Plugging (customizable）	Surface Luminance:	200 Cd/m2
LED Lifetime:	40,000 Hours
Highlight:	Industrial TFT Display Module ISO14000 , Industrial TFT Display 2.8 Inch , IPS TFT Display Module

SF-TC280B-8953A-N is a 2.8 inch portrait mode IPS full viewing angle TFT LCD Display Module.

Products Description:

Its resolution is 240x320 pixels, QVGA.
SF-TC280B-8953A-N lcd module is built-in with ILI9341V IC.
It supports 3-Wire SPI+RGB(18Bit) interface. Its operating voltage(Vdd) range from 1.6V to 3.3V, typical value 2.8V.
SF-TC280B-8953A-N is Portrait mode TFT LCD display, featured with brightness 200 nits (typical value). If you would like to use it as landscape mode or increase the brightness, please contact with us for more technical support.
SF-TC280B-8953A-N can be operated at temperatures from -20°C to +70°C, its storage temperatures range from -30°C to +80°C.
SF-TC280B-8953A-N is ideal for signal analyzers, bench top laboratory equipment, security system, home automation, mini audio player, baby monitor, and other handhold devices.

Quality assurance

For every piece, we have 3 times 100% test to ensure good quality.
The QA manager has been in the LCD industry for more than 14 years. The key manufacturing and QA operators have been in the LCD industry for more than 7-8 years. Our team are all very professional and experienced in the LCD filed to ensure quality for customers.
All the defects can be returned and replaced.
All products are ROHS compliant.

FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. Then you can place us the order.For designing or further discussion, it is better to contact us by email / whatsapp/ phone for more clear and accurate LCD solution proposal for you. .
2. What kind of display we provide?
We have TFT color LCD display module, monochrome lcd module, OLED lcd module, lcd module with digital frame, Android Tablet, etc. We support both indoor and outdoor applications, industrial and commercial applications.
We also support standard solutions and customized design solutions.
We have off-shelf and design-in products to provide customer with one-stop solutions.
3. How about the warranty ?
We have 1 year warranty. All the defects can be returned and replaced.
4. What is your terms of delivery?
We accept EXW, FOB, FCA, etc. You can choose the one which is the most convenient or cost effective for you.

Product:	2.8 Inch TFT Display	Touch Screen:	Without Touch Panel
Resolution:	240*320	Cover Glass Dimension:	Customizable
Viewing Direction:	All	Interface:	3-Wire SPI+RGB(18Bit)
Pin Number:	45 Pins	Connection:	FPC
Surface Luminance:	200 Cd/m2	LED Lifetime:	40,000 Hours

2.8 inch Portrait Mode IPS LCD Drawing
2.8 Inch QVGA 240x320 Dots Resolution Industrial TFT Display Module Portrait Mode IPS Full Viewing Angle 0

2.8 Inch QVGA 240x320 Dots Resolution Industrial TFT Display Module Portrait Mode IPS Full Viewing Angle 2

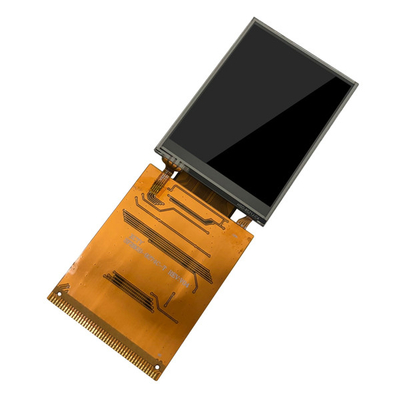

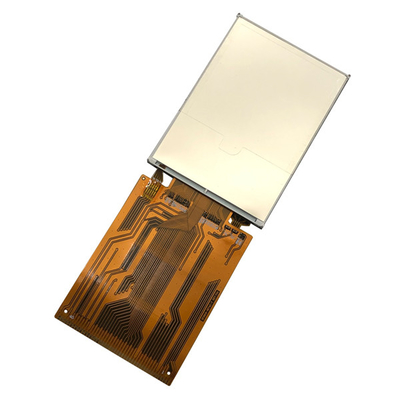

2.8 inch Portrait Mode IPS LCD Real Product Image

2.8 Inch QVGA 240x320 Dots Resolution Industrial TFT Display Module Portrait Mode IPS Full Viewing Angle 3

SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN

SIZE	DETAILS	OUR P/N
2.8 inch	240*320 TN type TFT lcd without touch(RGB+MCU interface), with ILI9341V driver IC	SF-TC280P-9413B-N
2.8 inch	240*320 TN type TFT lcd with resistive touch panel (RGB+MCU interface), with ILI9341V driver IC	SF-TC280P-9413B-T
2.8 inch	240*320 TN type TFT lcd with resistive touch panel (RGB interface), with ST7789V driver IC	SF-TC280T-8616A-T
2.8 inch	240*320 TN type TFT lcd without touch(SPI interface), with ILI9341V driver IC	SF-TC280P-8722B-N
2.8 inch	240*320 IPS full viewing angle TFT lcd with resistive touch panel, 3-Wire SPI+RGB(18Bit) interface, with ILI9341V driver IC	SF-TC280B-8953A-T
2.8 inch	240*320 IPS full viewing angle TFT lcd without touch, MCU/SPI/RGB interface, with ILI9341V driver IC	SF-TC280B-9750B-N
2.8 inch	240*320 IPS full viewing angle TFT lcd with CTP, MCU interface, with ILI9341V driver IC	SF-TC280B-8518A-CT
