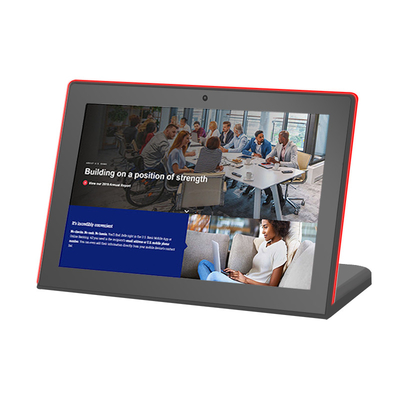

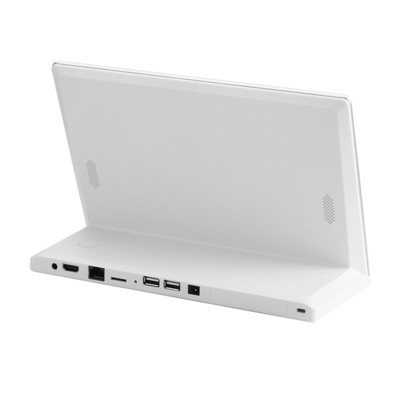

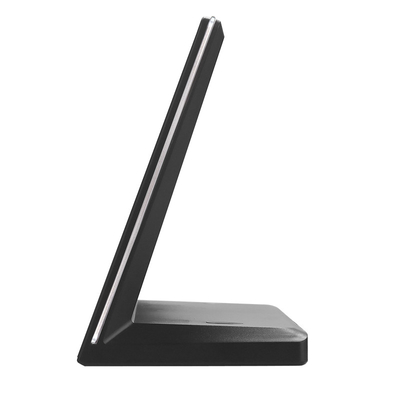

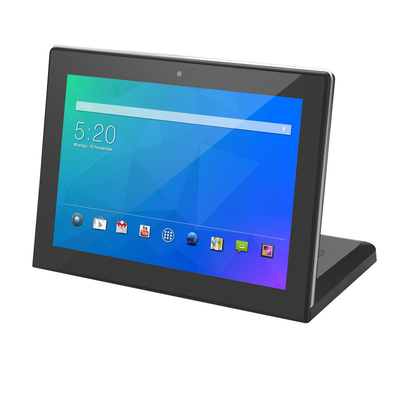

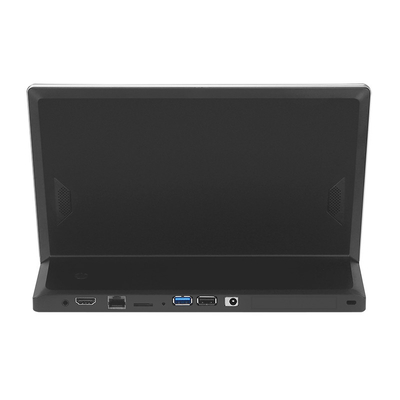

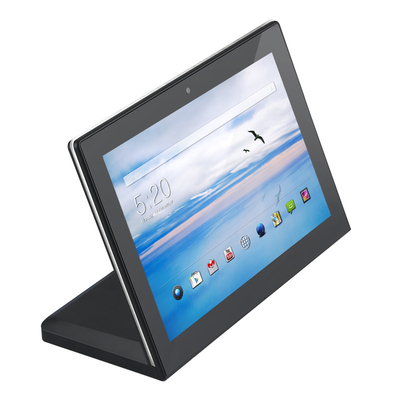

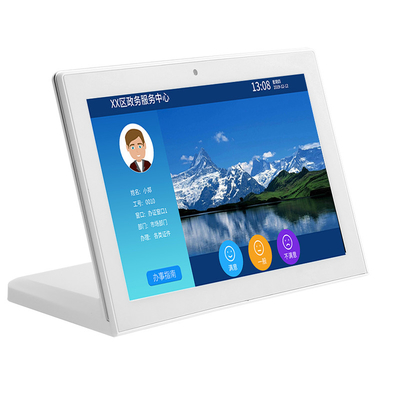

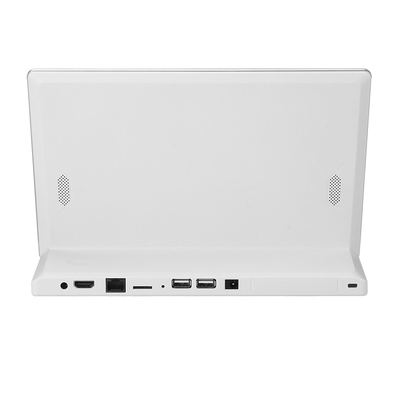

Large Image :  10.1 Inch L Shape Rk3568 LCD Touch Screen Display For POS System Tablet Android 11 Advertising Players Based On Customer Feedback

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: LR102T-3568
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

10.1 Inch L Shape Rk3568 LCD Touch Screen Display For POS System Tablet Android 11 Advertising Players Based On Customer Feedback

Description
Product: 10.1 Inch Android Touch Screen Display Resolution: 1280×800
Brightness: 300 Cdm2 Display Area: 219×137mm
CPU: A55 Quad Core Processor RAM: 1GB
ROM: 16GB System: Android 11
WIFI: 802.11b/g/n Wireless Keyboard: Support
Bluetooth: BT 4.2 Camera: Standard 2MP
Software: Free Installation Applications Adapter: DC 12V/2A-IN
Highlight:

10.1 Inch LCD Touch Screen Display

,

Android 11 LCD Touch Screen Display

,

Rk3568 LCD Touch Screen Display

10.1-inch L-shaped Desktop Android Touchscreen Display LR102T - 3568: Unleashing Unrivaled Performance and Versatility



In the dynamic landscapes of commercial and industrial arenas, the 10.1 - inch L - shaped desktop Android touchscreen display LR102T - 3568 stands as a paragon of innovation and functionality. Engineered to redefine user experiences, this device seamlessly blends cutting - edge technology with practical design.

1. Stunning Visual Performance

  • High - Resolution Display: At its core is a 10.1 - inch TFT LCD screen, boasting a sharp 1280x800 - pixel resolution. Every detail comes to life with vivid clarity, whether it's product images in a retail setting or complex data visualizations in industrial control. This high - definition display ensures that users are presented with an immersive visual experience, making information absorption and interaction a breeze.
  • Smooth Touch Interaction: The capacitive touch - screen technology is a game - changer. Supporting multi - touch gestures, it offers lightning - fast response times. From pinch - to - zoom operations for image viewing to quick - swipe navigation through applications, the touchscreen provides a fluid and precise interaction, elevating user productivity.

2. Robust Hardware Configuration

  • Powerful Processor: Equipped with a high - performance quad - core 1.6GHz processor, the LR102T - 3568 is a powerhouse. It effortlessly handles multitasking, allowing users to run multiple applications simultaneously without a hitch. Whether it's managing inventory in a retail store while also handling customer inquiries or running complex industrial control algorithms, this device can keep up with the demands.
  • Ample Memory and Storage: With 4GB of RAM and 16GB of internal storage (expandable via the TF card slot), the device has enough space to store a plethora of applications, data, and media. The generous memory ensures smooth operation, even when dealing with resource - intensive tasks.
  • Rich Connectivity Options: It comes with a comprehensive set of interfaces. The RJ45 network interface offers stable wired network connections, perfect for high - speed data transfer in industrial settings or reliable operation in busy commercial environments. Complemented by WIFI and Bluetooth functions, it enables seamless wireless data transmission and device pairing, adding to its versatility. Additionally, multiple USB ports and an HDMI port make it easy to connect various peripherals, such as keyboards, mice, external monitors, and printers.

3. Intelligent Operating System

  • Android - Powered: Running on Android, with versions starting from Android 10 or higher, the device offers seamless compatibility with 99% of industry - standard application software. This allows businesses to integrate their existing software ecosystems with ease. Moreover, it supports the installation of self - designed APK programs, enabling companies to develop and deploy customized applications tailored to their specific needs.

4. Integrated Multimedia Features

  • Built - in Camera and Microphone: The integrated camera and microphone, capable of 1080P video calls, make it an ideal choice for applications that require remote communication. In the medical field, it can be used for telemedicine consultations; in corporate settings, it enables seamless video conferencing and remote collaboration, breaking down geographical barriers.

5. Versatile Application Scenarios

  • Retail and Catering: In retail stores, it serves as an interactive kiosk for product information display, self - checkout systems, and inventory management. In the catering industry, it can be used as a digital menu board, order - taking terminal, and kitchen display system, streamlining operations and enhancing the customer experience.
  • Hospitality: Hotels can utilize it for check - in/check - out processes, in - room information systems, and concierge services. It provides guests with a convenient and modern way to access information and services.
  • Medical: In medical facilities, it can be used for patient registration, electronic medical record access, and telemedicine. The high - definition display and touch - screen functionality make it easy for medical staff to input and retrieve patient information accurately.
  • Industrial Control: In industrial settings, it functions as a control panel for monitoring and managing industrial processes. Its rugged design and stable performance ensure reliable operation in harsh industrial environments.

6. Durability and Customization

  • Industrial - Grade Durability: Designed with industrial environments in mind, the product features anti - drying, dustproof, and waterproof capabilities. This ensures long - term stable operation, even in challenging conditions, reducing maintenance costs and downtime.
  • Customized Services: Recognizing the diverse needs of customers, some suppliers offer customized services. This includes customizing the shell borders and touchscreens, allowing businesses to create a unique device that aligns with their brand identity and specific requirements.



In conclusion, the 10.1 - inch L - shaped desktop Android touchscreen display LR102T - 3568 is not just a display device; it's a comprehensive solution that combines high - end performance, intelligent features, and adaptability to various application scenarios. It's the go - to choice for businesses looking to enhance their operations and provide exceptional user experiences.





Features



Display Screen 10.1 inch IPS screen
Resolution 1280×800
Brightness 300 cdm2
Contrast 1000:1
Screen scale/Display area 16:10/ Display area : 219×137mm
Configuration CPU Rockchip RK3568 quad core A55 processor, clocked 2.0GHz
RAM 2GB
ROM 16GB
System Android 11 system
Network WIFI 802.11b/g/n
Ethernet Supports connection to the RJ45 network interface
Bluetooth BT 4.2
3G/4G Support external 3G/4G USB dongle
Jack TF 1×TF card slots (max support 32GB)
USB 2.0 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 1×RJ45 network interface
Earphone 1×3.5mm headphone jack
HDMI out 1xHDMI out
Power 1×5.5x2.1mm power DC jack
Multi-Media Video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
Picture JPEG,JPG
Other parameters Wireless mouse keyboard Support
Speaker 2×2W speakers
Camera Standard 2.0MP pixel camera (5.0MP pixel camera optional)
OSD language Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Software support Free installation applications (maps, games, e-mail, self developing apps, etc.)
Attachment Adapter One, specifications: 12V/2A
User's Manual One



Product Size and Weight



Body Size Color Box 10pcs/Carton
Length Width Thickness Length Width Height Length Width Height
260 178 109 290 208 135 690 425 290
N.W: 0.8KG 1.3KG N.W:13KG G.W:13KG

unit: mm
