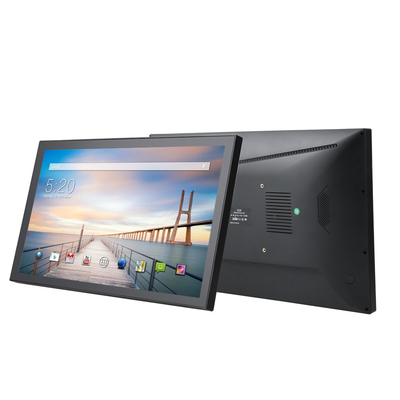

18.5 Inch Android LCD Monitor KR3566 1920x1080 IPS Display POE With Android 11 OS Product Introduction
18.5-inch Multifunctional Android Device: An Intelligent Terminal Meeting Diverse Needs
Product Overview
This 18.5-inch device is a remarkable blend of multiple functions, integrating the features of Android Tablet, Tablet PC, Android LCD Monitor, Industrial Tablet, POE Tablet, Digital Signage, Android Tablet PC, Android Touch Screen Display, Android Touch Screen Monitor, All In One, and Wall Monitor. It stands out as a high - performance intelligent device, ready to transform various applications.
Display Performance
Equipped with an IPS panel high - definition full - view screen, it offers a base resolution of 1366×768, with an optional upgrade to 1920x1080. The ultra - wide viewing angles of 85/85/85/85 (L/R/U/D) ensure clear visibility from almost any position. With a brightness of 300 cd/m², a contrast ratio of 1000:1, and a 16:9 screen ratio with a display area of 409×229mm, it vividly presents both static images and dynamic videos, delivering an immersive visual experience.
Core Configuration
Powered by the Rockchip RK3568 quad - core 64 - bit Cortex - A55 processor, this device runs with exceptional smoothness. It comes with 2GB of RAM (upgradable to 4GB) and 16GB of internal storage (upgradable to 32GB). Operating on the Android 11/13 operating system and supporting 10 - point capacitive touch, it provides a highly responsive and convenient user operation.
Network and Interfaces
It supports 802.11b/g/n WIFI, 100M Ethernet (upgradable to 1000M), and Bluetooth 5.2. 4G/5G cellular networks are also available as options. Boasting a rich array of interfaces, it includes a TF card slot, 1×USB 2.0, 1×USB 3.0, an RJ45 Ethernet interface (with optional POE function), 1×3.5mm headphone jack, 1xHDMI output interface, and a DC power input interface, enabling seamless connectivity with various peripherals.
Multimedia and Other Functions
The device supports a wide range of video formats such as MPEG - 1, MPEG - 2, MPEG - 4, H.263, H.264, RV, etc. (with a maximum support of 1080P), audio formats like MP3, WMA, AAC, and image formats JPEG and JPG. A microphone can be optionally added, and it has built - in 2×3W speakers. Without a camera, it focuses on its core functions. With an operating temperature range of 0 - 50℃, multi - language OSD support, and certifications like 3C, FCC, CE, and ROHS, it ensures reliable performance and quality.
Application Scenarios
Ideal for digital signage displays, industrial control, commercial office meetings, and education and training scenarios, it can be wall - mounted as a Wall Monitor. This device offers efficient and intelligent solutions for different industries, adapting to various work and usage requirements.
Product Information
| Display |
Panel |
18.5" high-definition full view screen |
| Resolution |
1920x1080 |
| Viewing angle |
IPS Screen 85/85/85/85(L/R/U/D) |
| Brightness |
300 cd/m2 |
| Contrast |
1000:1 |
| Screen scale/Display area |
16:9/ Display area : 409×229mm |
| System |
CPU |
Rockchip RK3568 Quad Core 64 bit Cortex-A55 |
| RAM |
2GB (4GB optional) |
| Internal memory |
16GB (32GB optional) |
| Operation system |
Android 11/13 OS |
| Touch screen |
No 10-Point capacitive touch |
| Network |
WIFI |
802.11b/g/n |
| Ethernet |
100M ethernet (1000M optional) |
| Bluetooth |
BT 5.2 |
| 4G/5G Cellular network |
Optional |
| Interface |
TF |
TF card slots |
| USB 2.0 |
1×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) |
| USB 3.0 |
1×USB 3.0 interface (support U disk, mouse, keyboard, printer etc) |
| RJ45 |
Ethernet interface (POE function Optional) |
| Earphone |
1×3.5mm headphone Interface |
| HDMI out |
1xHDMI out |
| Power |
DC power input (5.5x2.1) |
| Multi-Media |
Video |
Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) |
| Audio |
Support MP3, WMA, AAC and so on |
| Picture |
JPEG,JPG |
| Other parameters |
Microphone |
No |
| Speaker |
2×3W speakers |
| Camera |
No |
| Working temp |
0-50degree |
| OSD language |
Multi-language |
| Certificates |
3C,FCC,CE,ROHS etc. |
| Attachment |
Adapter |
yes, specifications: 12V/3A |
| User's Manual |
yes |
| Desktop Bracket |
No |
Product Size
| Body Size |
Color Box |
5pcs/Carton |
| Length |
Width |
Thickness |
Length |
Width |
Height |
Length |
Width |
Height |
| 447 |
267 |
41 |
502 |
429 |
87 |
515 |
450 |
445 |
| N.W |
2.76KG |
N.W |
3.46KG |
N.W |
17.3KG |
| |
|
|
|
|
|
G.W |
18.3KG |
Unit: mm
