18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port

18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port
18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port 18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port 18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port 18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port 18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port 18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port

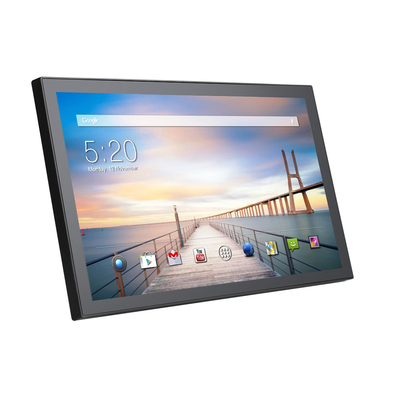

Large Image :  18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: 3C,FCC,CE,ROHS etc.
Model Number: N185N-3588
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: Negotiable based on order quantity
Packaging Details: 5pcs per carton, securely packaged.
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10k pcs per months

18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port

Description
Panel: 18.5" High-definition Full View Screen Resolution: 1366×768 (1920x1080 Optional)
Viewing Angle: 85/85/85/85(L/R/U/D) Brightness: 300 Cd/m2
Screen Scale/Display Area: 16:9/ Display Area : 409×229mm CPU: Rockchip RK3588 Eight Core 64 Bit Architecture, 4 * Cortex-A76+4 * Cortex-A55
RAM: 2GB (4GB Optional) Internal Memory: 16GB (32GB Optional)
Operation System: Android 12 OS Touch Screen: 10-Point Capacitive Touch (optional)
Network: WIFI,Ethernet,Bluetooth,4G/5G Cellular Network Interface: TF, USB 2.0,USB 3.0,RJ45,Earphone,HDMI Out,Power
Camera: Non Speaker: 2×3W Speakers
Adapter: 12V/3A Desktop Bracket: Non (Optional)
Microphone: Non (Optional)
Highlight:

RJ45 Port Android Tablet

,

1920x1080 Android Tablet

,

18.5 Inch Android Tablet

18.5 Inch Android Tablet Rockchip RK3588 1920x1080 IPS Display AlO POE RJ45 Port product Introduction



Superior Performance

Powered by the Rockchip RK3588 octa-core 64-bit architecture processor, with 4 Cortex-A76 cores and 4 Cortex-A55 cores, it delivers strong computing capabilities. It can handle multitasking and complex software operations smoothly. The device comes with 4GB of RAM, which can be upgraded to 8GB, and 64GB of internal storage, with an optional 128GB, meeting various storage demands.

Stunning Visual Experience

Featuring an 18.5-inch full-view high-definition screen with a resolution of 1920x1080, it presents clear and vivid images. The IPS screen offers a viewing angle of 85/85/85/85, and with a brightness of 300 cd/m², it remains visible even in strong light. The 1000:1 high contrast ratio ensures vivid colors and rich details.

Abundant Interfaces

Equipped with 1 USB 2.0 and 1 USB 3.0 interface, it allows connection to various external devices. The RJ45 Ethernet interface (POE function optional) supports 100M (upgradable to 1000M) wired network. It also has 802.11b/g/n Wi-Fi and Bluetooth 5.2 for convenient wireless connections. Additionally, there are a 3.5mm headphone jack, an HDMI out interface, and a TF card slot.

Product Advantages

Based on the Android 12 system, it has a rich application ecosystem. It fully supports common audio, video, and picture formats, providing a great multimedia experience. Certified by 3C, FCC, CE, ROHS, etc., it ensures reliable quality. It comes with a 12V/3A adapter and a user manual.

Diverse Applications

Suitable for industrial equipment monitoring and data collection to facilitate automated production. It can be used as e-price tags and self-checkout devices to enhance retail efficiency. It's applicable for information display in shopping malls, hotels, etc. In the education field, it supports multimedia teaching. It can also be used for data display and operation control of medical equipment.

Product Introduction
Display Panel 18.5" high-definition full view screen
Resolution 1920x1080
Viewing angle IPS Screen 85/85/85/85(L/R/U/D)
Brightness 300 cd/m2
Contrast 1000:1
Screen scale/Display area 16:9/ Display area : 409×229mm
System CPU Rockchip RK3588 Eight core 64 bit architecture, 4 * Cortex-A76+4 * Cortex-A55
RAM 4GB (8GB optional)
Internal memory 64GB (128GB optional)
Operation system Android 12 OS
Touch screen No 10-Point capacitive touch
Network WIFI 802.11b/g/n
Ethernet 100M ethernet (1000M optional)
Bluetooth BT 5.2
4G/5G Cellular network Optional
Interface TF TF card slots
USB 2.0 1×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
USB 3.0 1×USB 3.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 Ethernet interface (POE function Optional)
Earphone 1×3.5mm headphone Interface
HDMI out 1xHDMI out
Power DC power input (5.5x2.1)
Multi-Media Video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
Picture JPEG,JPG
Other parameters Microphone No
Speaker 2×3W speakers
Camera No
Working temp 0-50degree
OSD language Multi-language
Certificates 3C,FCC,CE,ROHS etc.
Attachment Adapter yes, specifications: 12V/3A
User's Manual yes
Desktop Bracket No


Product Size

Body Size Color Box 5pcs/Carton
Length Width Thickness Length Width Height Length Width Height
447 267 41 502 429 87 515 450 445
N.W 2.76KG N.W 3.46KG N.W 17.3KG
            G.W 18.3KG
Unit: mm
