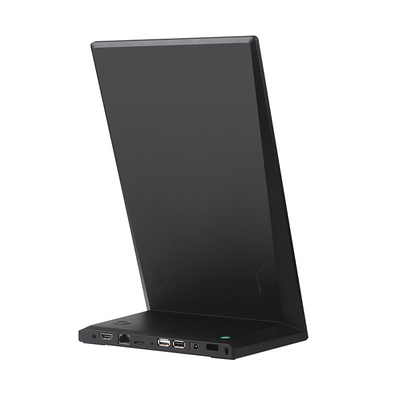

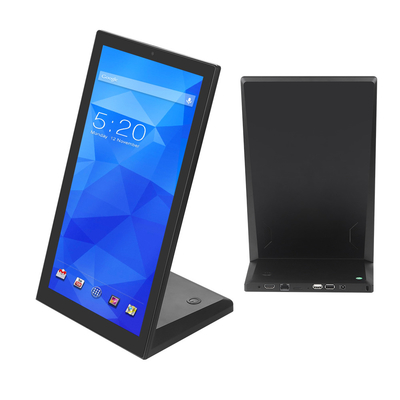

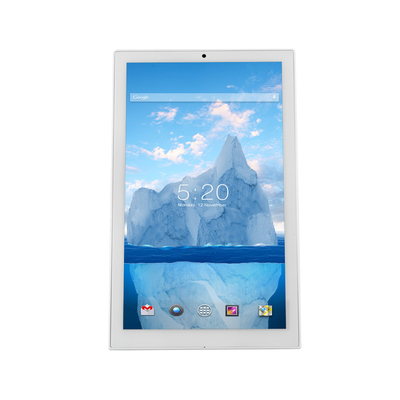

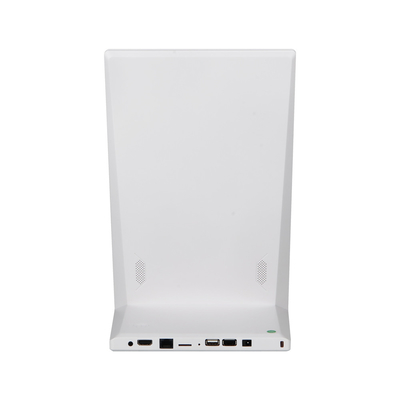

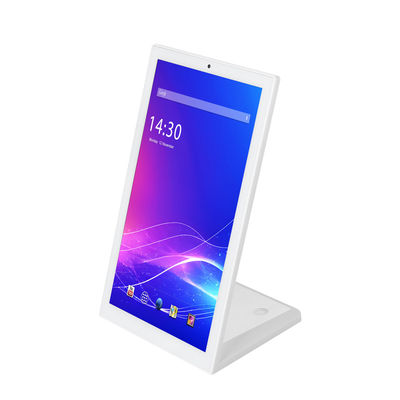

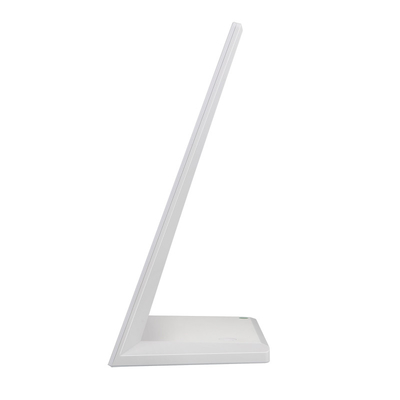

L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar

L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar
L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar
L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar

Large Image :  L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: LS140T-3566
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar

Description
Product: 14" Android Touch Screen Display Resolution: 1080*1920 Dots
Brightness: 300 Cdm2 Display Area: 175.8×311.6mm (16:9)
CPU: RK3566 RAM: 2GB
ROM: 16GB System: Android 11/13 OS
WIFI: 802.11b/g/n Multi-Media: Video/Audio/Picture
Speaker: 2×2W Speakers Camera: Standard 200W Pixel Camera
Adapter: One, 12V/2A POE: Optional
Highlight:

RJ45 Android Touch Screen Display

,

14 Inch Android Touch Screen Display

,

RK3566 Android Touch Screen Display

About this item LS140T-3566 L-Shaped 14-Inch Portrait Android Touch Display

  • Unique Design: Adopts an L-shaped desktop design, which is fashionable and novel. The 14-inch touch screen is paired with an LED light bar to increase visual appeal.
  • High-performance Configuration:
    • Equipped with the RK3566 processor, which has strong performance and runs smoothly.
    • Optional storage combinations of 2G+16G or 4G+32G to meet different usage needs.
    • Equipped with the Android 11/13 system, providing rich applications and a convenient operating experience.
  • Multifunctional Features:
    • Supports NFC function for convenient near-field communication and data transmission.
    • A 2MP front camera for video calls, taking photos, and more.
    • Rich interfaces including 1xTF card interface, 1×USB2.0 interface, 1xUSB3.0 interface, 1xRJ45 network interface, 1×3.5mm headphone jack, 1xHDMI output interface, and 1×5.5x2.1mm power DC jack to meet various connection needs.
  • High-definition Display: The touch screen presents a clear and vivid picture, bringing a high-quality visual experience to users.
  • Strong Stability: After strict testing, it has good stability and reliability and is suitable for various commercial and office environments.
Applicable Scenarios:



  • Commercial advertising display: Can be used in shopping malls, supermarkets, stores and other places to display product information, promotional activities, etc., attracting customer attention.
  • Office applications: As an office device, it can be used for document processing, email sending and receiving, video conferences, etc., improving work efficiency.
  • Education and training: Suitable for schools, training institutions, etc., as a teaching tool to display teaching content and conduct interactive teaching.
  • Home entertainment: Can be used for home entertainment such as watching videos, playing games, browsing the web, etc., meeting the various needs of home users.



In short, the L Shape Desktop 14 Inch 11 Android Touch Screen Display with Led Light Bar and NFC, with its unique design, high-performance configuration, multifunctional features and high-definition display, has become an excellent touch screen display device suitable for various scenarios such as business, office and home.



Features



Display Screen 14 inch IPS screen
Resolution 1080x1920
Brightness 300 cdm2
Contrast 1000:1
Screen scale/Display area 16:9/ Display area : 175.8×311.6mm
Configuration CPU Rockchip RK3566 quad core A55 processor, clocked 2.0GHz
RAM 2/4GB
ROM 16/32GB
System Android 11/13 system
Network WIFI 802.11b/g/n
Ethernet Supports connection to the RJ45 network interface
Bluetooth BT 4.2
3G/4G Support external 3G/4G USB dongle
Jack TF 1×TF card slots (max support 32GB)
USB 2.0 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 1×RJ45 network interface
Earphone 1×3.5mm headphone jack
HDMI out 1xHDMI out
Power 1×5.5x2.1mm power DC jack
Multi-Media Video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
Picture JPEG,JPG
Other parameters Wireless mouse keyboard Support
Speaker 2×2W speakers
Camera Standard 2.0MP pixel camera (5.0MP pixel camera optional)
OSD language Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Software support Free installation applications (maps, games, e-mail, self developing apps, etc.)
Attachment Adapter One, specifications: 12V/2A
User's Manual One





Package



Body Size Color Box 6pcs/Carton
Length Width Thickness Length Width Height Length Width Height
345 205 116 395 170 255 780 405 275
N.W 1.18KG N.W 1.73KG N.W 10.4KG



Unit: mm





Mechanical Outline Drawing



L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar 0

Product Details



L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar 1L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar 2

L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar 3L Shaped Desktop Touch Screen Monitor RK3566 Android 11OS Tablet PC With wifi POE LED Light Bar 4
