Product Details:
|
| Product: | 10.1" Android Intelligent Central Control Screen | Resolution: | 1280x800 Dots |
|---|---|---|---|
| Brightness: | 300 Cdm2 | Display Area: | 215×135mm (16:10) |
| CPU: | RK3566 | RAM: | 2GB |
| ROM: | 32GB | System: | Android 11 OS |
| WIFI: | 802.11b/g/n | Multi-Media: | Video/Audio/Picture |
| Speaker: | 2×2W Speakers | Camera: | Standard 200W Pixel Camera |
| Adapter: | One, 12V/2A | POE: | Optional |
| Highlight: | WiFi Android Smart Home Control Panel,Zigbee Android Smart Home Control Panel |
||

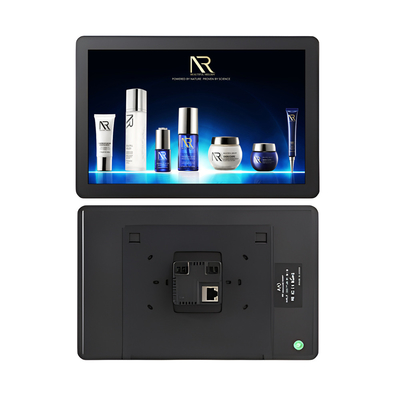

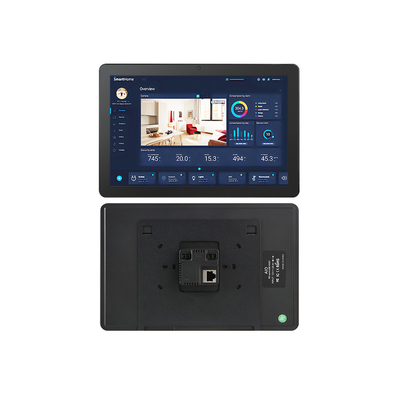

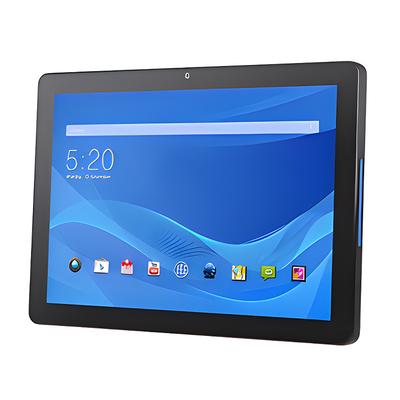

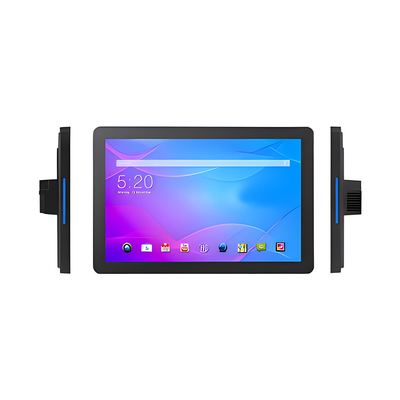

About this item 10-Inch Landscape Android Display Touch Screen SH101T-3566
I. Product Overview
This 10.1-inch landscape Android touch display screen offers an exceptional performance and a wealth of features. With a high-definition resolution of 1280*800, it is equipped with Android 11 system, 2GB of RAM and 32GB of storage capacity, meeting all your various needs.
II. Interface Introduction
1. TF interface: Allows you to expand the storage capacity easily, enabling you to store more photos, videos and documents.
2. Type-C interface: Supports fast charging and data transmission, making your usage more convenient.
3. RJ45 interface: Provides a stable wired network connection to ensure a smooth usage in a network environment.
4. RS-485 interface: Applicable in specific fields such as industrial control, enabling efficient communication between devices.
5. Power jack interface: Provides a reliable power input for the device.
III. Feature Highlights
1. Camera and Mic: Equipped with a built-in camera and microphone, facilitating video calls, taking photos and recording videos, capturing wonderful moments in life.
2. WIFI and Bluetooth: Supports wireless network connection and Bluetooth function, allowing you to easily connect various devices and enjoy wireless freedom.
3. POE power supply: Supports Power over Ethernet, eliminating the need for an additional power adapter, simplifying wiring and improving usage convenience.
4. LED RGB light: Adjustable RGB lighting creates a personalized atmosphere for you.

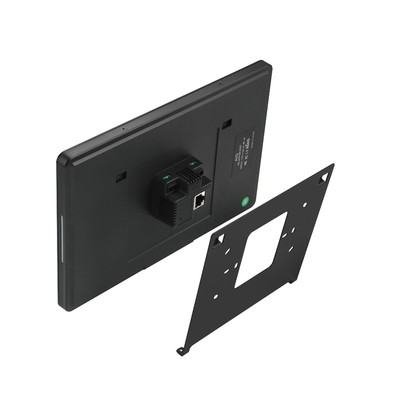

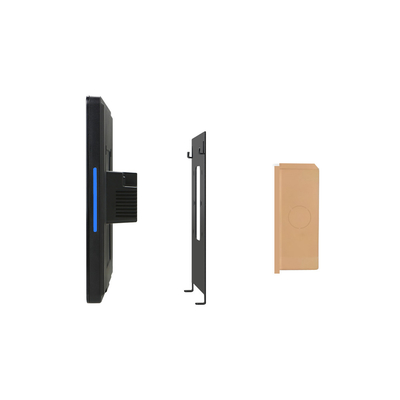

5. Wall mounted bracket: Comes with a wall-mounted bracket, making it convenient for you to install the display screen on the wall, saving space and providing a better viewing angle.
6.Smart home protocol support: Integrated with Matter and Zigbee protocols, it can seamlessly dock with a variety of smart home devices, including smart lights, smart sockets, smart curtains, etc., to build a comprehensive and intelligent home ecosystem.
7.Smart linkage: Based on the Matter and Zigbee protocols, intelligent linkage between different devices is achieved. For example, when the smoke alarm detects smoke, it will not only sound an alarm but also automatically turn on the exhaust fan and send a notification to the user, improving the safety and intelligence of the home.
IV. Applicable Scenarios
This display screen is suitable for multiple scenarios, such as smart home control centers, commercial displays, education and training. In smart homes, it can serve as an intelligent control panel to achieve centralized control of various devices. In commercial displays, it can show product information and advertising promotions. In education and training, it can be used as an electronic whiteboard to improve teaching efficiency.
In conclusion, this 10.1-inch landscape Android touch display screen, with its rich interfaces and powerful functions, will bring you a new usage experience. Whether in home, business or education fields, it is your ideal choice.
Features
| Display | Panel | 10.1" high-definition full view screen fully bonded | ||||||||||||
| Resolution | 1280×800 | |||||||||||||
| Display mode | Normally black | |||||||||||||
| Viewing angle | 85/85/85/85(L/R/U/D) | |||||||||||||
| Luminance | 300 cd/m2 | |||||||||||||
| Contrast | 1000:1 | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| System | CPU | Rockchip rk3566 quad core A55 processor, clocked 1.8G | ||||||||||||
| RAM | 2GB ( 4GB optional ) | |||||||||||||
| Internal memory | 32GB | |||||||||||||
| Operation system | Android 11 system | |||||||||||||
| Touch screen | 10-Point capacitive touch | |||||||||||||
| Network | WIFI and Bluetooth | AP6212 ( 802.11b/g/n and BT5.2 ) 【AP6256 ( 802.11a/b/g/n/ac and BT5.0 ) optional】 | ||||||||||||
| Ethernet | 100M ethernet | |||||||||||||
| Zigbee Protocol | optional | |||||||||||||
| Matter Protocol | optional | |||||||||||||
| Interface | TF | TF card slots | ||||||||||||
| Type-C | USB2.0 supports OTG functionality | |||||||||||||
| RJ45 | Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4, 25.5W ) | |||||||||||||
| RS-485 | Communicating with RS485 devices | |||||||||||||
| Power jack | DC power input | |||||||||||||
| Power jack | 12V positive and negative electrode wire interface | |||||||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc. | ||||||||||||
| Audio | MP3/WMA/AAC etc. | |||||||||||||
| Picture | JPEG | |||||||||||||
| Other parameters | Microphone | Two microphones | ||||||||||||
| Speaker | 2×2W BOX chamber horn | |||||||||||||
| LED light strip | RGB | |||||||||||||
| Camera | 2MP from a conventional perspective | |||||||||||||
| Working temp | 0-50degree | |||||||||||||
| OSD language | Multi-language | |||||||||||||
| Certificates | 3C,FCC,CE,ROHS etc. | |||||||||||||
| Accessories | Adapter | non | ||||||||||||
| User's Manual | yes | |||||||||||||
| Usage | Wall hanging (standard accessory) | |||||||||||||
Package
| Body Size | Color Box | 10pcs/Carton | ||||||
| Length | Width | Thickness | Length | Width | Height | Length | Width | Height |
| 245 | 163 | 13.5 | 285 | 195 | 55 | 570 | 300 | 220 |
| N.W | 0.67KG | N.W | 0.84KG | G.W | 9.4KG | |||
Unit: mm
Mechanical Outline Drawing
