Product Details:
|
| Product: | 10.1" Android Touch Screen Monitor | Resolution: | 800*1280 Dots |
|---|---|---|---|
| Brightness: | 300 Cdm2 | Display Area: | 138.4×218.4mm (16:9) |
| CPU: | RK3568 | RAM: | 2GB |
| ROM: | 16GB | System: | Android 11/13 OS |
| WIFI: | 802.11b/g/n | Multi-Media: | Video/Audio/Picture |
| Speaker: | 2×2W Speakers | Camera: | Standard 200W Pixel Camera |
| Adapter: | One, 12V/2A | POE: | Optional |
| Highlight: | POE Android Touch Display,10.1 Inch Android Touch Display,L Shaped Android Touch Display |
||

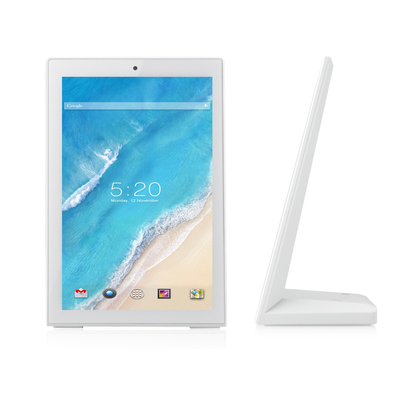

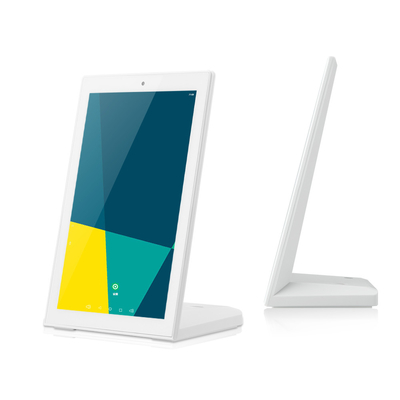

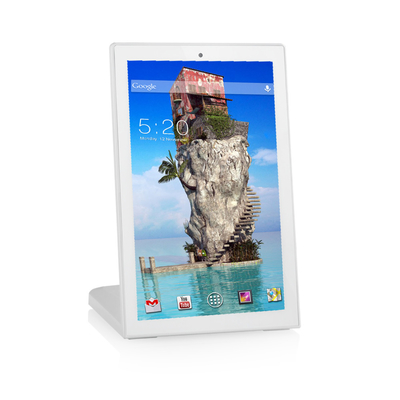

About this item L-Shaped 10.1-Inch Portrait Android Touch Display (LS102T-3568)
Product Appearance and Design
This display features an L-shaped design that offers a unique and space-saving solution for various settings. The 10.1-inch portrait orientation provides a comfortable viewing experience and is ideal for applications where vertical display is preferred.
Display Quality
With resolutions of 800x1280 and 1200x1920, this touch display offers sharp and clear images. The high-quality display ensures vivid colors and excellent contrast, making it suitable for a wide range of applications such as multimedia consumption, business presentations, and educational use.
Hardware Specifications
Motherboard: Powered by the RK3568 motherboard, this display offers reliable performance and efficient processing.
Android System: Supports Android 11 or Android 13 operating systems, providing a familiar and user-friendly interface. Users can access a wide range of apps from the Google Play Store and customize their experience according to their needs.
Memory Options: Available in 2G+16G and 4G+32G configurations, allowing users to store and run multiple applications simultaneously. The ample memory ensures smooth performance even when running resource-intensive tasks.

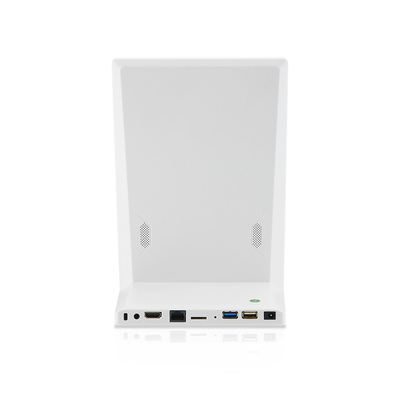

Interfaces: Equipped with a variety of interfaces including 1xTF card slot, 1xUSB2.0 port, 1xUSB3.0 port, 1xRJ45 Ethernet port, 1x3.5mm headphone jack, 1xHDMI out port, and 1x5.5x2.1mm power DC jack. These interfaces provide flexibility in connectivity and allow users to connect external devices such as storage devices, keyboards, mice, and speakers.
Additional Features
Front Camera and Microphone: The built-in front camera and microphone enable video calls, conferencing, and photo taking. This is especially useful for remote communication and collaboration.
Bluetooth: Supports Bluetooth connectivity, allowing users to pair with wireless devices such as headphones, speakers, and keyboards for a seamless wireless experience.
Touchscreen: The capacitive touchscreen provides intuitive and responsive interaction. Users can easily navigate through menus, launch apps, and perform various tasks with just a touch.
Applications
This L-shaped Android touch display is suitable for a wide range of applications, including:
Business: Ideal for use in offices, conference rooms, and retail environments. It can be used for presentations, digital signage, and customer interaction.
Education: A great tool for classrooms and educational institutions. It can be used for interactive learning, presentations, and accessing educational resources.
Home Entertainment: Perfect for home use as a media center, gaming display, or digital photo frame.
Industrial: Can be used in industrial settings for monitoring, control, and data display.
In conclusion, the L-Shaped 10.1-Inch Portrait Android Touch Display (LS102T-3568) is a powerful and versatile device that offers excellent display quality, advanced hardware specifications, and a wide range of features. Whether for business, education, or home use, this display is sure to meet your needs and enhance your digital experience.
Features
| Display | Screen | 10.1 inch IPS screen | ||||||||||||
| Resolution | 800*1280/1200x1920 | |||||||||||||
| Brightness | 300 cdm2 | |||||||||||||
| Contrast | 1000:1 | |||||||||||||
| Screen scale/Display area | 16:9/ Display area : 138.4×218.4mm | |||||||||||||
| Configuration | CPU | Rockchip RK3568 quad core A55 processor, clocked 2.0GHz | ||||||||||||
| RAM | 2/4GB | |||||||||||||
| ROM | 16/32GB | |||||||||||||
| System | Android 11/13 system | |||||||||||||
| Network | WIFI | 802.11b/g/n | ||||||||||||
| Ethernet | Supports connection to the RJ45 network interface | |||||||||||||
| Bluetooth | BT 4.2 | |||||||||||||
| 3G/4G | Support external 3G/4G USB dongle | |||||||||||||
| Jack | TF | 1×TF card slots (max support 32GB) | ||||||||||||
| USB 2.0 | 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||
| RJ45 | 1×RJ45 network interface | |||||||||||||
| Earphone | 1×3.5mm headphone jack | |||||||||||||
| HDMI out | 1xHDMI out | |||||||||||||
| Power | 1×5.5x2.1mm power DC jack | |||||||||||||
| Multi-Media | Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) | ||||||||||||
| Audio | Support MP3, WMA, AAC and so on | |||||||||||||
| Picture | JPEG,JPG | |||||||||||||
| Other parameters | Wireless mouse keyboard | Support | ||||||||||||
| Speaker | 2×2W speakers | |||||||||||||
| Camera | Standard 2.0MP pixel camera (5.0MP pixel camera optional) | |||||||||||||
| OSD language | Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations | |||||||||||||
| Software support | Free installation applications (maps, games, e-mail, self developing apps, etc.) | |||||||||||||
| Attachment | Adapter | One, specifications: 12V/2A | ||||||||||||
| User's Manual | One | |||||||||||||
Package
| Body Size | Color Box | 10pcs/Carton | ||||||
| Length | Width | Thickness | Length | Width | Height | Length | Width | Height |
| 260 | 178 | 109 | 290 | 208 | 135 | 690 | 425 | 290 |
| N.W | 0.8KG | N.W | 1.3KG | N.W | 14KG | |||
Unit: mm
Mechanical Outline Drawing
