Product Details:
|
| Product: | 8" Android Touchscreen Monitor | Resolution: | 1280x800 Dots |
|---|---|---|---|
| Brightness: | 300 Cdm2 | Display Area: | 173×109mm (16:10) |
| CPU: | RK3566 | RAM: | 2GB |
| ROM: | 16GB | System: | Android 11 OS |
| WIFI: | 802.11b/g/n | Multi-Media: | Video/Audio/Picture |
| Speaker: | 2×2W Speakers | Camera: | Standard 200W Pixel Camera |
| Adapter: | One, 12V/2A | POE: | Optional |
| Highlight: | RJ45 Android Touch Screen Display,8 Inch Android Touch Screen Display,HDMI Android Touch Screen Display |
||
About this item L Type 10.1 Inch RK3568 Desktop Android Touch Screen Display L808T-3568

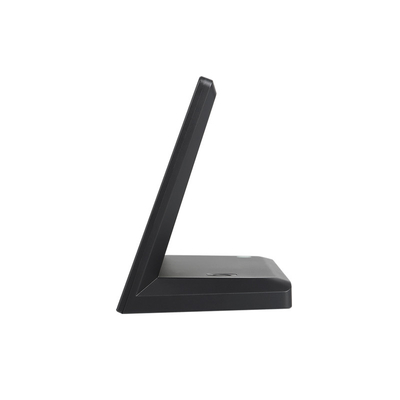

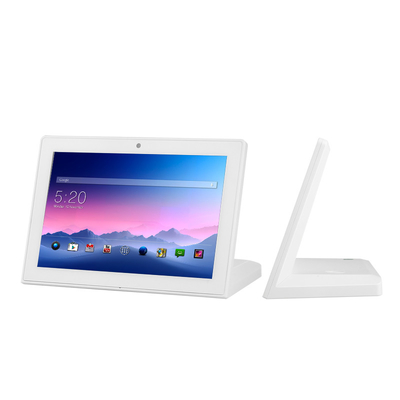

I. Appearance Design
The product has an L-shaped design. The unique shape not only saves space but also has high recognition. The 8-inch screen size is moderate and will not be too obtrusive whether used on a desk or in a home environment.
II. Display Features
Equipped with a capacitive touch screen, the touch response is sensitive and the operation is smooth, bringing users a convenient interactive experience. Whether it is clicking, sliding, or zooming, it can respond quickly, allowing users to easily control various functions.
III. Hardware Configuration
1. The core processor is RK3568, with strong performance and able to meet various complex application requirements. Whether it is running office software, browsing the web, or watching videos, it can maintain a smooth and stable running state.
2. Built-in camera, convenient for users to make video calls, take pictures and other operations. Whether communicating remotely with family and friends or having an online meeting, it can provide clear image quality.
3. Equipped with a microphone with good pickup effect to ensure the clarity of voice calls and recordings. Whether it is voice chatting or recording voice memos, it can be easily achieved.
4. Equipped with an RJ45 interface to realize wired network connection, and the network stability is higher. For office scenarios or online games and other applications that require a stable network environment, wired connection is a reliable choice.
5. Supports WIFI and Bluetooth functions, and wireless connection is more convenient. Users can easily connect to the wireless network and enjoy the convenience of the Internet anytime and anywhere. The Bluetooth function can connect various Bluetooth devices such as headphones, speakers, keyboards, etc., expanding the usage methods of the device.
6. It has an HDMI output interface, which can output the screen content to a larger display device such as a TV or projector to meet the display needs of users in different occasions.
IV. Application Scenarios
1. Office scenarios: It can be used as an auxiliary display to improve work efficiency. Through HDMI output, it can be connected to a large screen for presentations. The camera and microphone are convenient for video conferences.
2. Home entertainment: Used for watching videos, playing games, etc., enriching family entertainment life. The capacitive touch screen makes operation more convenient. The Bluetooth function can connect devices such as speakers to enhance the audio-visual experience.
3. Education field: It can be used as a learning tool for students to facilitate online learning and interaction. The camera and microphone are convenient for communicating with teachers and classmates.

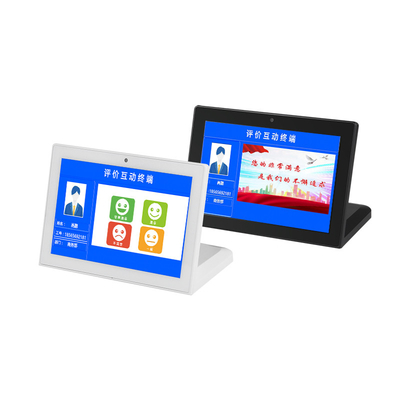

4. Commercial display: It can be used for information display and interaction in shopping malls, exhibition halls and other places to attract customers' attention.
In short, this L-shaped 8-inch RK3568 desktop Android touch screen display brings a new intelligent experience to users with its rich functions and convenient operation. Whether in office, home, education or business fields, it can play an important role.
The innovative Android Touch Screen Display, featuring a resolution of 1280*800, is designed in a unique L-Shaped Desktop form factor. This advanced device comes equipped with a POE RJ45 Port, enabling convenient power over ethernet connectivity and stable data transmission. The L-Shaped Desktop design offers enhanced ergonomics and flexibility, making it suitable for various application scenarios. With its high-resolution touch screen display, it provides users with a clear and intuitive interface for seamless interaction. Whether used in commercial settings such as digital signage, kiosks, or in industrial control environments, this Android Touch Screen Display with its POE RJ45 Port and L-Shaped Desktop configuration is set to meet the diverse needs of modern technology applications.
Features
| Display | Screen | 8 inch IPS screen | ||||||||||||
| Resolution | 1280×800 | |||||||||||||
| Brightness | 300 cdm2 | |||||||||||||
| Contrast | 1000:1 | |||||||||||||
| Screen scale/Display area | 16:10/ Display area : 173×109mm | |||||||||||||
| Configuration | CPU | Rockchip RK3568 quad core A55 processor, clocked 2.0GHz | ||||||||||||
| RAM | 2GB | |||||||||||||
| ROM | 16GB | |||||||||||||
| System | Android 11 system | |||||||||||||
| Network | WIFI | 802.11b/g/n | ||||||||||||
| Ethernet | Supports connection to the RJ45 network interface | |||||||||||||
| Bluetooth | BT 4.2 | |||||||||||||
| 3G/4G | Support external 3G/4G USB dongle | |||||||||||||

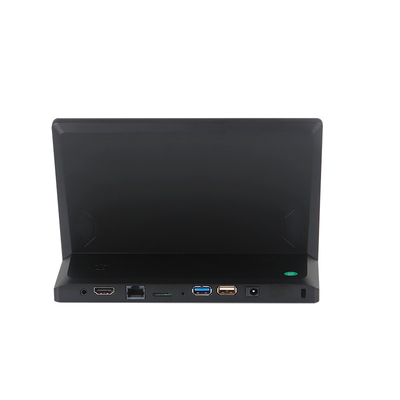

| Jack | TF | 1×TF card slots (max support 32GB) | ||||||||||||
| USB 2.0 | 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||
| RJ45 | 1×RJ45 network interface | |||||||||||||
| Earphone | 1×3.5mm headphone jack | |||||||||||||
| HDMI out | 1xHDMI out | |||||||||||||
| Power | 1×5.5x2.1mm power DC jack | |||||||||||||
| Multi-Media | Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) | ||||||||||||
| Audio | Support MP3, WMA, AAC and so on | |||||||||||||
| Picture | JPEG,JPG | |||||||||||||
| Other parameters | Wireless mouse keyboard | Support | ||||||||||||
| Speaker | 2×2W speakers | |||||||||||||
| Camera | Standard 2.0MP pixel camera (5.0MP pixel camera optional) | |||||||||||||
| OSD language | Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations | |||||||||||||
| Software support | Free installation applications (maps, games, e-mail, self developing apps, etc.) | |||||||||||||
| Attachment | Adapter | One, specifications: 12V/2A | ||||||||||||
| User's Manual | One | |||||||||||||
Package
| Body Size | Color Box | 10pcs/Carton | ||||||
| Length | Width | Thickness | Length | Width | Height | Length | Width | Height |
| 260 | 178 | 109 | 290 | 208 | 135 | 690 | 425 | 290 |
| N.W | 0.8KG | N.W | 1.3KG | N.W | 13KG | |||
Unit: mm
Mechanical Outline Drawing
