Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SH808T-3566
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

8 inch Android Monitor Smart Home Tablet with 1280×800 Android 11 OS

Description
Product: 8" Android Smart Home Tablet Resolution: 1280x800 Dots
Brightness: 300 Cdm2 Display Area: 174×109mm (16:10)
CPU: RK3566 RAM: 2GB
ROM: 32GB System: Android 11 OS
WIFI: 802.11b/g/n Multi-Media: Video/Audio/Picture
Speaker: 2×2W Speakers Camera: Standard 200W Pixel Camera
Adapter: One, 12V/2A POE: Optional
Highlight:

1280×800 Smart Home Tablet

,

8 inch Android Monitor

,

Android 11 OS Smart Home Tablet

About this item SH808T-3566

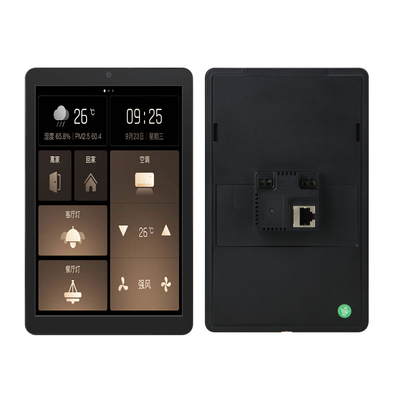

This 8-inch Android smart home tablet offers a resolution of 1280×800 and is powered by Rockchip rk3566. It comes with a capacitive touch screen

for smooth interaction. The built-in camera and mic enable video calls and voice commands. With RJ45, WIFI, and Bluetooth, it offers multiple

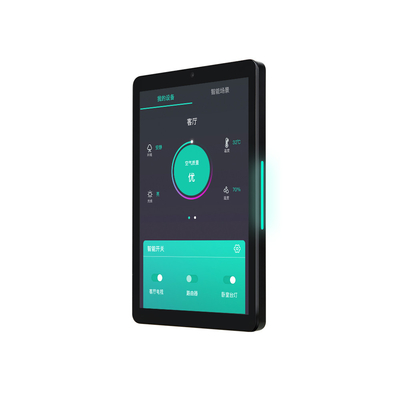

connectivity options. The POE power supply provides a convenient way to power the device. The LED RGB light adds a touch of style.

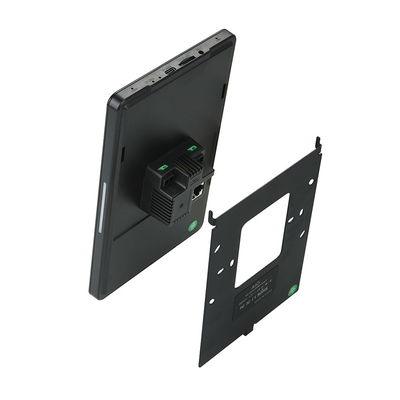

The wall mounted bracket makes it easy to install in various locations. The specific configuration of this tablet is as follows:

  1. Processor: Adopting the Rockchip rk3566 chip, it is a quad-core A55 architecture processor with a maximum clock speed of 1.8GHz. It has the characteristics of low power consumption and high performance. It integrates the Mali-G52 graphics processor and has an independent NPU. The computing power can reach 0.5 - 1TOPS (different data shows differences). It can meet various functional requirements.
  2. Display: 8 inches in size with a resolution of 1280×800. It may adopt a high-quality narrow bezel design and have a full HD IPS full-view display effect. Some products have a clear and transparent screen display and may also have a certain eye protection mode, which can effectively and comfortably prevent blue light and inhibit the harm of blue light on the screen.
  3. Camera: Usually equipped with a front camera, such as 2 million pixels, which can meet the needs of video chats. The rear camera may be 5 million pixels, which can be used for taking pictures and searching questions. The clarity is sufficient to meet daily life needs.
  4. Storage: Generally, it has a certain capacity of internal storage, such as 32GB. At the same time, it may support a maximum of 2TB TF card expansion so that users can store more files, materials, application programs, etc.
  5. System: Runs the Android smart operating system. Some products are developed based on Android 11 and have a smart AI operating system. After the system is upgraded, new privacy protection functions are added to prevent apps from excessively obtaining user information and avoid personal privacy leakage. At the same time, it may also support gesture mode.
    Network connection: Supports common wireless connection methods such as WIFI and Bluetooth. Some products may also have an RJ45 Ethernet interface to achieve a more stable network connection.



Features



Display Panel 8" high-definition full view screen fully bonded
Resolution 1280×800
Display mode Normally black
Viewing angle 85/85/85/85(L/R/U/D)
Luminance 300 cd/m2
Contrast 1000:1
Screen scale/Display area 16:10/ Display area : 174×109mm
System CPU Rockchip rk3566 quad core A55 processor, clocked 1.8G
RAM 2GB ( 4GB optional )
Internal memory 32GB
Operation system Android 11 system
Touch screen 10-Point capacitive touch
Network WIFI and Bluetooth AP6212 ( 802.11b/g/n and BT5.2 ) 【AP6256 ( 802.11a/b/g/n/ac and BT5.0 ) optional】
Ethernet 100M ethernet
Zigbee Protocol optional
Matter Protocol optional
Interface TF TF card slots
Type-C USB2.0 supports OTG functionality
RJ45 Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4, 25.5W )
RS-485 Communicating with RS485 devices
Power jack DC power input
Power jack 12V positive and negative electrode wire interface
Multi-Media Video MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.
Audio MP3/WMA/AAC etc.
Picture JPEG
Other parameters Microphone Two microphones
Speaker 2×2W BOX chamber horn
LED light strip RGB
Camera 2MP from a conventional perspective
Working temp 0-50degree
OSD language Multi-language
Certificates 3C,FCC,CE,ROHS etc.



Body Size Color Box 20pcs/Carton
Length Width Thickness Length Width Height Length Width Height
199 124 12 240 155 55 570 250 330
N.W 0.45KG N.W 0.57KG N.W 12.4KG

Unit: mm





Mechanical Outline Drawing
