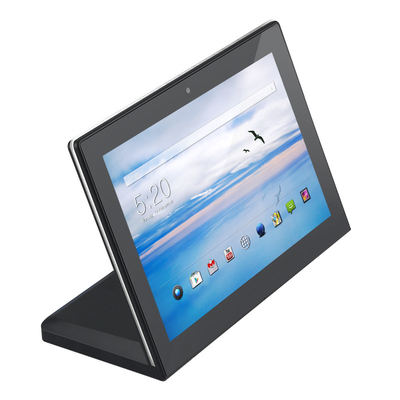

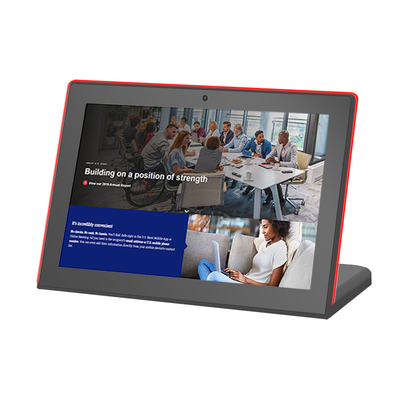

10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port

10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port
10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port
10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port

Large Image :  10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: LR102T-3568
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month
Contact Now

10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port

Description
Product: 10.1 Inch Android Touch Screen Display Resolution: 1280×800
Brightness: 300 Cdm2 Display Area: 219×137mm
CPU: A55 Quad Core Processor RAM: 1GB
ROM: 16GB System: Android 11
WIFI: 802.11b/g/n Wireless Keyboard: Support
Bluetooth: BT 4.2 Camera: Standard 2MP
Software: Free Installation Applications Adapter: DC 12V/2A-IN
Highlight:

L-Shaped Android TouchScreen Display

,

WIFI Android TouchScreen Display

,

10.1-Inch Android TouchScreen Display



10.1-inch L-shaped desktop Android touchscreen display Product Introduction



The 10.1-inch L-shaped desktop Android touchscreen display LR102T-3568 is a display device designed specifically for commercial and industrial environments. It features full HD display and multi touch functionality, providing users with a smooth interactive experience. The following is a detailed introduction of the product:



  • Display Screen: This monitor is typically equipped with a 10.1-inch TFT LCD screen with a resolution of 1280x800 pixels, providing clear and delicate image display effects.
  • Touch screen technology: adopting capacitive touch screen, supporting multi touch, fast response speed, smooth operation, providing users with precise touch experience.
  • Operating System: Built in Android operating system, version may be Android 10 or higher, compatible with 99% of industry application software, supports self-designed APK program installation.
  • Processor: Equipped with high-performance processors such as quad core 1.6GHz processors, ensuring smooth device operation and capable of handling multitasking operations.
  • Camera and microphone: Built in camera and microphone, supporting 1080P video calls, suitable for application scenarios that require video conferencing or remote collaboration.
  • Network connection: Provides RJ45 network interface, supports wired network connection, and has WIFI and Bluetooth functions for wireless data transmission and device connection.

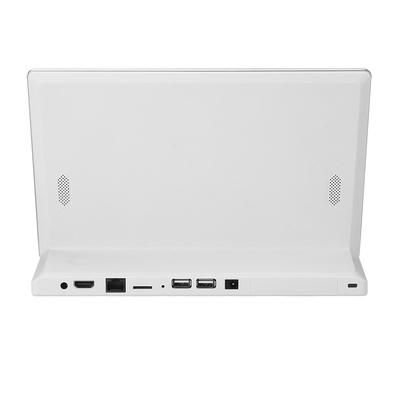

  • Interface: It has multiple interfaces, such as USB, HDMI, TF card slot, etc., to meet the connection needs of various peripherals.

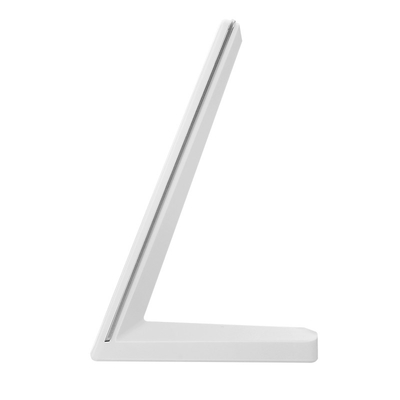

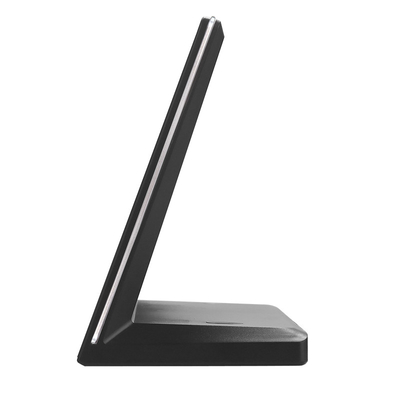

  • Installation method: L-shaped desktop design, supporting horizontal or vertical installation, suitable for different usage environments and user needs.

  • Application scenarios: Widely used in retail, catering, hotel, medical, industrial control and other fields, suitable for self-service terminals, information query systems, digital signage, etc. that require touch screen operation.

  • Durability: The product design takes into account the durability requirements of industrial environments, with features such as anti drying, dustproof, waterproof, etc., ensuring long-term stable operation.

  • Customized services: Some suppliers provide customized services, including shell borders, touch screens, etc., to meet the personalized needs of specific customers.



This 10.1-inch L-shaped desktop Android touchscreen display LR102T-3568 is an ideal display and interaction device in commercial and industrial environments due to its high-definition display, intelligent operating system, multi touch, and stable performance.





Features



Display Screen 10.1 inch IPS screen
Resolution 1280×800
Brightness 300 cdm2
Contrast 1000:1
Screen scale/Display area 16:10/ Display area : 219×137mm
Configuration CPU Rockchip RK3568 quad core A55 processor, clocked 2.0GHz
RAM 2GB
ROM 16GB
System Android 11 system
Network WIFI 802.11b/g/n
Ethernet Supports connection to the RJ45 network interface
Bluetooth BT 4.2
3G/4G Support external 3G/4G USB dongle
Jack TF 1×TF card slots (max support 32GB)
USB 2.0 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 1×RJ45 network interface
Earphone 1×3.5mm headphone jack
HDMI out 1xHDMI out
Power 1×5.5x2.1mm power DC jack
Multi-Media Video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
Picture JPEG,JPG
Other parameters Wireless mouse keyboard Support
Speaker 2×2W speakers
Camera Standard 2.0MP pixel camera (5.0MP pixel camera optional)
OSD language Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Software support Free installation applications (maps, games, e-mail, self developing apps, etc.)
Attachment Adapter One, specifications: 12V/2A
User's Manual One





Product Details



10.1 Inch Android Touch Screen Display 1280x800 L-Shaped Desktop with POE RJ45 Port 0




Product Size and Weight



Body Size Color Box 10pcs/Carton
Length Width Thickness Length Width Height Length Width Height
260 178 109 290 208 135 690 425 290
N.W: 0.8KG 1.3KG N.W:13KG G.W:13KG

unit: mm





Quality Management


1)Quality Policy: Ensure quality and punctual delivery, meet customer needs through continuous improvement.

2)EHS Policy: Comply with laws, prevent pollution, reduce emissions, conserve resources, enhance awareness, and improve the environment.

3)Measures: Promote quality policy awareness via training, implement '5S' for tidiness and employee proficiency, cover all quality aspects with ISO9001, and cut production costs while guaranteeing quality.
