Product Details:
|
| Product: | 10.1" Inch AIO Tablet PC | Resolution: | 1280×800 |
|---|---|---|---|
| Brightness: | 250 Cdm2 | Screen Scale/Display Area: | 16：10/ Display Area : 219×137mm |
| CPU: | Rockchip RK3399 Dual Core Cortex-A72 + Quad Core Cortex-A53 CPU | RAM: | 4GB |
| ROM: | 16GB | System: | Android 7.1/8.1/9.0/11.0 OS |
| Network: | WIFI/Ethernet/Bluetooth/3G/4G/microphone | Interface: | SD/Mini USB/USB 2.0/RJ45/Earphone/Power |
| Multi-Media: | Video/Audio/Picture | Wireless Mouse Keyboard: | Support |
| Speaker: | 2×2W Speakers | Camera: | Standard 200W Pixel Camera |
| OSD Language: | Chinese, English, German, Korean, Russian, French, Spanish, Arabia Etc OSD Operations | Software Support: | Free Installation Applications (maps, Games, E-mail, Self Developing Apps, Etc.) |
| Adapter: | One, Specifications: 12V/2A | User's Manual: | One |
| POE: | Optional | Standard Configuration: | Capacitive Touch Screen, Camera, Mic, RJ45, WIFI, Bluetooth. |
| Highlight: | POE RS485 Android Tablet PC,Customized Android Tablet PC OEM |
||
OEM Customized Advertising Display 10.1inch 1280*800 Android Wall Mounted Tablet POE RS485 Android Tablet PC Product Introduction
SF-YR101T-3588 Whit /Black frame for optional)is a wall mounted touch screen signage android player, the Size of SF-YR101T-3588-is 10.1 inch, it is with IPS screen, SF-YR101T-3588 has the resolution:1280×800 dots. SF-YR101T-3588 can be installed as wall mounted and deskop stand.
Features:
1. CPU: High Performance and Energy Saving CPU KR3399/KR3588......
2. RAM: 8GB
3. ROM: 128GB
4. Screen: 10inch-32INCH I PS Screen(Highlight LED Backlight)
5. Touch Screen: 10 Points Capacitive multi-touch screen optional
6. Operating System: Android6.0/7.1/8.1/9.0/11.0/12.0......
7.Interface: DC input/USB/Mini-USB(OTG)/Audio/RJ45 Ethernet/SD card(POE power/HDM-I Optional)
8. Touch Screen: 10 Points Capacitive multi-touch screen optional
9.Installation method:Wall mounted/In Wall/Holder/Stand/OEM Open frame
| Display | Screen | 10.1 inch IPS screen | ||||||||||||
| Resolution | 1280×800 | |||||||||||||
| Brightness | 300 cdm2 | |||||||||||||
| Contrast | 800:01:00 | |||||||||||||
| Screen scale/Display area | 16:10/ Display area: 215×135mm | |||||||||||||
| Configuration | CPU | Rockchip RK3399 Dual core Cortex-A72 + Quad core Cortex-A53 CPU | ||||||||||||
| RAM | 4GB | |||||||||||||
| ROM | 16GB | |||||||||||||
| System | Android 7.1/8.1/9.0/11.0 | |||||||||||||
| Network | WIFI | 802.11b/g/n | ||||||||||||
| Ethernet | Supports connection to the RJ45 network interface | |||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| 3G/4G | Support external 3G/4G USB dongle | |||||||||||||
| Jack | SD | 1×SD card slots (max support 32GB) | ||||||||||||
| Mini USB | 1×USB OTG (through it to debug the machine, brush the system program) | |||||||||||||
| USB 2.0 | 3×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||
| RJ45 | 1×RJ45 network interface | |||||||||||||
| Earphone | 1×3.5mm headphone jack | |||||||||||||
| Built-in POE | Yes | |||||||||||||
| Battery | NO | |||||||||||||
| Power | 1×4.0mm power DC jack | |||||||||||||
| Multi-Media | Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) | ||||||||||||
| Audio | Support MP3, WMA, AAC and so on | |||||||||||||
| Picture | JPEG,JPG | |||||||||||||
| Other parameters | Wireless mouse keyboard | Support | ||||||||||||
| Speaker | 2×2W speakers | |||||||||||||
| Camera | Standard 200W pixel camera (500W pixel camera optional) | |||||||||||||
| OSD language | Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations | |||||||||||||
| Software support | Free installation applications (maps, games, e-mail, self developing apps, etc.) | |||||||||||||
| Attachment | Adapter | One, specifications: 12V/2A | ||||||||||||
| Desktop Bracket | One | |||||||||||||
| Wall Mounted | Yes | |||||||||||||
| Remote control | No | |||||||||||||
| User's Manual | One | |||||||||||||
| Theftproof cover plate | One, (can cover insert devices, such as U disk or SD card, to prevent theft) | |||||||||||||
| Body Size | Color Box | 10pcs/Carton | ||||||
| Length | Width | Thickness | Length | Width | Height | Length | Width | Height |
| 245 | 170 | 25 | 385 | 225 | 60 | 470 | 400 | 320 |
| N.W | 0.64KG | N.W | 0.96KG | N.W | 9.6KG | |||
| G.W | 10.6KG | |||||||
SAEF TECHNOLOGY LTD provides customers with 7-32 inch center size intelligent display application solutions. Android touch all-in-one ten-point capacitive touch, open ROOT permission to support secondary development, front HD camera, built-in NFC/ID card reader, POE network port power supply network, support wired/wireless network, high-definition HDMI output, 485/232 serial port communication. The product supports customized interface, customized size, and customized appearance.
Application:
It is used in different contexts, such as face recognition, robot display, pos system,security monitoring, smart home, self-service terminal, medical device display, advertising information display, rail traffic display......
·Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
· Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course., etc.

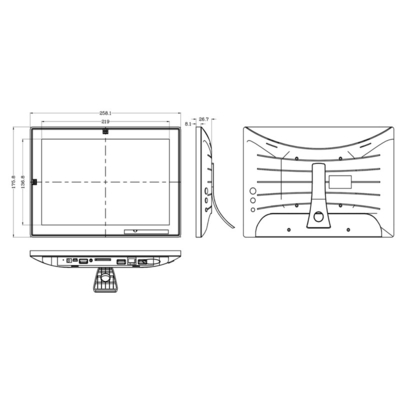

OEM Customized Advertising Display 10.1inch 1280*800 Android Wall Mounted Tablet POE RS485 Android Tablet PC Product Drawing

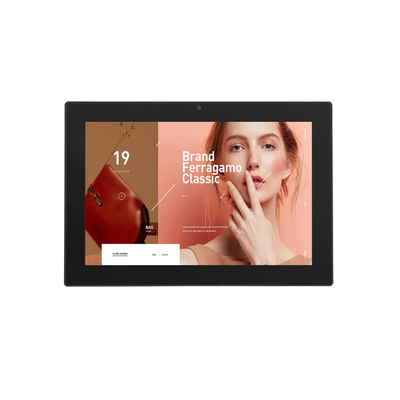

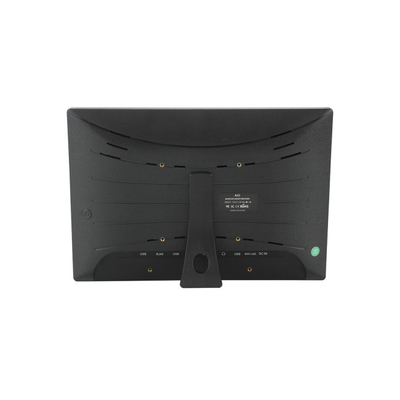

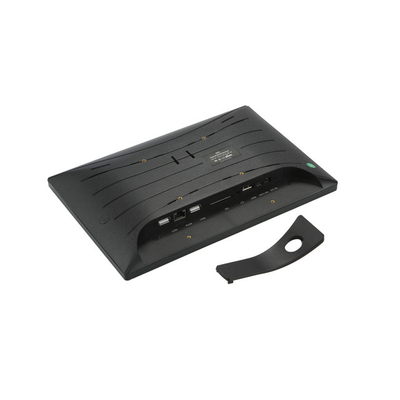

OEM Customized Advertising Display 10.1inch 1280*800 Android Wall Mounted Tablet POE RS485 Android Tablet PC Product Image
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
Factory Facilities and Certificates
Search Keyword: Tablet PC,Industrial Tablet,Android Tablet PC,Digital Signage Android Tablet PC,Android Touch All In One PC,Touch screen monitor,Advertising display screen
FAQ:
1. Q: Are you a factory?
A: Yes, we are factory.we produce tablet pc from 2007.
2. Q: How much extra cost for your OEM order?
A: No extra cost for our OEM service if order qty over 50pcs.
3. Q: How long is the leading time?
A: 3-7days for sample orders. 10-15days for mass production orders
4. Q: How will you ship the goods for me?
A: Ship by air by sea and express. We cooperate with international expresses such as DHL, UPS, FedEx,TNT to enable our customers get their goods rapidly.
