Product Details:
|
| Keywords: | 7 Inch HDMI TFT LCD | Resolution: | 1024x600 Pixels |
|---|---|---|---|
| Signal Supported: | HDMI 480i,480p,576i,576p,720p,1080i,1080p | CTP Interface: | USB |
| Surface Luminance: | 500 Cd/m2 - 1000 Cd/m2 | Touch Screen: | CTP (Capacitive Touch Screen) |
| Power Input: | USB Input 5V（+/-0.5V） | Compatible With: | Raspberry Pi |
| Support: | Raspbian, Ubuntu, WIN10 IOT And Other Systems | Viewing Direction: | IPS All Viewing Angle(85/85/85/85) |
| LED Lifetime: | 40,000 Hours | Operating Temp.: | –20℃ To +70℃ |
| Storage Temp.: | –30℃ To +80℃ | Audio Output: | 8Ω1.5W |
| Mainboard Standby Power Consumption: | ＜0.25W | Button (reserved): | POWER、MENU、UP、DOWN、EXIT |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 7 Inch HDMI TFT LCD Display,Capacitive Touch TFT LCD Display |
||
7 Inch HDMI TFT LCD Display With Capacitive Touch Screen For Raspberry PI Product Introduction
SFRA700H-1024600ACT-01 is a HDMI TFT LCD module which integrated TFT LCD, PCAP touch and driving board.
1- The module perfectly presents the HDMI digital signal output from the PC on the 1024*600 LCD screen.
2- Support HDMI 1.3, HDMI 1.4, HDCP 1.4, HDCP 2.2 standards. HDMI signal source is compatible with mainstream mini PCs such as Raspberry Pi, BB Black, Banana Pi, etc.
3- TOUCH is from USB to I2C, no need to install drivers.
4- The design is mainly used on the Raspberry Pi display, and it can also be used on other HDMI industrial control small screen touch devices. When used as a Raspberry Pi display, it supports Raspbian, Ubuntu, WIN10 IOT and other systems.
5- when used as a computer display, it supports Windows 7/8/10, five-point touch, driver-free.
| Keywords: | 7 Inch HDMI TFT LCD |
| Resolution: | 1024x600 Pixels |
| Signal Supported: | HDMI 480i,480p,576i,576p,720p,1080i,1080p |
| CTP Interface: | USB |
| Compatible With: | Raspberry Pi |
| Viewing Direction: | IPS All Viewing Angle(85/85/85/85) |
| Surface Luminance: | 500 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP (Capacitive Touch Screen) |
| Power Input: | USB Input 5V(+/-0.5V) |
| Support: | Raspbian, Ubuntu, WIN10 IOT And Other Systems |
| LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ |
| Storage Temp.: | –30℃ To +80℃ |
| Mainboard Standby Power Consumption: | ＜0.25W |
| Audio Output: | 8Ω1.5W |
| Button (reserved): | POWER,MENU,UP,DOWN,EXIT |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
Characteristics
| Version | 01 | ||
| Signal supported | HDMI | 480i,480p,576i,576p,720p,1080i,1080p | |
| Touch | USB standard | ||
| VGA | Not support | ||
| Interface on mainboard | input | HDMI | A type HDMI patch female 19Pin patch (horizontal) |
| USB | MICRO 5P USB female B type 5.9MM (horizontal) | ||
| Earphone interface | NC | ||
| Touch interface | 6 pin | FPC-0.5-6PIN (horizontal) | |
| Display interface | RGB 50 pin | FPC-0.5-50PIN (horizontal) | |
| Audio | Audio output | 8Ω1.5W | 4PIN-1.25 H1.8 Ultra-thin female seat (horizontal) |
| Power supply | Power input | USB input 5V(+/-0.5V) | |
| Display Vop | 3.3V | ||
| Power operation | Power on display | ||
| Mainboard standby power consumption | ＜0.25W | ||
| OSD Menu | Menu (reserve) | Brightness, Contrast, Auto Correction, Phase, Clock, Field Position, Function Setting, Reset, etc. | |
| Language(reserve) | Chinese, English, French, German, Italian, Spanish, Russian, Korean, Japanese, etc. | ||
| button (reserved) | POWER,MENU,UP,DOWN,EXIT | ||
7 Inch HDMI TFT LCD Display With Capacitive Touch Screen For Raspberry PI Product Drawing
HDMI interface pin definition
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 Shielded |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 Shielded |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 Shielded |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK Shielded |
| 12 | T.M.D.S DATA CLOCK- |
| 13 | CEC (Consumer Electronics Control Optional) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC) |
| 16 | SDA(DDC) |
| 17 | DDC/CEC Ground |
| 18 | +5V (power supply) |
| 19 | Hot swap probe cable |

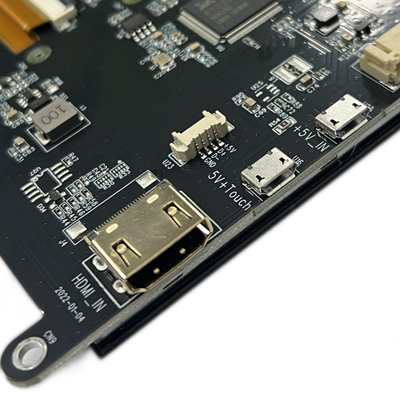

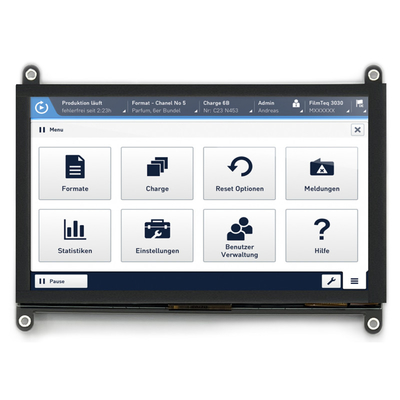

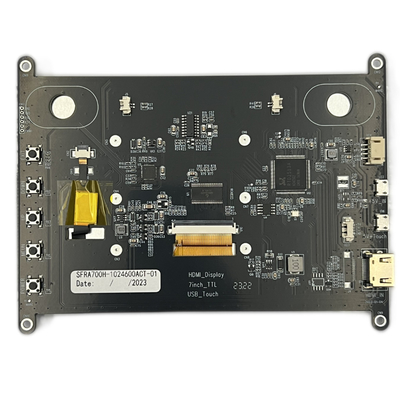

7 Inch HDMI TFT LCD Display With Capacitive Touch Screen For Raspberry PI Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
