Product Details:
|
| Keywords: | HDMI TFT Display 5 Inch | Support: | Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT |
|---|---|---|---|
| Resolution: | 800*480 Dots | Touch Screen: | CTP( Capacitive Touch Screen) |
| Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 | CTP Interface: | IIC To USB |
| Viewing Direction: | IPS All Viewing Angles (85/85/85/85) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | 800x480 Dots HDMI Touch Display,Raspberry Pi HDMI Touch Display,ISO9001 Industrial TFT Display |
||
5" Raspberry Pi Compatible HDMI TFT Touchscreen Display 800x480 IPS Product Introduction
SFHD500H09-800480A-CT is a HDMI TFT LCD module which integrated TFT LCD, PCAP touch and driving board.
This 5" TFT display is the perfect companion for a Raspberry Pi. The 5 inch HDMI TFT display connects to an RPi using the native DSI connector on the RPi. This connection provides everything the display needs- display information, power, and all the connections for the capacitive touchscreen. That means all of the RPi's GPIOs are available to connect with other peripherals*.
Plus, unlike many RPi displays, this display is ready to go and doesn't require modifications to the config.txt file on your RPi before power-up*.
Features:
>5" full-color TFT Display 500 nits
>Capacitive touchscreen
>Support: RGB interface signal output.
>Support: OSD language(Chinese/English).
>Single 15-pin connector required for display, cap touch, and power
>Connects with native DSI on the RPi Uses no GPIOs
>Config file ready to go
>Support: I2C to USB Capacitive single touch and multi-touch function.
>Support:HDMI signal source from such as Windows/Raspberry Pi/ATK/STB/DVD.
>Support: DC-5V USB-5V2A input.
>Audio:Not support, if needed, it can be customized.
>The software on the motherboard supports online updates.
|
Video input |
HDMI | 1080p | ||
| HDCP Version | 2.0 | |||
| Operating Power | DC 5V2A | |||
| Standby power consumption | ＜0.25W | |||
|
LCD Display |
Display | TFT LCD | ||
| Display interface | RGB | |||
| Resolution | 800*480@60HZ | |||
| Drive screen voltage | 3.3V | |||
| Headphone output | Not support | |||
| Speaker output | Not support | |||
| LED | adjust Way of brightness | PWM | ||
| Keyboard | Not support | |||
| OSD Language | Chinese/English | |||
5" Raspberry Pi Compatible HDMI TFT Touchscreen Display 800x480 IPS Product Drawing

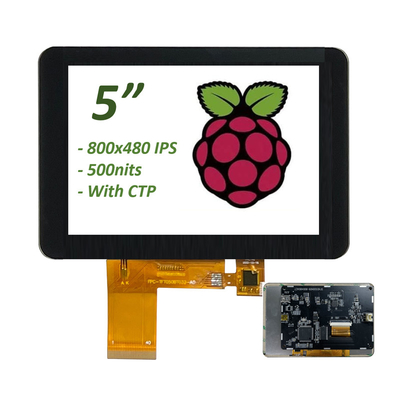

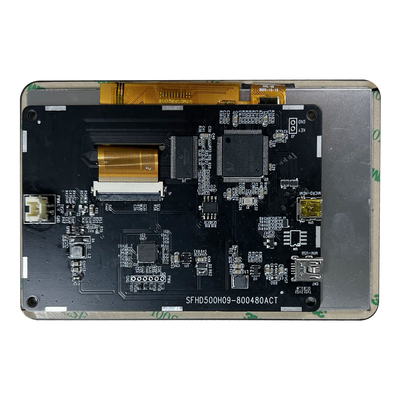

5" Raspberry Pi Compatible HDMI TFT Touchscreen Display 800x480 IPS Product Image
HDMI Pin Definition
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 shielded屏蔽 |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 shielded屏蔽 |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 shielded屏蔽 |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK shielded屏蔽 |
| 12 | T.M.D.S DATA CLOCK- |
| 13 |
CEC (Consumer Electronics Control, Optional electronic consumer controller可选择的电子消费控制器) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC Clock) |
| 16 | SDA(DDC data) |
| 17 | DDC/CEC Ground |
| 18 | +5V power |
| 19 | Hot-swappable probe wires热插拔探测线 |
Factory Facilities and Certificates
SAEF Technology Mini / Small HDMI Signal TFT LCD Display Panel
SAEF released for HDMI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support HDMI signal output. This series display modules come with a control board with a HDMI signal interface output; it is designed to make Raspberry Pi usage become easily. SAEF offers a wide product range of small to medium sizes HDMI TFT display modules in sizes ranging such as 1.28 inch HDMI TFT Round Display, 2.8 inch HDMI TFT Round Display, 3.4 inch HDMI TFT Display, 3.6 inch HDMI TFT Round Display, 5 inch HDMI TFT Round Display, 4.3 inch HDMI TFT Display, 5 inch HDMI TFT Display, 7 inch HDMI TFT Display, 10.1 inch HDMI TFT Display, 11.6 inch HDMI TFT Display, 12.3 inch HDMI TFT Display, 13.3 inch HDMI TFT Display, 14 inch HDMI TFT Display, 15 inch HDMI TFT Display, 15.6 inch HDMI TFT Display, 17 inch HDMI TFT Display, 18.5 inch HDMI TFT Display, 21.5 inch HDMI TFT Display, 23.8 inch HDMI TFT Display, 24 inch HDMI TFT Display, 25 inch HDMI TFT Display, 27 inch HDMI TFT Display and 28 inch HDMI TFT Display. These displays are featured below advantages:
> Designed to make Raspberry Pi usage becomes easily (Support Rasberry Pi use)
> Support HDMI signal output
> Good touch response
> Fast response time
> Support Raspberry Pi GPIO
> Support mini-PCs, it can work as a computer monitor
> Support RTP with USB interface
> Support PCAP option
> Without Touch panel option is available
