10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising

10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising
10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising

Large Image :  10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-LX101-IPS
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising

Description
Product: 10.1" Inch Digital Signage Display Resolution: 1280x800 Dots IPS Screen
Brightness: 320 Cdm2 Screen Scale/Display Area: 16:10/ Display Area : 216.96(W)×135.6(H) Mm
CPU: Rockchip RK3126c Clocked 1.5G Memory: 1G+16G
Interface: SD/Mini USB/USB 2.0/Power/Earphone Multi-Media: Video/Audio/Picture
Other Functions: Remote Control/Time/Power On / Off/Key/Auto Play/Picture Playback Adjustment Speaker: 2×2W Speakers
OSD Language: Multi OSD Language Adapter: DC-In 5V/1.5A
User's Manual: One WiFi: 802. 11b/g/n 2.4G
Highlight:

WIFI lcd ad display

,

1280*800 lcd ad display

10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising Product Introduction



Industry-specific attributes
Product name:Wifi Digital Photo Frame
Size 10'' inch IPS screen
Frame Material:ABS Frame
Function:WIFI, Video Playback, MP3
Plug and Play Micro SD Card: Supports direct playback from up to 32GB Micro SD card and USB drive to expand storage or import, export, and backup files. No built-in memory.
Installation:wall-mountin wall/desktop

system configuration
CPU:Rockchip RK3126c Clocked 1.5G
RAM:1G
Memory:16GB
system:Android 8.1

Display parameters and performance:
IPS screen:10. 1"IPS screen
Resolution:1280*800 216.96(W)×135.6(H) mm
contrast ratio:1000
brightness:320cdm2
touch screen:5 point capacitive touch screen
Contrast:800:1
Visual angle:85/85/85/85
Response time:6ms
Life(hrs):60,000(hrs)
Horizontal frequency:50-70KHZ
Vertical frequency:56-75KHZ
Screen ratio:16:10

network:
WiFi :802. 11b/g/n 2.4G

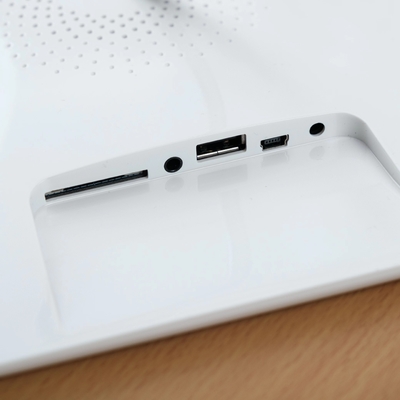

Interface:
SD:SD card, (supports Max 64GB)
Mini USB:USB OTG
USB Host 2.0:x 1pcs
Power jack:DC/4.0 power input
headset port:3.5mm stereo headphone output

Media play:
Video format:MPEG- 1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p
Audio format:MP3/WMA/AAC etc.
Picture format:jpeg,jpg
Speaker:2*2W
OSD language:Multilingual OSD operation in English and Chinese



Accessory:
an instruction manual:Standard
Adapter:Power adapter 5V/1.5A
Desktop Support:Standard



Temperature:
Working temperature:- 10°C~50°C
Storage temperature:-20°C~60°C

Color selection: White / Black......


Application:Wifi,Touch screen,Play advertising videos and images

Product: 10.1" Inch WIFI Digital Photo Frame Resolution: 1280x800 Dots IPS Screen
Brightness: 320 Cdm2 Screen Scale/Display Area: 16:10/ Display Area : 216.96(W)×135.6(H) Mm
CPU: Rockchip RK3126c Clocked 1.5G Memory: 1G+16G
Interface: SD/Mini USB/USB 2.0/Power/Earphone Multi-Media: Video/Audio/Picture
Other Functions: Remote Control/Time/Power On / Off/Key/Auto Play/Picture Playback Adjustment Speaker: 2×2W Speakers
OSD Language: Multi OSD Language Adapter: DC-In 5V/1.5A
User's Manual: One WiFi: 802. 11b/g/n 2.4G

Product Advantages

1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.Wide Temperature of Top of -30℃ to +80℃ for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.



10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising Product Image
10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 010 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 110 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 210 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 310 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 4

About this product:

Wireless sharing through application programs

The application "AiMOR" can be applied to both Android and iOS phones. You can download it from Google Play or App Store and connect it to Anna Bella WiFi digital photo frames. After completion, you can share photos or short videos (up to 15 seconds). Live a lifetime with your loved ones through the application, with zero subscription fees. This electronic photo frame comes with various customized settings to meet your various needs, such as slides, timers, zoom and cropping, sleep mode, and more!



[1280 × 800 IPS Full HD touch screen]
1280 × 800 IPS Full HD touch screen ensures that our intelligent framework has stunning and clear images, and provides you with an extraordinary visual experience from all angles. The touch screen allows you to easily set frames, browse photos, delete videos, or pause slides with just a quick click, making digital photo frames more convenient, easy to install and use.

[An excellent choice for giving to the person you love]
Our digital photo frame can enhance your home decor, and no matter where you are or what you do, you can directly send photos or short videos (up to 15 seconds) to the WiFi digital photo frame. Friends and family can share their warm moments through the application cloud transmission within seconds. It is also an excellent gift choice for Mother's Day, Father's Day, Christmas, birthdays, and anniversaries.



[Automatic rotation and multifunctional]

Electronic digital photo frames can automatically rotate photos to adjust orientation, and the borders will be filled to blur the background. View your complete photo in full screen to ensure good visibility from all angles. Multi functional customization settings, such as playback order, image scaling, hiding/publishing images, displaying titles, adjustable brightness, sleep mode, etc.



[Automatic Rotation and Large Capacity Storage]

Equipped with the automatic rotation function of Anna Bella digital photo frame, you can place the WiFi digital photo frame in portrait or landscape mode, which will automatically rotate the photo to adjust the direction to fit the frame perfectly. 16GB storage space and a maximum of 128GB expandable SD card slot allow you to share over 40000 photos without paying a subscription fee.

360 day limited warranty



The SAEF factory has strict standards for all production stages to ensure the quality of our digital photo frames. Each digital photo frame undergoes a 200 hour machine aging test before shipment to ensure that it runs perfectly before shipment. One year limited warranty means we can meet your needs! If you have any questions about our digital photo frame, please contact us for a simple solution or quick replacement!



Certificates

10 inch IPS screen 1280*800 WIFI digital signage touch screen lcd ad display for advertising 5



The use of small-size touch all-in-one computers



At present, there are many brands of touch all-in-one machine manufacturers on the market, after all, many businesses have seen its broad market prospects, and have joined in wanting to share this big cake. According to the different application environment and functional requirements, the size of the touch all-in-one computer on the market generally ranges from 10 inches to 98 inches, and there are also some sizes that are specially customized according to the special needs of customers.

According to the different sizes, the touch all-in-one machine can be divided into two types: small-size touch all-in-one machine and large-size touch all-in-one machine. Different sizes of all-in-one touch computers have different fields of use, and it is precisely because of this that the maximum value of the touch all-in-one computer can be brought into play. Different fields apply different sizes of touch all-in-one machines, which can reflect the maximum application cost performance of touch all-in-one machines.

From 10 inches to 21 inches, these sizes of touch all-in-one products are small sizes, and the most popular application in the market is the 21.5-inch touch all-in-one machine. It is now one of the sizes that every industry is keen to choose, which can be matched with a variety of styles of cabinets to achieve a variety of functions, such as displaying products, queuing, signing in, querying, and printing.

As a well-known big brand manufacturer in the industry, SAEF TECHNOLOGY supplies small-size touch all-in-one machines that are widely welcomed by users in different industries in the market with the characteristics of fashionable appearance, simple operation, powerful function, excellent quality and good service.
