10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos

10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos
10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos

Large Image :  10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-LX101-IPS
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos

Description
Product: 10.1" Inch WIFI Digital Photo Frame Resolution: 1280x800 Dots IPS Screen
Brightness: 320 Cdm2 Screen Scale/Display Area: 16:10/ Display Area : 216.96(W)×135.6(H) Mm
CPU: Rockchip RK3126c Clocked 1.5G Memory: 1G+16G
Interface: SD/Mini USB/USB 2.0/Power/Earphone Multi-Media: Video/Audio/Picture
Other Functions: Remote Control/Time/Power On / Off/Key/Auto Play/Picture Playback Adjustment Speaker: 2×2W Speakers
OSD Language: Multi OSD Language Adapter: DC-In 5V/1.5A
User's Manual: One WiFi: 802. 11b/g/n 2.4G
Highlight:

WiFi digital photo frame

10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos Product Introduction



Industry-specific attributes
Product name:Wifi Digital Photo Frame
Size 10'' inch IPS screen
Frame Material:ABS Frame
Function:WIFI, Video Playback, MP3
Plug and Play Micro SD Card: Supports direct playback from up to 32GB Micro SD card and USB drive to expand storage or import, export, and backup files. No built-in memory.
Installation:wall-mountin wall/desktop

system configuration
CPU:Rockchip RK3126c Clocked 1.5G
RAM:1G
Memory:16GB
system:Android 8.1

Display parameters and performance:
IPS screen:10. 1"IPS screen
Resolution:1280*800 216.96(W)×135.6(H) mm
contrast ratio:1000
brightness:320cdm2
touch screen:5 point capacitive touch screen
Contrast:800:1
Visual angle:85/85/85/85
Response time:6ms
Life(hrs):60,000(hrs)
Horizontal frequency:50-70KHZ
Vertical frequency:56-75KHZ
Screen ratio:16:10

network:
WiFi :802. 11b/g/n 2.4G

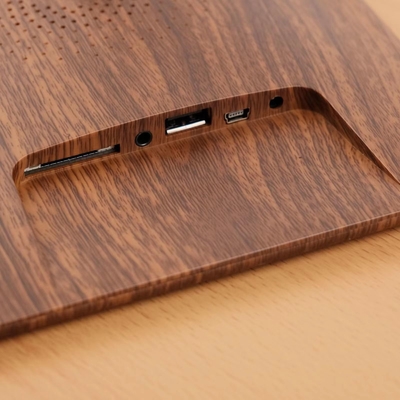

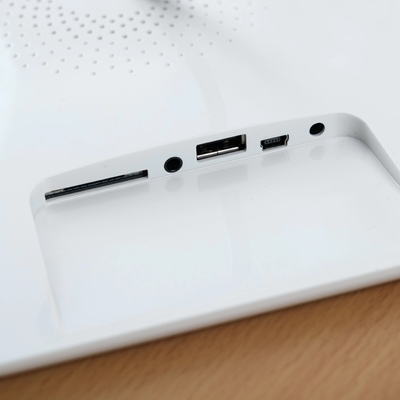

Interface:
SD:SD card, (supports Max 64GB)
Mini USB:USB OTG
USB Host 2.0:x 1pcs
Power jack:DC/4.0 power input
headset port:3.5mm stereo headphone output

Media play:
Video format:MPEG- 1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p
Audio format:MP3/WMA/AAC etc.
Picture format:jpeg,jpg
Speaker:2*2W
OSD language:Multilingual OSD operation in English and Chinese



Accessory:
an instruction manual:Standard
Adapter:Power adapter 5V/1.5A
Desktop Support:Standard



Temperature:
Working temperature:- 10°C~50°C
Storage temperature:-20°C~60°C

Color selection: White / Black......



Application:Wifi,Touch screen,Play advertising videos and images




Product: 10.1" Inch WIFI Digital Photo Frame Resolution: 1280x800 Dots IPS Screen
Brightness: 320 Cdm2 Screen Scale/Display Area: 16:10/ Display Area : 216.96(W)×135.6(H) Mm
CPU: Rockchip RK3126c Clocked 1.5G Memory: 1G+16G
Interface: SD/Mini USB/USB 2.0/Power/Earphone Multi-Media: Video/Audio/Picture
Other Functions: Remote Control/Time/Power On / Off/Key/Auto Play/Picture Playback Adjustment Speaker: 2×2W Speakers
OSD Language: Multi OSD Language Adapter: DC-In 5V/1.5A
User's Manual: One WiFi: 802. 11b/g/n 2.4G

Product Advantages

1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.Wide Temperature of Top of -30℃ to +80℃ for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.







Resolution determines how detailed a bitmap image is.
In general, the higher the resolution of the image, the more pixels it contains, the sharper the image, and the better the quality of the print. At the same time, it also increases the storage space taken up by the files.





10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos Product Drawing

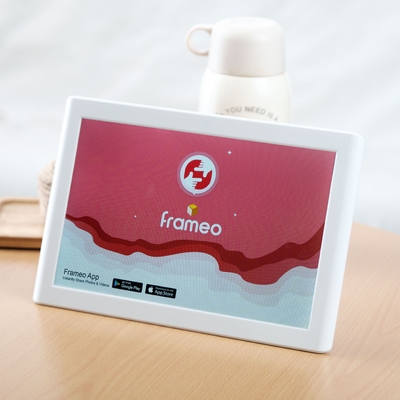

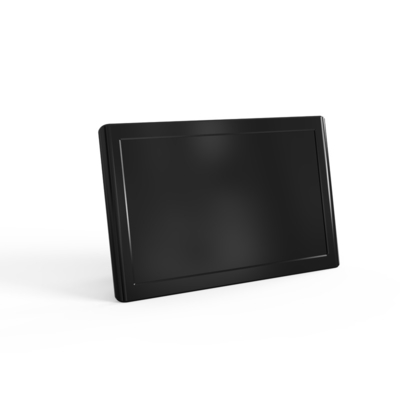

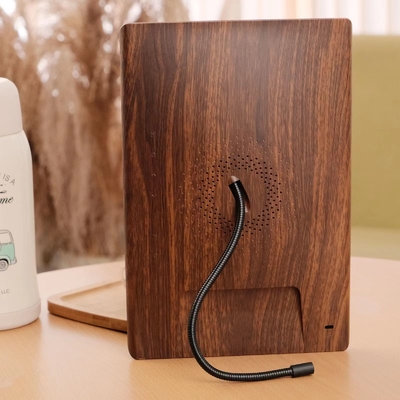

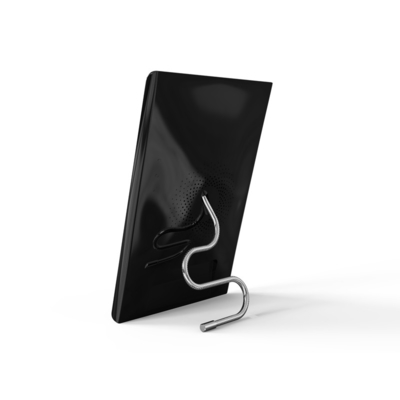

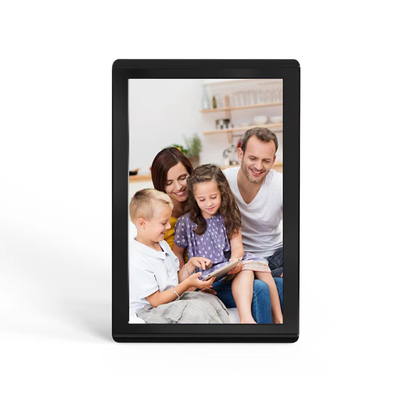

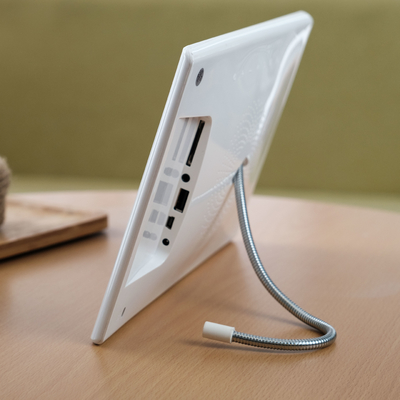

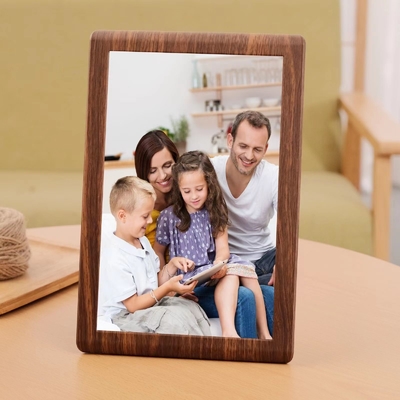

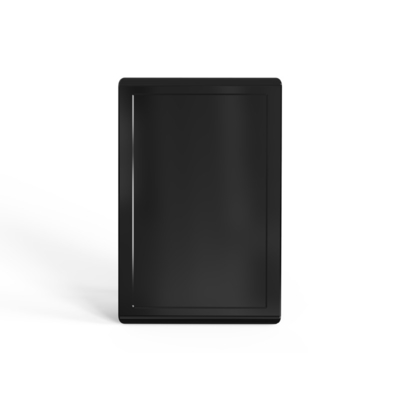

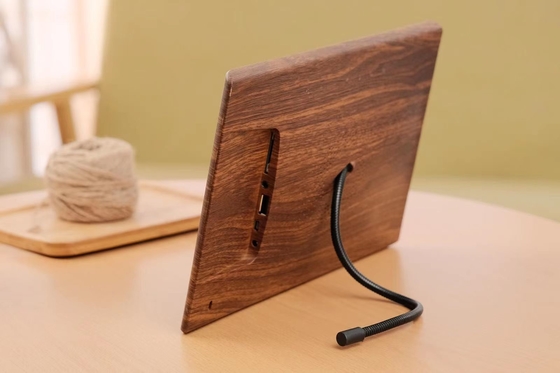

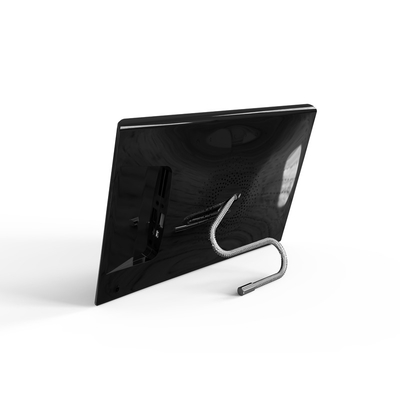

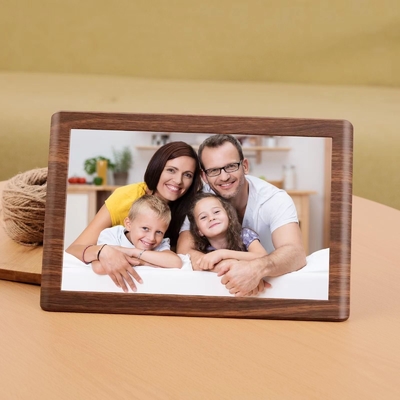

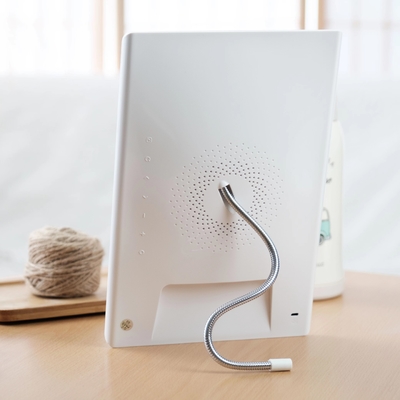

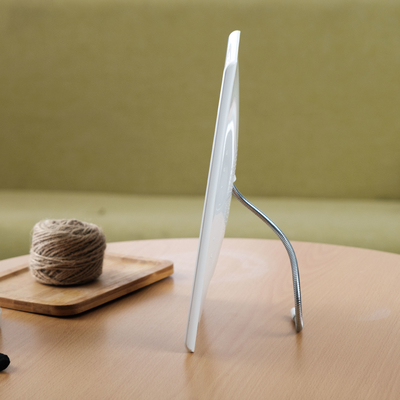

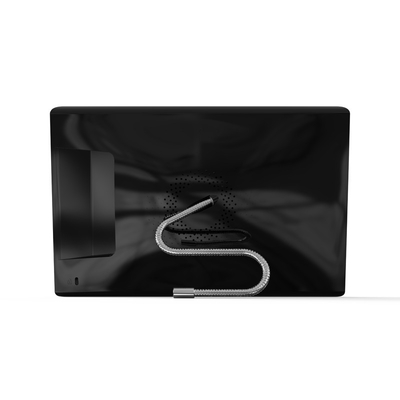

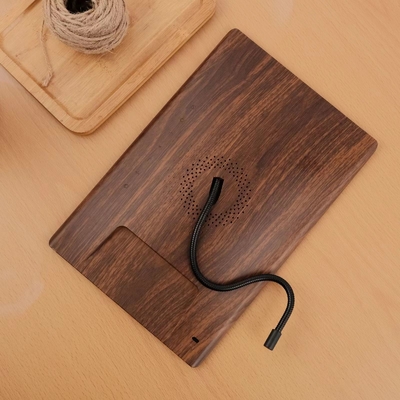

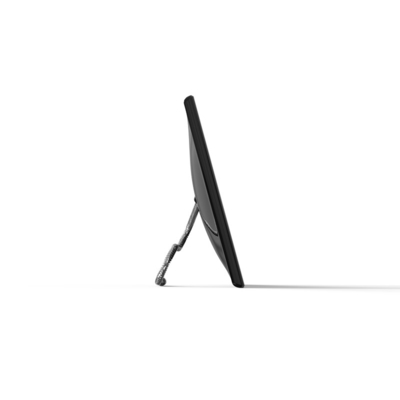

10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos Product Image
10.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 010.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 110.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 210.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 310.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 410.1-inch WiFi digital photo frame 1280x800 IPS screen, automatically rotating pictures and videos 5
