Product Details:
|
| Product: | 4 Inch HDMI TFT Display | Resolution: | 720x720 Pixels |
|---|---|---|---|
| Interface: | MIPI (Customizable） | Touch Screen: | With CTP Optional |
| Viewing Direction: | IPS (80/80/80/80) | Pin Number: | 30 Pins |
| Module Size: | 105.3x109.61x2.3 Mm | Active Area: | 101.92 Mm Diameter |
| Surface Luminance: | 500-1000 Cd/m2 (nits) | Operating Temp.: | -30℃ To +80℃ |
| Storage Temp.: | -30℃ To +85℃ | LED Lifetime: | 40,000 Hours |
| HDMI Interface: | MINI HDMI | Power: | Type C |
| PCB Dimension: | 40*50 MM | Compliance: | REACH & RoHS Compliant & Halogen Free |
| Highlight: | 4 Inch HDMI TFT LCD Display,Circular HDMI TFT LCD Display |
||
HDMI TFT LCD Display 4 Inch Round, Circular TFT LCD 4" With MIPI Interface Product Description
Saef Tech SFTO400XC-7095A-N HDMI TFT display is a 4 inch round TFT display with Automotive Grade TFT, this HDMI TFT display is widely used for Car Dashboard. The round TFT LCD's diagonal size is 4 inch and it's display resolution 720x720 pixels. It supports MIPI interface, supply voltage (Vdd) range from 2.6V to 3.6V, typical 2.8V.
SFTO400XC-7095A-N HDMI TFT LCD module is circular mode with brightness 500-1000 nits (typical value). The module also is available for PCAP (Projected Capacitive Touch Screen) optional. It can be operating at temperatures from -30℃ to +85℃;

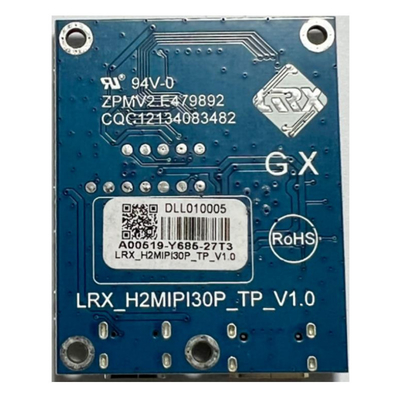

This SFTO400XC-7095A-N circular TFT 4 inch comes with a control board with a HDMI signal interface and a 40-pin connector on board; it is designed to make Raspberry Pi usage become easily. This display has a USB interface Capactive Touch screen overlay on TFT panel. This 4 inch round display is small and compact, you can simply to use it to work with Raspberry Pi, and also you can use this Mini Computer display with any embedded system which has a HDMI signal output. The 4" circular TFT display is 720x720 resolution, which is just enough to run most software, but still small enough that it can be used in portable or embedded projects without the bulk.
| Product: | 4 Inch HDMI TFT Display |
| Resolution: | 720x720 Pixels |
| Interface: | MIPI |
| HDMI Interface: | MINI HDMI |
| Touch Screen: | With CTP Optional |
| Pin Number: | 30 Pins |
| Viewing Direction: | IPS (80/80/80/80) |
| Module Size: | 105.3x109.61x2.3 Mm |
| Active Area: | 101.92 Mm Diameter |
| Surface Luminance: | 500-1000 Cd/m2 (nits) |
| Operating Temp.: | -30℃ To +80℃ |
| Storage Temp.: | -30℃ To +85℃ |
| LED Lifetime: | 40,000 Hours |
| Power: | Type C |
| PCB Dimension: | 40*50 MM |
| Compliance: | REACH & RoHS Compliant & Halogen Free |
HDMI TFT LCD Display 4 Inch Round, Circular TFT LCD 4" With MIPI Interface Product Drawing

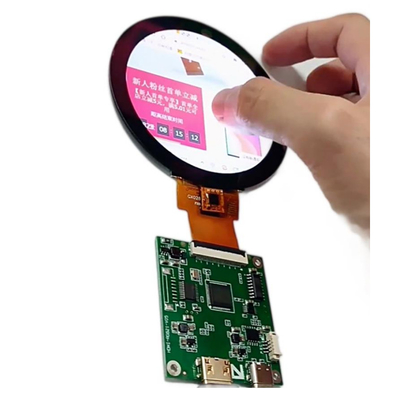

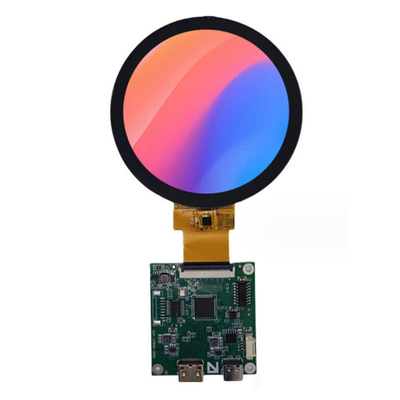

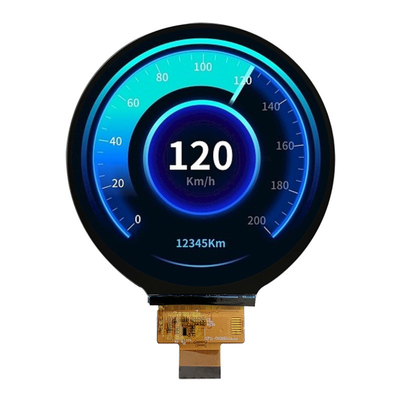

HDMI TFT LCD Display 4 Inch Round, Circular TFT LCD 4" With MIPI Interface Product Image
Factory Facilities and Certificates
SAEF released for HDMI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support HDMI signal output. This series display modules come with a control board with a HDMI signal interface output; it is designed to make Raspberry Pi usage become easily. These displays are featured below advantages:
> Designed to make Raspberry Pi usage becomes easily (Support Rasberry Pi use)
> Support HDMI signal output
> Good touch response
> Fast response time
> Support Raspberry Pi GPIO
> Support mini-PCs, it can work as a computer monitor
> Support RTP with USB interface
> Support PCAP option
> Without Touch panel option is available
