Product Details:
|
| Product: | 10.1 Inch Android Monitor | Resolution: | 1280×800 |
|---|---|---|---|
| Brightness: | 300 Cdm2 | Screen Scale/Display Area: | 16：10/ Display Area : 219×137mm |
| CPU: | Rockchip RK3128 Quad Core Arm Cortex-a7 Processor, Main Frequency 1.4GHz | RAM: | 1GB |
| ROM: | 16GB | System: | Android 7.1 OS |
| WIFI: | 802.11b/g/n | Network: | WIFI/Ethernet/Bluetooth/3G/4G/microphone |
| Interface: | TF/USB 2.0/RJ45/Earphone/HDMI Out/Power | Multi-Media: | Video/Audio/Picture |
| Wireless Mouse Keyboard: | Support | Speaker: | 2×2W Speakers |
| Camera: | Standard 2MP | OSD Language: | Chinese, English, German, Korean, Russian, French, Spanish, Arabia Etc OSD Operations |
| Software Support: | Free Installation Applications (maps, Games, E-mail, Self Developing Apps, Etc.) | Adapter: | One, Specifications: 12V/2A |
| Standard Configuration: | Capacitive Touch Screen, Camera, Mic, RJ45, WIFI, Bluetooth | User's Manual: | Yes |
| Highlight: | 1280*800 Android Monitor,10.1 Inch Android Monitor,RK3128 Android Monitor |
||
10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Introduction
Size:10.1 inch FULL HD IPS screen(14 inch for optional)
Resolution:1280*800/1920×1080
Installation: L-TYPE DESKTOP ANDROID ALL-IN-ONE
Features:
1. CPU: High Performance and Energy Saving CPU KR3128/A64/KR3566/KR3568//RK3288/KR3399
2. RAM: 2GB (1GB/4GB/optional) (8GB OEM)
3. ROM: 8GB (16G optional) (32G / 64G OEM)
4. Screen: 10inch/14INCH I PS Screen(Highlight LED Backlight)
5. Touch Screen: 10 Points Capacitive multi-touch screen optional
6. Operating System: Android 6.0/7.1/8.1/9.0/11......
7.Interface: DC input/USB/Mini-USB(OTG)/Audio/RJ45 Ethernet/SD card(POE power/HDM-I Optional)
8.Installation method:Wall mounted/In Wall/Holder/Stand/OEM Open frame
SFLR102T Android boots up and automatically rotates pictures or videos
Conference Video | Service Rater I Desktop Advertising Display | Food Order Machine
High & Low Temperature Testing Passed
TD series could be operated under the teperature from20C to 60°C
BOOT-UP LOGOCUSTOM
Display screen parameters:
Screen ->10.1 inch FULL HD IPS screen
Standard Configuration:
CPU-> Rockchip RK3128 quad core arm cortex-a7 processor, main frequency 1.4GHz
RAM-> 1GB
ROM ->16GB
System ->Android 7.1 OS
Network Configuration:
WIFI-> 802.11b/g/n
Ethernet ->Supports connection to the RJ45 network interface
Bluetooth ->BT 4.2
3G/4G ->Support external 3G/4G USB dongle
Application:
Application:
face recognition, robot display, pos system,security monitoring, smart home, self-service terminal, medical device display, advertising information display, rail traffic display,video call.etc.
| Product: | 10.1 Inch Android Monitor | Resolution: | 1280×800 |
|---|---|---|---|
| Brightness: | 300 Cdm2 | Screen Scale/Display Area: | 16:10/ Display Area : 219×137mm |
| CPU: | Rockchip RK3128 Quad Core Arm Cortex-a7 Processor, Main Frequency 1.4GHz | RAM: | 1GB |
| ROM: | 16GB | System: | Android 7.1 OS |
| WIFI: | 802.11b/g/n | Network: | WIFI/Ethernet/Bluetooth/3G/4G/microphone |
| Interface: | TF/USB 2.0/RJ45/Earphone/HDMI Out/Power | Multi-Media: | Video/Audio/Picture |
| Wireless Mouse Keyboard: | Support | Speaker: | 2×2W Speakers |
| Camera: | Standard 2MP | OSD Language: | Chinese, English, German, Korean, Russian, French, Spanish, Arabia Etc OSD Operations |
| Software Support: | Free Installation Applications (maps, Games, E-mail, Self Developing Apps, Etc.) | Adapter: | One, Specifications: 12V/2A |
| Standard Configuration: | Capacitive Touch Screen, Camera, Mic, RJ45, WIFI, Bluetooth | User's Manual: | Yes |

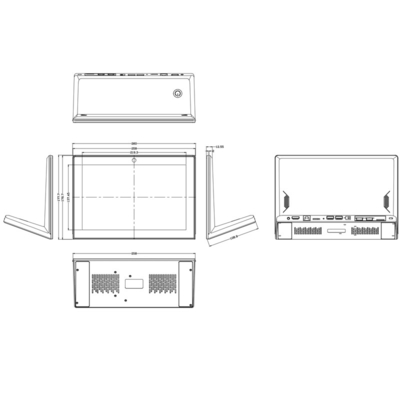

10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Drawing

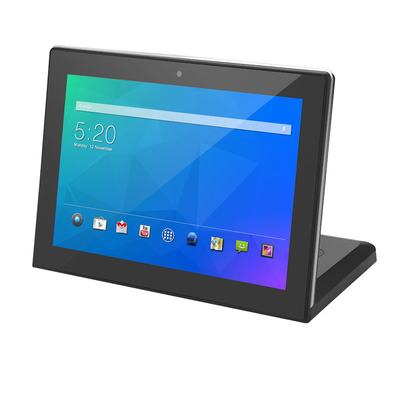

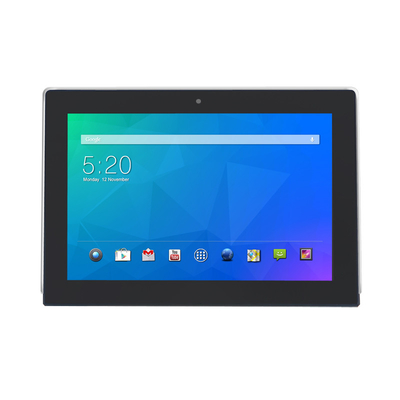

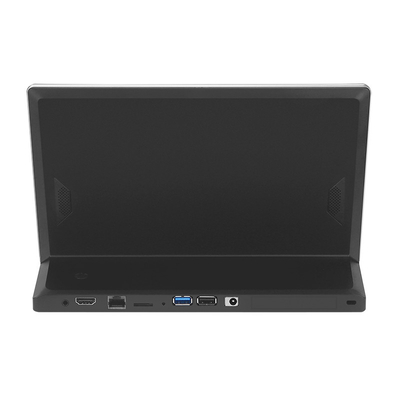

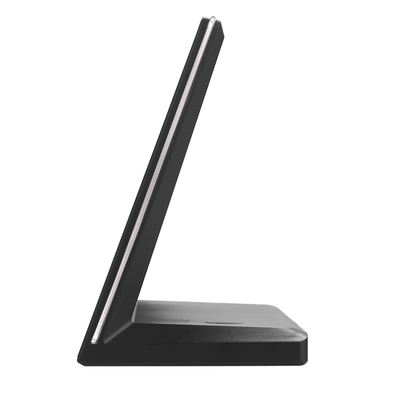

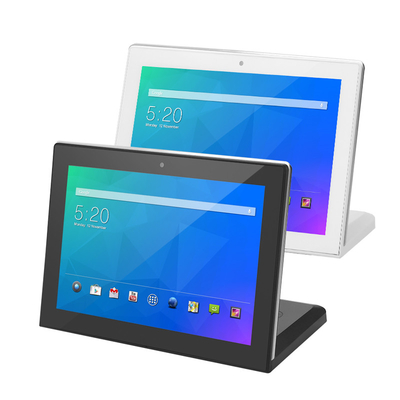

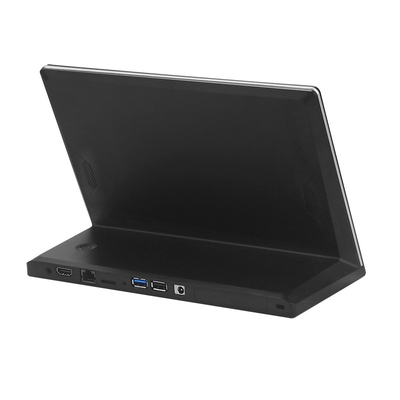

10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Image
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
Factory Facilities and Certificates
Search Keyword: Tablet PC,Industrial Tablet,Android Tablet PC,Digital Signage Android Tablet PC,Android Touch All In One PC,Touch screen monitor,Advertising display screen,Android monitor,Android advertising player,Touch screen monitor.
