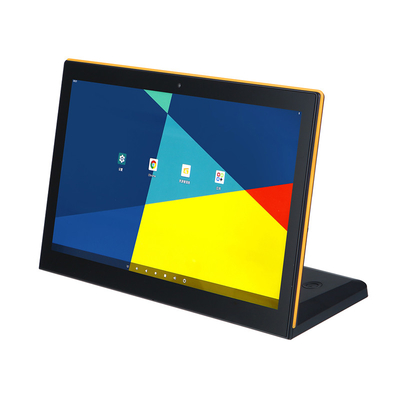

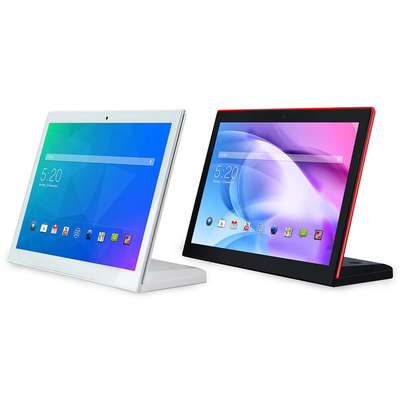

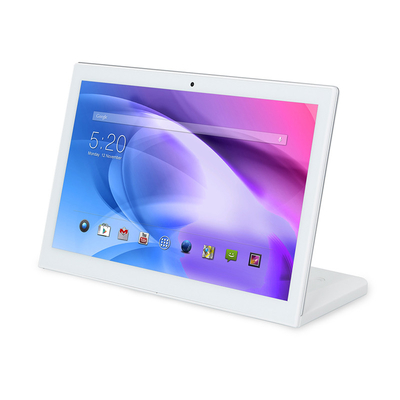

14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor

14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor
14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor
14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor

Large Image :  14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: LR140T-3568
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month
Contact Now

14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor

Description
Product: 14 Inch Android Monitor Resolution: 1920×1080
Brightness: 300 Cdm2 Display Area: 308×173mm(16:9)
RAM: 2GB ROM: 16GB
System: Android 11 System WIFI: 802.11b/g/n
CPU: RK3568 Quad Core Multi-Media: Video/Audio/Picture
Wireless Keyboard: Support Speaker: 2×2W Speakers
Camera: Standard 2MP Adapter: One, Specifications: 12V/2A
Highlight:

POE Android Touch Screen Display

,

14 Inch Android Touch Screen Display



About the item LR140T-3568



The 14 inch desktop Android touch screen advertising monitor L-shaped POE monitor is a device designed specifically for commercial advertising and information display. It has the following characteristics:

  1. Screen size: 14 inch display screen, FHD 1920*1080 resolution, providing sufficient space to display advertising content or surveillance footage.
  2. Touch screen: Supports capacitive multi touch, allowing users to interact through touch, suitable for various self-service and information query scenarios.

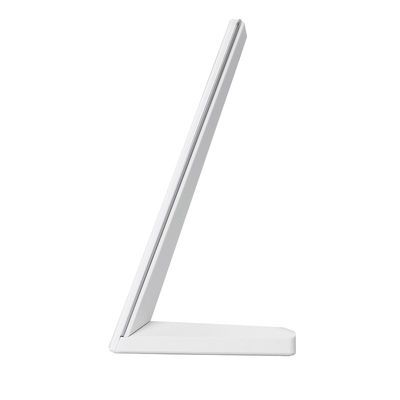

  3. L-shaped design: The L-shaped desktop design allows the device to be used as both an advertising display and a monitor, making it suitable for placement at the front desk, reception area, or monitoring room.
  4. POE function: Supports Power over Ethernet (POE), transmitting data and power through Ethernet cables, simplifying wiring and facilitating installation.
  5. Operating System: Built in Android operating system, users can install various applications as needed, such as advertising playback software, information publishing system, etc.
  6. Camera: Equipped with a high-resolution camera, it can be used for video surveillance or video conferencing.

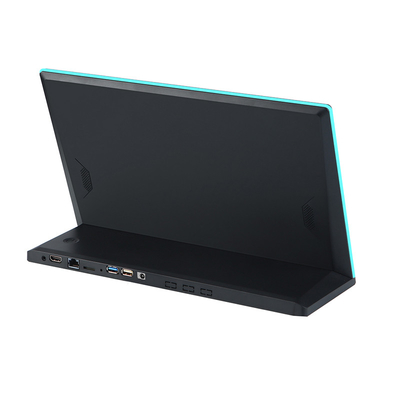

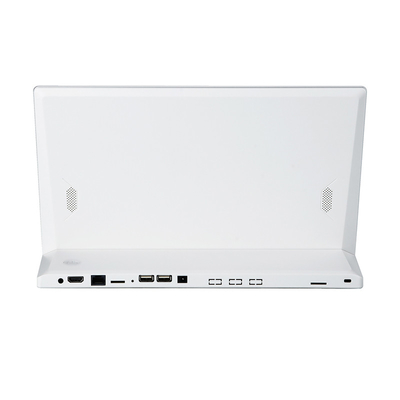

  7. Rich interfaces: Provides multiple interfaces, including USB, RJ45, audio, VGA, etc., for easy connection to external devices.
  8. Application scenarios: Suitable for various occasions such as advertising, retail stores, shopping malls, catering industry, education industry, healthcare, etc.

  9.



    Durability: Adopting industrial grade design to ensure stable operation in various environments.

This 14 inch desktop Android touchscreen advertising monitor L-shaped POE monitor meets the diverse needs of commercial advertising and monitoring with its versatility and flexibility. This Android Touchscreen display LR140T-3568 are typically equipped with the Android operating system, which means they can support multiple types of advertising playback software. Here are some advertising playback software that may be compatible with this device: VLC Media Player, Plex, KMPlayer, Nova Video Player, PLAYit and Next Video Player. These software can be downloaded and installed through the Google Play Store or the corresponding official website. When choosing advertising playback software, consideration should be given to its compatibility, feature richness, and support for the required video formats.





Features



Display Screen 14 inch IPS screen
Resolution 1920×1080
Brightness 300 cdm2
Contrast 1000:1
Screen scale/Display area 16:9 / Display area : 308×173mm
Configuration CPU Rockchip RK3568 quad core A55 processor, clocked 2.0GHz
RAM 2GB
ROM 16GB
System Android 11 system
Network WIFI 802.11b/g/n
Ethernet Supports connection to the RJ45 network interface
Bluetooth BT 4.2
3G/4G Support external 3G/4G USB dongle
Jack TF 1×TF card slots (max support 32GB)
USB 2.0 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 1×RJ45 network interface
Earphone 1×3.5mm headphone jack
HDMI out 1xHDMI out
Power 1×5.5x2.1mm power DC jack
Multi-Media Video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
Picture JPEG,JPG
Other parameters Wireless mouse keyboard Support
Speaker 2×2W speakers
Camera Standard 2.0MP pixel camera (5.0MP pixel camera optional)
OSD language Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Software support Free installation applications (maps, games, e-mail, self developing apps, etc.)
Attachment Adapter One, specifications: 12V/2A
User's Manual One





Product Information



14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 0
14 Inch Desktop Android Touch Screen Advertising Display L-Shaped POE Monitor 1





Package



Body Size Color Box 6pcs/Carton
Length Width Thickness Length Width Height Length Width Height
345 205 116 395 170 255 780 405 275
N.W:1.18KG N.W:1.73KG N.W:10.4KG; G.W.: 11.4KG
