Fast Refresh Eink 2.9 Inch 296x128 Resolution Black White Red E-Ink Epaper Display Module

Fast Refresh Eink 2.9 Inch 128x296 Resolution Black White Red E-Ink Epaper Display Module​ Product Description



SAEF Technology SFEPD290BWR-7020A01 is a 3-Colors 2.9” a-Si, active matrix TFT, Electronic Paper Display (EPD) panel. The panel has such high resolution (112dpi) that it is able to easily display fine patterns. Due to its bi-stable nature, the EPD panel requires very little power to update and needs no power to maintain an image.

Features

1 a-Si TFT active matrix Electronic Paper Display(EPD)
2 Three colors support: White, Black, Red
3 Resolution: 296 x 128
4 Ultra-low power consumption
5 Super Wide Viewing Angle - near 180°
6 Extra thin & light
7 SPI interface
8 RoHS compliant

Storage Temperature TST:-20 - +60 ºC
Storage Humidity HST: 40%RH - 70%RH
Operating Ambient Temperature TOP: 0 - +40ºC
Operating Ambient Humidity HOP: 40%RH - 70%RH


70 %RH Max. (Ta ≦ 40 ºC), 40%RH Min. (Ta ≦ 60 ºC) where Ta is ambient temperature.
No condensation and no frost in absolute ratings of Environment.
The temperature of panel display surface area should be 0ºC Min. and 40ºC Max. Refresh time depends on operating temperature.
Reddish on the edge of black image is normal at high temperature.
Eink Material is Moisture and UV sensitive. The absolute rating operating environments describes the boundary conditions for updating the display while the absolute rating storage environment describe the boundary conditions for a display not updating. While displays are rated to perform according to specification for the warranty period at the absolute specified operating environment, the better the storage condition, the better the E Ink displays will perform. Similar to other moisture and UV sensitive components, we recommend that our displays be stored in temperature and humidity control environments, and whenever possible, under above defined Optimal Storage Condition, away from sunlight, to optimize their performance.

Fast Refresh Eink 2.9 Inch 128x296 Resolution Black White Red E-Ink Epaper Display Module​ Product Drawing

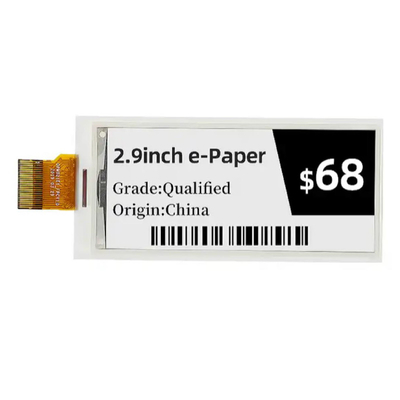

Fast Refresh Eink 2.9 Inch 128x296 Resolution Black White Red E-Ink Epaper Display Module​ Product Image





Epaper Applications and advantages:

The application scenarios are expanded to multiple fields, and the performance advantages are more prominent.

E-ink screens are conducive to the development of different end soft products for rollable, foldable and wearable product applications. As consumer electronics shipments gradually slow down, we believe that major brands are beginning to deploy new display solutions to provide customers with differentiated experiences. We are optimistic about the advantages of electronic ink screens in energy saving, eye protection, etc., and are expected to achieve breakthroughs in consumer electronics terminal products with good user experience, thereby promoting the continuous growth of the market scale.

The e-ink screen has advanced application characteristics and has made great progress in display technology. E-ink screens can be used in applications such as e-books, e-newspapers, portable signs, and foldable displays. The e-ink screen has the characteristics of low power consumption, light weight, durability and convenience in direct light. Compared with traditional LCD screens, the main advantages of e-ink screens are paper-like readability and lower power consumption.

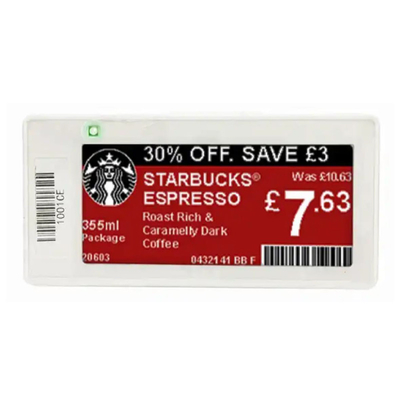

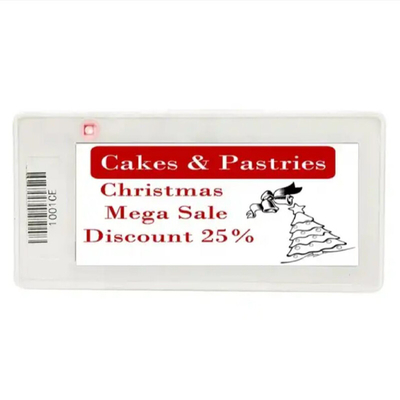

Commercial: Electronic tags are mainly used in retail, office, manufacturing, medical, financial and other fields

Commercial use is currently a key area for the application and development of e-paper products, mainly including nine application fields, including smart retail, smart education, smart healthcare, smart office, smart transportation, smart logistics, smart civil aviation, smart industry, and digital finance. Overall, we believe that commercial market opportunities are expected to increase significantly during the forecast period. Moreover, the technological advantages of digital signage and the incorporation of smart cities, new technology applications such as whiteboards, and interactive signage in different shapes are expected to drive further growth in the market.

At present, e-paper mainly focuses on the paper-like and low-power IoT market, and the fundamental goal of the e-paper industry market is not the application market of liquid crystal displays, but to replace traditional paper and realize various industrial applications of digitalization, recycling and intelligent IoT.

According to the statistics in the "E-paper Industry Market Development Report" of Epaper Insight, CINNO Research, the three major application fields of electronic price tags, e-paper readers and notepads accounted for more than 95% of the global e-paper display module product market in 2020.
