Product Details:
|
| Keywords: | 4.3"DSI HDMI Display | Resolution: | 800x480 Pixels |
|---|---|---|---|
| Support: | HDMI1.3、HDMI1.4、HDCP1.4、HDCP2.2 | Compatible With: | Raspberry Pi、BB Black、Banana Pi |
| CTP Interface: | USB To IIC | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –30℃ To +75℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | HDMI TFT Display,4.3 Inch TFT Display,Capacitive Touch TFT Display |
||
4.3 inch DSI, 4.3 inch HDMI Display Product features
SFHDMI430H-800480A-CT is a HDMI TFT LCD module which integrated TFT LCD, PCAP touch and driving board.
1. 4.3 inch IPS screen, hardware resolution of 800×480 dots resolution.
2. Capacitive 5-point touch control.
3. Tempered glass capacitive touch panel, hardness of >=6H.
4. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4 requires the optional adapter DSI-Cable-15cm.
5. Drive the LCD directly through the Raspberry Pi's DSI interface with refresh rates up to 60Hz.
6. When used with Raspberry Pi, Raspberry Pi OS / Ubuntu / Kali and Retropie are supported, drive-free.
7. Support for controlling backlight brightness through software.
| Product: | 4.3“DSI HDMI Display | Resolution: | 800x480 |
|---|---|---|---|
| Support: | HDMI1.3,HDMI1.4,HDCP1.4,HDCP2.2 | Compatible: | Raspberry PI |
| CTP interface: | USB to IIC | Surface Brightness: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch: | CTP | LED lifetime: | 40,000 hours |
| Top: | –30°C to +75°C | Compliance: | REACH & RoHS compliant |

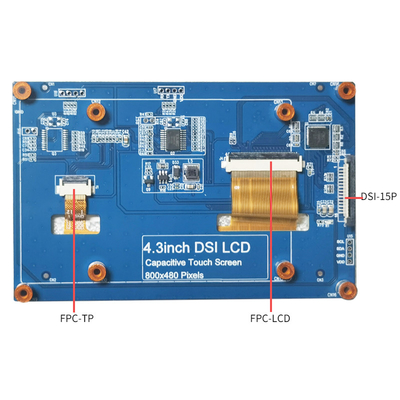

Hardware connections
Using an FFC cable, connect the 4.3inch DSI LCD to the Raspberry Pi's DSI connector.
2. For ease of use, you can screw the back of the 4.3inch DSI LCD of the Raspberry Pi and assemble the copper pillars.
As shown in the following figure:

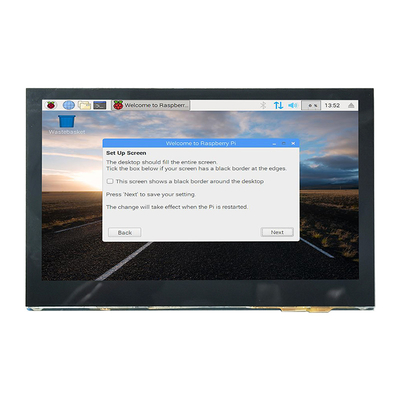

4.3 inch DSI, 4.3 inch HDMI Display Product Image
FACTORY AND FACILITIES
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
