| Keywords: | 10.1 Inch HDMI Display | Resolution: | 1280x800 |
|---|---|---|---|
| CTP Interface: | IIC To USB | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | Viewing Direction: | IPS All Viewing Angle(80/80/80/80) |
| LED Lifetime: | 40,000 Hours | Operating Temp.: | –20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant | Support: | HDMI, Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT |
| Highlight: | ISO14000 PCAP Touch Display,Raspberry Pi PCAP Touch Display,10.1 Inch PCAP Touch Screen |
||

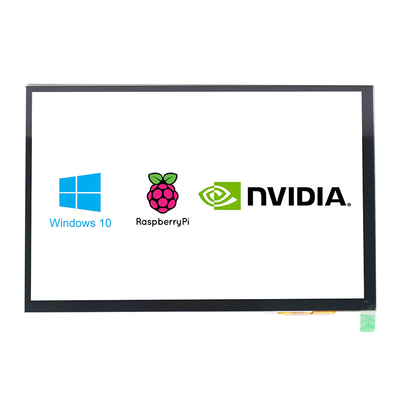

HDMI 10.1 inch Display, 10.1 inch PCAP TFT Display
SFRA101H-1280800A-CT is a 10.1 inch TFT LCD display control module which integrated with LCD screen, capacitive touch screen and HDMI driving board. It perfectly presents the HDMI digital signal output from the PC on the 1280*800 LCD display.
Support HDMI 1.3, HDMI 1.4, HDCP1.4, HDCP2.2 standards.
HDMI sources are compatible with mainstream mini PCs such as Raspberry Pi, BB Black, and Banana Pi.
TOUCH is I2C to USB, no need to install a driver.
The design is mainly used on the Raspberry Pi Raspberry Pi display, and can also be used for other HDMI industrial control small screen touch devices. When used as a Raspberry Pi display, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-touch, and when used as a computer monitor, it supports Windows 7/8/10, five-point touch, drive-free.
Product Features:
| Version: | 1 | ||
|
Signal supported
|
HDMI | 480i,480p,576i,576p,720p,1080i,1080p | |
| TOUCH | USB standard | ||
| VGA | Not support | ||

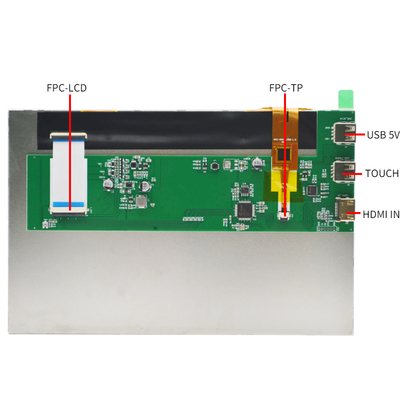

| Main board interface |
input
|
HDMI | A型HDMI贴片母座19Pin贴片 (卧式) Type A HDMI Patch Female Base 19Pin Patch (Horizontal) |
| USB | USB插座AF母座90度直脚无边 (卧式) USB socket AF female base 90 degree straight foot infinity (horizontal) | ||
| Headphone jack | Not Support | ||
| Touch screen interface | Custom 6P pins | FPC-0.5-6PIN 后锁 (卧式) FPC-0.5-6PIN Rear Lock (Horizontal) | |
| LCD interface | Standard LVDS 40P | FPC-0.5-40PIN 后锁 (卧式), FPC-0.5-40PIN rear lock (horizontal)) | |
| Touch panel interface | I2C to USB | USB drive free | USB插座AF母座90度直脚无边 (卧式), USB socket AF female base 90 degree straight foot infinity (horizontal) |
| Power | Input power | USB输入5V(+/-0.5V), USB input 5V (+/-0.5V) | |
| Drive screen voltage | 3.3V | ||
| Power operation | Power-on power on display | ||
| Motherboard standby power consumption | ＜0.25W | ||
| OSD menu | Not support | ||
| Not support | |||
| Not support | |||
HDMI 10.1 inch Display, 10.1 inch PCAP TFT Display Product Image
HDMI 10.1 inch Display, 10.1 inch PCAP TFT Display Product Highlight
| Keywords: | 10.1 Inch HDMI Display | Resolution: | 1280x800 |
|---|---|---|---|
| CTP Interface: | IIC To USB | Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | Viewing Direction: | IPS All Viewing Angle(80/80/80/80) |
| LED Lifetime: | 40,000 Hours | Operating Temp.: | –20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant | Support: | HDMI, Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT |
◆Control board PCB related dimensions and specifications.
1,PCB thickness+ maximum height of the highest component ≤7.8mm
2,PCB length=216mm
3,PCB width=80mm
4,PCB thickness=1.6mm
◆Screw hole specifications: Screw holes are not designed, see structural diagram
◆ Display Module dimension without driving board: (L*W*H)
120.7*76.3*2.8mm without touch,
120.7*76.3*4.7mm without PCAP touch.
