Product Details:
|
| Keywords: | HDMI 7 Inch For Raspberry PI Display | Resolution: | 1024x600 |
|---|---|---|---|
| CTP Interface: | USB | Surface Luminance: | 500 Cd/m2 - 1000 Cd/m2 |
| Touch Screen: | CTP( Capacitive Touch Screen) | Pins: | 19 |
| Viewing Direction: | IPS All Viewing Angle(80/80/80/80) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | Capacitive HDMI TFT Display,Raspberry PI HDMI TFT Display,Raspberry PI Industrial TFT Display |
||
HDMI 7 inch Display, 7 inch PCAP TFT Display
SFRA700H-1024600ACT-01 is a HDMI TFT LCD module which integrated TFT LCD, PCAP touch and driving board.
1- The module perfectly presents the HDMI digital signal output from the PC on the 1024*600 LCD screen.
2- Support HDMI 1.3, HDMI 1.4, HDCP 1.4, HDCP 2.2 standards. HDMI signal source is compatible with mainstream mini PCs such as Raspberry Pi, BB Black, Banana Pi, etc.
3- TOUCH is from USB to I2C, no need to install drivers.
4- The design is mainly used on the Raspberry Pi display, and it can also be used on other HDMI industrial control small screen touch devices. When used as a Raspberry Pi display, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-touch.
5- when used as a computer display, it supports Windows 7/8/10, five-point touch, driver-free.
| Version | 01 | ||
| Signal supported | HDMI | 480i,480p,576i,576p,720p,1080i,1080p | |
| TOUCH | USB standard | ||
| VGA | Not support | ||
| Interface on mainboard | input | HDMI | A type HDMI patch female 19Pin patch (horizontal) |
| USB | MICRO 5P USB female B type 5.9MM (horizontal) | ||
| Earphone interface | NC | ||
| Touch interface | 6 pin | FPC-0.5-6PIN (horizontal) | |
| Display interface | RGB 50 pin | FPC-0.5-50PIN (horizontal) | |
| Audio | Audio output | 8Ω1.5W | 4PIN-1.25 H1.8 Ultra-thin female seat (horizontal) |
| Power supply | Power input | USB input 5V(+/-0.5V) | |
| Display Vop | 3.3V | ||
| Power operation | Power on display | ||
| Mainboard standby power consumption | ＜0.25W | ||
| OSD Menu | Menu (reserve) | Brightness, Contrast, Auto Correction, Phase, Clock, Field Position, Function Setting, Reset, etc. | |
| Language(reserve) | Chinese, English, French, German, Italian, Spanish, Russian, Korean, Japanese, etc. | ||
| button (reserved) | POWER,MENU,UP,DOWN,EXIT | ||

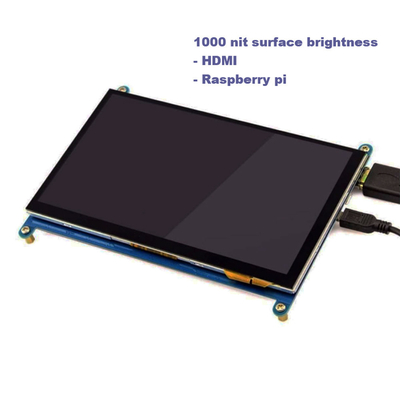

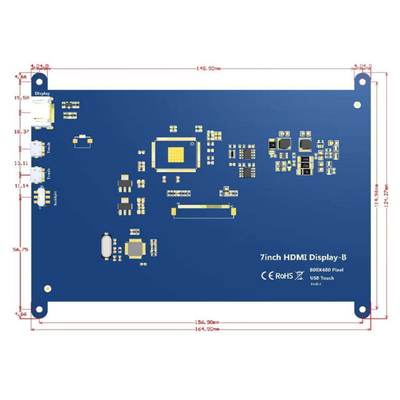

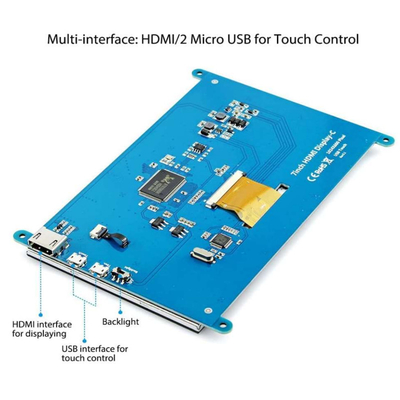

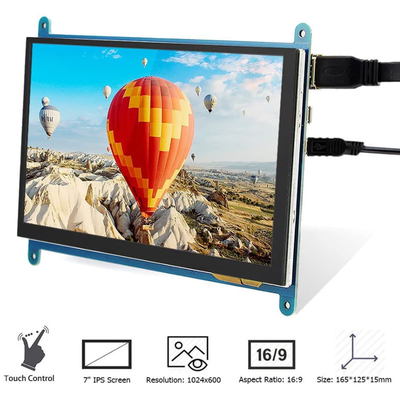

HDMI 7 inch Display, 7 inch PCAP TFT Display Product Image
HDMI interface pin definition
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 Shielded |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 Shielded |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 Shielded |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK Shielded |
| 12 | T.M.D.S DATA CLOCK- |
| 13 | CEC (Consumer Electronics Control Optional) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC) |
| 16 | SDA(DDC) |
| 17 | DDC/CEC Ground |
| 18 | +5V (power supply) |
| 19 | Hot swap probe cable |
USB( 5V ) pin definition
| 1 | VCC |
| 2 | NC |
| 3 | NC |
| 4 | NC |
| 5 | GND |
USB TP Pin definition
| 1 | VCC |
| 2 | D- |
| 3 | D+ |
| 4 | NC |
| 5 | GND |
Speaker interface Pin Definition
| 1 | ROUT+ |
| 2 | ROUT- |
| 3 | LOUT- |
| 4 | LOUT+ |
6,LCD pin definition
| 1 |
VLED+
|
Power for LED backlight (Anode)
|
| 2 |
VLED+
|
Power for LED backlight (Anode)
|
| 3 |
VLED-
|
Power for LED backlight (Cathode)
|
| 4 |
VLED-
|
Power for LED backlight (Cathode)
|
| 5 |
GND
|
Power ground
|
| 6 |
VCOM
|
Common voltage
|
| 7 |
DVDD
|
Power for Digital Circuit
|
| 8 |
MODE
|
DE/SYNC mode select
|
| 9 |
DE
|
Data Input Enable
|
| 10 |
VS
|
Vertical Sync Input
|
| 11 |
HS
|
Horizontal Sync Input
|
| 12 |
B7
|
Blue data(MSB)
|
| 13 |
B6
|
Blue data
|
| 14 |
B5
|
Blue data
|
| 15 |
B4
|
Blue data
|
| 16 |
B3
|
Blue data
|
| 17 |
B2
|
Blue data
|
| 18 |
B1
|
Blue data
|
| 19 |
B0
|
Blue data(LSB)
|
| 20 |
G7
|
Green data(MSB)
|
| 21 |
G6
|
Green data
|
| 22 |
G5
|
Green data
|
| 23 |
G4
|
Green data
|
| 24 |
G3
|
Green data
|
| 25 |
G2
|
Green data
|
| 26 |
G1
|
Green data
|
| 27 |
G0
|
Green data(LSB)
|
| 28 |
R7
|
Red data(MSB)
|
| 29 |
R6
|
Red data
|
| 30 |
R5
|
Red data
|
| 31 |
R4
|
Red data
|
| 32 |
R3
|
Red data
|
| 33 |
R2
|
Red data
|
| 34 |
R1
|
Red data
|
| 35 |
R0
|
Red data(LSB) |
| 36 |
GND
|
Power Ground
|
| 37 |
DCLK
|
Sample clock
|
| 38 |
GND
|
Power Ground
|
| 39 |
L/R
|
Left / right selection
|
| 40 |
U/D
|
Up/down selection
|
| 41 |
VGH
|
Gate ON Voltage
|
| 42 |
VGL
|
Gate OFF Voltage
|
| 43 |
AVDD
|
Power for Analog Circuit
|
| 44 |
RESET
|
Global reset pin.
|
| 45 |
NC
|
No connection
|
| 46 |
VCOM
|
Common Voltage
|
| 47 |
DITHB
|
Dithering function
|
| 48 |
GND
|
Power Ground
|
| 49 |
NC
|
No connection
|
| 50 |
NC
|
No connection
|
Touch panel Pin Definition
| 1 | VDD | |
| 2 | GND | |
| 3 | TP-INT | |
| 4 | TP-RST | |
| 5 | TP-SCL | |
| 6 | TP-SDA |
