Product Details:
|
| Product: | 2.0" TFT LCD | Display Technology: | IPS, All Viewing Angles |
|---|---|---|---|
| Resolution: | 240x320 Dots | Interface: | 8 Bit Parallel |
| Pin Number: | 22 Pins | Connection: | ZIF (customizable） |
| Surface Luminance: | 400 Cd/m2 | Operating Temp.: | -20℃ To +70℃ |
| Contrast Ratio: | 800 : 1 | Color: | 262K |
| Warranty: | 1 Year | Compliance: | REACH & RoHS Compliant |
| Highlight: | 240x320 TFT LCD Display Module,400 Nits TFT LCD Display Module,IoT Devices TFT-LCD Display Module |
||
About This Product 2 inch IPS TFT LCD Display: SFTO200JY-7251AN
Elevate your IoT projects with our state-of-the-art 2-Inch High Brightness IPS TFT-LCD Display Module. Designed specifically for innovative applications, this compact display boasts a resolution of 240x320 pixels, delivering stunning visuals and vibrant colors that bring your ideas to life.
Key Features and Benefits:
Applications:
Why Choose Our Display Module?
Our 2-Inch High Brightness IPS TFT-LCD Display is built for performance, durability, and flexibility. Harness the power of exceptional visual clarity and design versatility to enhance user interaction in your IoT applications. With its reliable features and user-friendly integration, you can focus on what matters most—bringing your innovative ideas to market.
Order Yours Today!
Transform your IoT device projects with the ultimate display solution. Order the 2-Inch High Brightness IPS TFT-LCD Display Module today and experience the perfect blend of quality, performance, and affordability. Available now for shipping across the USA!
Product Specification
| Item | Specification |
| Display Mode | Normally Black, Transmissive |
| Viewing Direction | ALL |
| Colors | 262K |
| Drive IC | ST7789P3 |
| Interface Type | 4Wire SPI |
| Dimensional Outline | 34.60(W) x 47.80(H) x 2.03(T) |
| LCD Active Area LCD | 30.60(W) x 40.80(H) |
| Resolution | 240 RGB(H) x 320(V) |
| Pixel Pitch | 0.1275(W) x 0.1275(H) |
| Surface Brightnes | 400 nits |
Mechanical Dimensions
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Logic Supply Voltage | IOVCC | -0.3 | 4.6 | V |
| Analog Supply Voltage | VCC | -0.3 | 4.6 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
| Humidity | RH |
-- |
90%(Max60C) | RH |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 |
- |
| Input Current | Idd |
-- |
20 |
-- |
mA |
Backlight Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Voltage | Vf | 3.0 | 3.2 | 3.4 | V |
| Forward Current | If |
-- |
60 |
-- |
mA |
| Operating Life Time |
-- |
30000 | 40000 |
-- |
Hrs |
Interface Pin Definition
|
Pin.No |
Symbol | Description |
| 1 | LED+ | Anode of Backlight |
| 2 | LED- | Cathode of Backlight |
| 3-4 | NC | |
| 5 | IOVCC | Power supply for interface( 1.8V-3.3V) |
| 6 | VCC | Power supply for Analog(2.8V-3.3V) |
| 7-14 | DB7-DB0 | Parallel data input / output. |
| 15 | RD |
Read enable in 8080 MCU parallel interface. |
|
16 |
WR |
Write enable in parallel interface. Display data/command selection pin in 4-line serial interface. |
|
17 |
RS |
Register select pin RS=’ 1’ : Display data. RS=’0’ : Command data. |
| 18 | CS |
Chip select pin(“LoSw” enable) |
| 19 | TE | Tearing effect signal is used to synchronize MCU to frame memory |
| 20 | RESET | LCM Reset pin |
| 21 | SDA | Serial data input / output. |
| 22 | GND | Ground |
Optical Characteristics
| Item | Symbol | Condition | Min. | Typ. | Max. | Unit |
|
Transmittance (without Polarizer) |
T(%) |
- |
- |
(4.50) |
- |
% |
|
Transmittance (with Polarizer) |
T(%) |
- |
- |
( 12.20) |
- |
% |
| Contrast Ratio | CR |
Θ=0 Normal viewing angle |
640 | 800 |
- |
- |
| Response Time | TR +TF |
- |
30 | 40 |
msec |
|
| Color Gamut | S(%) | 54 | 60 |
- |
% |

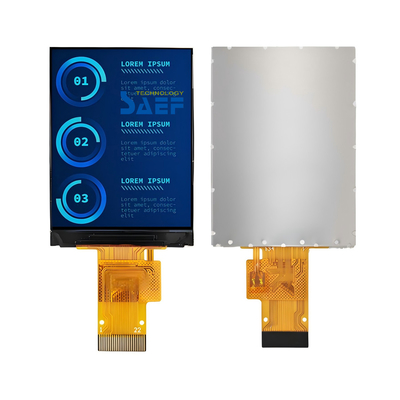

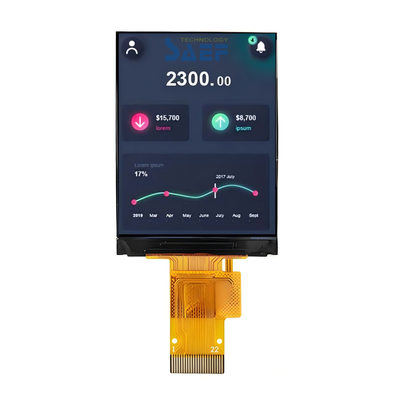

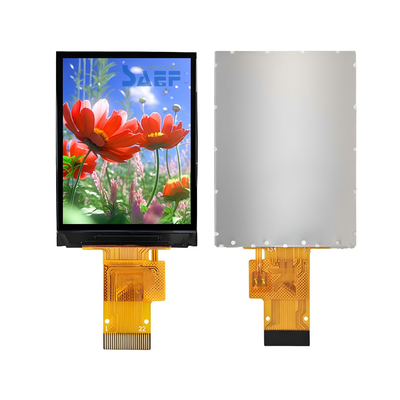

Product Image
More Options: SPI Interface (Model: SFTO200JY-7250AN)
