1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT

1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT
1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT
1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT

Large Image :  1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFOS150JY-7175AN
Document: SFOS150JY-7175AN Specificat...n .pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: The lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT

Description
Product: 1.5-inch OLED Display Resolution: 128 X 128
Glass Type: OLED Optics: All Viewing Angles
Interface: I2C, SPI, 6800, 8080 Optional Outline Dim.: 33.8 (W) X 43.7 (H) X 1.45 (T)
Active Area: 26.86 (W) X 26.86 (H) Operating Temp: -40°C To +80°C
Pin Number: 25 Pins Controller: SH1107
Drive Mode: 1/128 Duty Connector: COG+FPC
Contrast Ratio: 2000 : 1 (Dark Room Contrast) Compliance: REACH & RoHS Compliant
Highlight:

IoT OLED Module

,

1.5 Inch OLED Module

,

128x128 OLED Module



Elevate Your IoT Projects with the 1.5 Inch OLED Module - SFOS150JY-7175AN


Are you looking for a compact, high-resolution display solution for your IoT projects? Look no further! Our 1.5 Inch OLED Module with 128x128 resolution offers crisp, clear visuals in monochrome white and blue, perfect for a variety of applications.



Key Features:

  • High Resolution: 128x128 pixels ensure detailed and sharp display quality.
  • Monochrome Display: Available in white and blue, ideal for low-power consumption and high contrast.
  • Compact Size: 1.5 inches makes it perfect for space-constrained IoT devices.
  • Multiple Interfaces: Supports both SPI and I2C communication, ensuring compatibility with a wide range of microcontrollers.
  • Low Power Consumption: Ideal for battery-powered IoT devices, ensuring long-lasting performance.
  • Wide Viewing Angle: Provides clear visibility from multiple angles, enhancing user experience.
  • Best Price in the USA: Affordable without compromising on quality.



Ideal for:

  • IoT Devices: Smart home systems, environmental sensors, and more.
  • Wearable Technology: Fitness trackers, smartwatches, and other wearable gadgets.
  • Embedded Systems: Arduino, Raspberry Pi, and other microcontroller projects.
  • Industrial Use: Control panels, monitoring systems, and IoT applications.



Why Choose Our 1.5 Inch OLED Module?

  • Durability: High-quality materials ensure long-lasting performance.
  • Versatility: Suitable for a wide range of applications, from consumer electronics to industrial use.
  • Ease of Use: Simple setup and integration with popular platforms.
  • Customer Support: Dedicated support team to assist you every step of the way.



Order Now and Get the Best Price in the USA!
Contact Us: For more details or to place an order, email us at sales2@saef.com.cn



Don't miss out on this incredible offer! Upgrade your IoT projects with our 1.5 Inch OLED Module today!





Mechanical Dimensions



1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 0






Absolute Maximum Ratings



Items  Min.  Max. Unit  Remark
Supply Voltage(VDD)  -0.3 +3.6 V IC maximum rating IC
Supply Voltage(VPP)  -0.3 +17 V IC maximum rating IC
Operating Temperature(TOP)  -30 80

-

Storage Temperature(TST)  -40 85 -





Electrical Characteristics



Items  Symbol  Min.  Typ.  Max.  Unit

Supply Voltage

Logic Supply Voltage IC  VDD 1.65 3.0 3.5 V
Operating(for OLED panel) ) VPP 12.5 13.0 13.5 V



Input Voltage

High Voltage  VIH 0.8 * VDD



-

VDD V
Low Voltage  VIL VSS



-

0.2 * VDD V



Output Voltage

High Voltage  VOH 0.8 * VDD



-

VDD V
Low Voltage  VOL VSS



-

0.2 * VDD V





Electro-Optical Characteristics



Items  Symbol  Min.  Typ.  Max.  Unit  Remark
Operating Luminance  L 80 100

-

cd/m2 100% pixels on
Power Consumption  P

-

120 150 mW 30% pixels on
Frame Frequency  Fr

-

100

-

Hz

-

Color Coordinate

Blue

CIE x 0.25 0.29 0.33



CIE1931



Darkroom

CIE y 0.29 0.33 0.37
Response Time  Rise Tr

-

10

-

us

-

Decay Td

-

10

-

us

-

Contrast Ratio Cr 10000:1

-

-

-

Darkroom
Viewing Angle  △θ 160

-

-

Degree

-

Operating Life Time Top 20,000

-

-

Hours L= 100 cd/m2

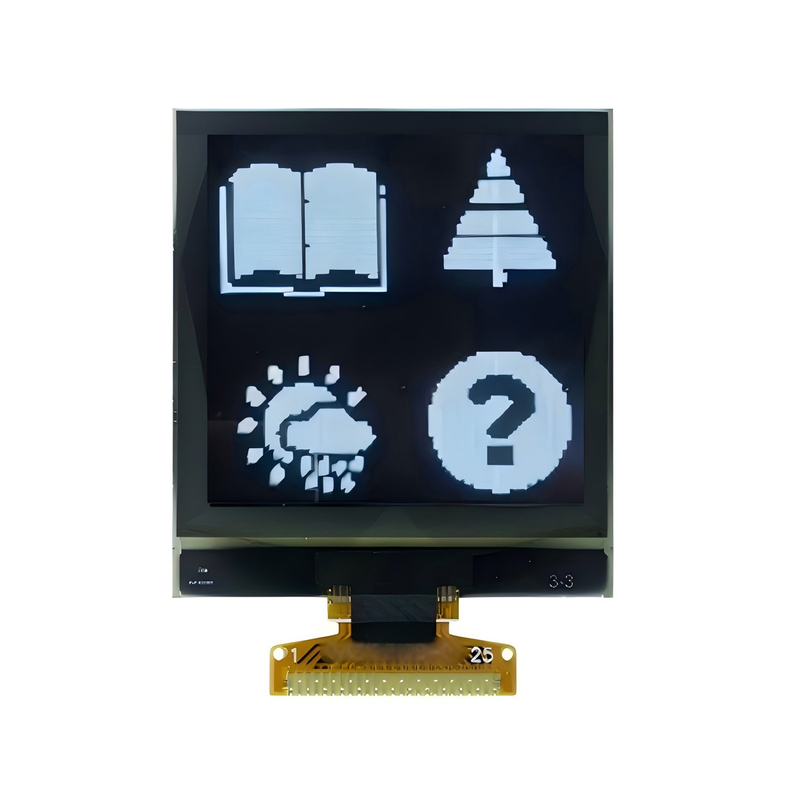

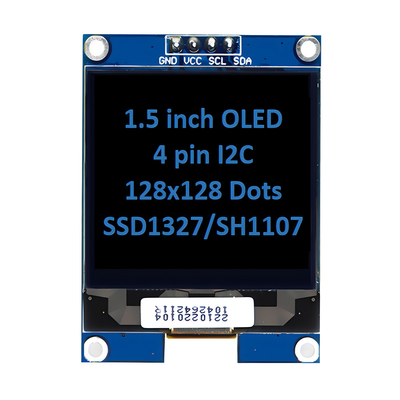

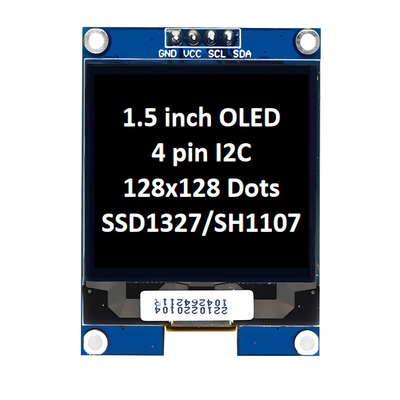

Product Image

1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 11.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 2

1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 31.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT 4
