Product Details:
|
| Product: | 0.96" SPI OLED | Structure: | COG + PCB |
|---|---|---|---|
| Resolution: | 128x64 Pixels | Interfaces: | SPI |
| Viewing Angle: | All Viewing Angle | Pin Number: | 7 Pins |
| Color: | White Or Blue Optional | Module Size: | 27.5(W)×27.8(H)×2.7(T) |
| Glass: | PMOLED (Passive Matrix OLED) | Controller: | SSD1306 Or Equivalent |
| Power Supply: | 3V / 5V | Opereating Temp.: | -40℃ To +85℃ |
| Contrast Ratio: | 2000 : 1 ( Dark Room Contrast ) | Compliance: | REACH & RoHS Compliant |
| Highlight: | 0.96 inch oled display module,128x64 0.96 Inch OLED Display,IoT 0.96 Inch OLED Display |
||
About This Product: SFOM096YZ7-12864WB-01
Introducing the 0.96 Inch OLED Display - SSD1306 SPI, 128x64 – the perfect partner for your Arduino and IoT projects! This high-quality, compact display features a stunning resolution of 128x64 pixels, providing crisp, clear visuals that enhance your project and showcase your data beautifully.
Key Features:
Vivid Performance: With its OLED technology, this display delivers high contrast and deep blacks, ensuring that your graphics and text stand out with vibrant colors and sharp details.
Compact Size: Measuring just 0.96 inches diagonally, it's small enough to fit into tight spaces while still providing an impressive viewing area suitable for a variety of applications.
Easy Integration: The SSD1306 controller and SPI interface make it incredibly easy to connect and integrate into your existing Arduino or IoT setups. Get up and running with minimal effort!
Low Power Consumption: Ideal for battery-powered applications, this OLED display consumes very little power, allowing your projects to last longer without frequent charging or battery replacements.
Versatile Applications: Perfect for a wide range of projects, including wearables, portable devices, smart home gadgets, and more. Whether you're displaying simple text messages or complex graphics, this display has you covered.
Why Choose Us?
Best Price in the USA: We offer the most competitive pricing without compromising on quality, ensuring you get the best value for your money.
Excellent Support: Our dedicated customer support team is here to assist you with anything you need, from installation to project ideas.
Upgrade your manufacturing projects with the 0.96 Inch OLED Display - SSD1306 SPI, 128x64. Experience unmatched clarity and reliability at the best price in the USA! Order yours today and begin creating extraordinary displays with ease.
External Dimensions
Interface Pin Definition
| PIN | SYMBOL | Descriptions |
| 1 | GND | Ground of Logic Circuit |
| 2 | VDD | Power Supply for Logic |
| 3 | SCK | Serial clock input. |
| 4 | SDA | Serial data input. |
| 5 | RST | This pin is reset signal input.When the pin is low,initialization of the chip is executed.Keep this pin pull high during normal operation. |
| 6 | DC | This pin is Data/Command control pin.When the pin is pulled high and serial interface mode is selected,the data at SDIN will be interpreted as data.When it is pulled low,the data at SDIN will be transferred to the command register.In I2C mode,this pin acts as SA0 for slave address selection. |
| 7 | CS | Chip Select.Chip is selected when CS0="L". |
Electro-Optical Characteristics
| Items | Symbol | Min. | Typ. | Max. | Unit | Remark | |
| Operating Luminance | L | 80 | 100 | - | cd /m2 | All pixels ON | |
| Power Consumption | P | - | 50 | 60 | mW | 30% pixels ON | |
| Frame Frequency | Fr | - | 105 | - | Hz | - | |
|
Color Coordinate |
Blue | CIE x | 0.11 | 0.15 | 0.19 |
CIE1931 |
Darkroom |
| CIE y | 0.21 | 0.25 | 0.29 | ||||
| Response Time | Rise | Tr | - | 10 | - | us | - |
| Decay | Td | - | 10 | - | us | - | |
| Contrast Ratio | Cr | 10000:1 | - | - | - | Darkroom | |
| Viewing Angle | θ | 160 | - | - | Degree | - | |
| Operating Life Time | Top | 22000 | - | - | Hours | L= 80 cd/m2 | |

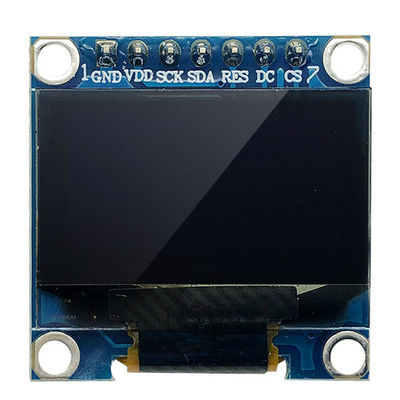

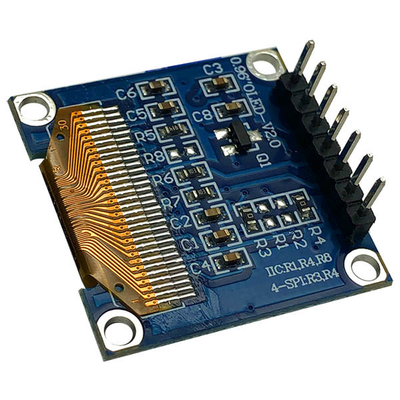

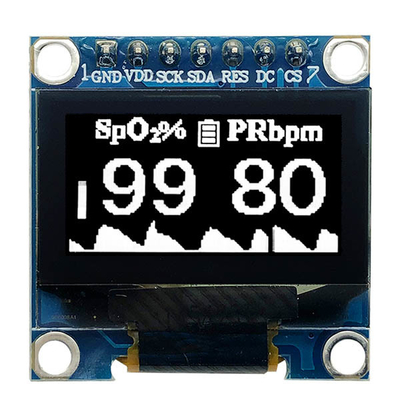

Product Image
