Product Details:
|
| Keywords: | 8 Inch TFT LCD | Resolution: | 1920*1200 |
|---|---|---|---|
| Interface: | LVDS | Pins: | 45 PINS |
| Touch Screen: | Available / Optional | Surface Luminance: | 1200 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours | Viewing Direction: | All Viewing Angles |
| Connection: | Connector Type | Operating Temp.: | –30℃ To +85℃ |
| Driving Board: | Available / Optional | LED Current Constant: | Available / Optional |
| Compliance: | REACH & RoHS Compliant | Certification: | ISO9001:2015 / ISO14000:2015 |
| Highlight: | 1200nits TFT LCD,8 Inch TFT LCD,FHD TFT LCD |
||
Introducing the 8 Inch TFT LCD Display - High Brightness, Full HD Resolution for Industrial and Outdoor Applications!
Product Specifications
| Parameter | Specification | Unit | Remark |
| Outline Size | 181.7(H) ×119.8(V) ×5.5(T) | mm | FOG |
| Active Area | 172.224(H) ×107.640(V) | mm | Note 1.1 |
| Brightness | 1000-1200 | cd/m² | - |
| Number of Pixels | 1920(H)xRGB×1200 (V) | pixels | - |
| Pixel Pitch | 29.9(H) ×3×89.7(V) | μm | - |
| Pixel Arrangement | RGB Vertical Stripe | - | - |
| Display Colors | 16.7M | - | - |
| Color Gamut | 70%(Min.), 75% (Typ.) | CF @C Light | |
| Display Mode | Normally Black | - | - |
| Viewing Direction | 85/85/85/85 (Typ.) 80/80/80/80 (Min.) | Deg. | CR>=10 |
| Weight | TBD | gram | - |
| interface | 2-port LVDS( 8bit) | - | - |
| IC | FL5893DA | Note 1.2 |
Mechanical Drawing
Pin Description
| No. | Symbol | Function | No. | Symbol | Function |
| 1 | VLED- | Power for LED backlighr (Cathode) | 24 | GND | ground |
| 2 | VLED- | Power for LED backlighr (Cathode) | 25 | OLV2P | LVDS differential data input Positive |
| 3 | VLED+ | Power for LED backlighr (Anode) | 26 | OLV2N | LVDS differential data input Negative |
| 4 | VLED+ | Power for LED backlighr (Anode) | 27 | GND | ground |
| 5 | NC | No connection | 28 | OLVCLKP | LVDS differential data input Positive |
| 6 | GND | ground | 29 | OLVCLKN | LVDS differential data input Negative |
| 7 | ELV3P | LVDS differential data input Positive | 30 | GND | ground |
| 8 | ELV3N | LVDS differential data input Negative | 31 | OLV1P | LVDS differential data input Positive |
| 9 | GND | ground | 32 | OLV1N | LVDS differential data input Negative |
| 10 | ELV2P | LVDS differential data input Positive | 33 | GND | ground |
| 11 | ELV2N | LVDS differential data input Negative | 34 | OLV0P | LVDS differential data input Positive |
| 12 | GND | ground | 35 | OLV0N | LVDS differential data input Negative |
| 13 | ELVCLKP | LVDS differential data input Positive | 36 | GND | ground |
| 14 | ELVCLK N | LVDS differential data input Negative | 37 | I2C _SDA | data input/output for I2C(please let these pins open.) |
| 15 | GND | ground | 38 | I2C _SCL | Clock signal for I2C(please let these pins open.) |
| 16 | ELV1P | LVDS differential data input Positive | 39 | VDD_OTP | Power supply for OTP circuit(please let these pins open.) |
| 17 | ELV1N | LVDS differential data input Negative | 40 | EEPEN | Only test Pin( please let these pins open.) |
| 18 | GND | ground | 41 | VDDIN | Power supply |
| 19 | ELV0P | LVDS differential data input Positive | 42 | VDDIN | Power supply |
| 20 | ELV0N | LVDS differential data input Negative | 43 | VDDIN | Power supply |
| 21 | GND | ground | 44 | VDDIN | Power supply |
| 22 | OLV3P | LVDS differential data input Positive | 45 | VDDIN | Power supply |
| 23 | OLV3N | LVDS differential data input Negative |
Optical Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark | |
|
Viewing Angle Range |
Horizontal |
Θ3 |
CR > 10 |
80 | 85 | - | Deg. |
Note 6.1 |
| Θ9 | 80 | 85 | - | Deg. | ||||
|
Vertical |
Θ12 | 80 | 85 | - | Deg. | |||
| Θ6 | 80 | 85 | - | Deg. | ||||
| Contrast Ratio | CR |
Θ = 0 |
1000 | 1200 | - |
HC+APF Note 6.2/6.3 |
||
| Cell Transmittance | Tr | 3.8 | 4.5 | - | % | |||
|
Chroma@CIE1931 |
Rx |
Θ = 0 |
0.654 | 0.674 | 0.694 |
@C Light Note 6.4 |
||
| Ry | 0.302 | 0.322 | 0.342 | |||||
| Gx | 0.249 | 0.269 | 0.289 | |||||
| Gy | 0.582 | 0.602 | 0.622 | |||||
| Bx | 0.113 | 0.133 | 0.153 | |||||
| By | 0.095 | 0.115 | 0.135 | |||||
| Wx | 0.276 | 0.296 | 0.316 | |||||
| Wy | 0.318 | 0.338 | 0.358 | |||||
| Color Gamut | Θ = 0 | 70 | 75 | - | % | |||
| Response Time | Tr+Tf |
Ta= 25 C Θ = 0 |
- |
30 | 35 | ms | Note 6.5 | |
Reliability Test Parameters
| No | Items | Conditions |
| 1 | High Temperature Storage test(HTS) | 85℃ , 240hrs, Non-operational |
| 2 | Low Temperature Storage test(LTS) | -30℃ , 240hrs, Non-operational |
| 3 | High Temperature Operating test(HTO) | 85℃ , 240hrs, operational |
| 4 | Low Temperature Operating test(LTO) | -30℃ , 240hrs, operational |
| 5 | Thermal Humidity Operating test(THO) | 60℃/90%RH, 240hrs, operational |
| 6 | Thermal Cycle Storage test(TST) | -30~80℃ , 100cycles, 1hr/cycle, Non-operational |
|
7 |
Image Sticking |
5*5 Pattern, 1hr 25℃±2℃ check pattern Gray 127, after 3 min, the mura must be d isap peared completely |

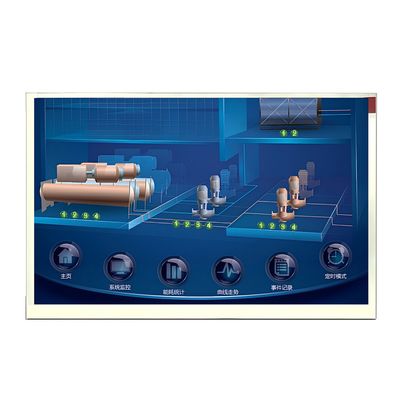

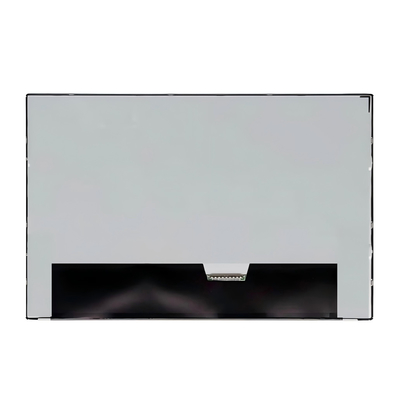

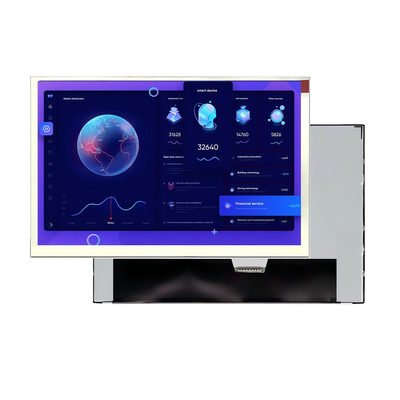

Product Image
