Product Details:
|
| Product: | 10.1 Inch TFT LCD Display | Resolution: | 800*1280 Pixels |
|---|---|---|---|
| Touch Screen: | With CTP | Viewing Direction: | IPS All Viewing Angles |
| Interface: | MIPI | Pin Number: | 40 |
| Connection: | Connector | Surface Luminance: | 300 Cd/m2 (Customizable） |
| Driver IC: | JD9365DA-H3 | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | -20°C To +70°C | CTP Structure: | G + G |
| CTP Driver: | GT9271 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 10.1 Inch TFT LCD Display,Automotive TFT LCD Display,Industrial TFT LCD Display |
||
About this product: SFTO1010YX-7239ACT
Upgrade your devices with the 10.1-Inch TFT LCD Display, a versatile and high-performance solution designed for a wide range of applications. Whether you're developing industrial panels, automotive displays, or interactive kiosks, this display delivers exceptional clarity, durability, and functionality.
Key Features
Applications
Why Choose Us?
As a trusted TFT display manufacturer, we specialize in delivering high-quality, customizable solutions tailored to your needs. Our 10.1-Inch TFT LCD Display combines cutting-edge technology with affordability, making it the ideal choice for your next project.
Explore Our Full Range
From industrial displays to IoT solutions, we offer a wide range of products to meet your requirements. Visit our website to learn more and request a quote today!
General Specifications
| Parameter | Specification | Unit |
| LCD size | 10.1 | inch |
| LCM Outline Dimension | 143.00(H)X228.6(V)X2.6(T) | mm |
| Active area | 135.36(H)X216.58(V) | mm |
| Number of pixel | 800RGB(H)X1280(V) | pixels |
| Pixel pitch H XV | 0.1692(H)X 0.1692(V) | mm |
| Pixel arrangement | RGB Vertical stripe | colors |
| Display colors | 16.7M | |
| Display mode | Normally Black | |
| Color Gamut | Typ. 56%, Min. 52% | NTSC |
| Brightness | Typ:300 , Min: 250 | cd/m2 |
| LED Q'ty | 32 (4Serial 8Paralle) | |
| Viewing angle (CR 10) | Typ:80/80/80/80 | |
| Contrast Ratio | Typ 1000:1,min 800:1 | |
| Driver IC | JD9365DA-H3 | |
| Interface | 3/4 Lane MIPI (Default 4 Lane) | |
| Module Weight | TBD | g |
| Touch IC | GT9271 | |
| Touch structure | G+G |
Outline Drawing
Touchscreen Outline Drawing
Interface Pin Description
| Pin No. | Symbol | Function |
| 1 | NC | No connect |
| 2 | VCC | Power supply 3.3V |
| 3 | IOVCC | Power supply 1.65~3.3V |
| 4 | GND | Ground |
| 5 | RST(GRB) | LCM Global reset(Reset :H= IOVCC) |
| 6 | NC | No connect |
| 7 | GND | Ground |
| 8 | D0- | MIPI differential data input (Negative) |
| 9 | D0+ | MIPI differential data input (Positive) |
| 10 | GND | Ground |
| 11 | D1- | MIPI differential data input (Negative) |
| 12 | D1+ | MIPI differential data input (Positive) |
| 13 | GND | Ground |
| 14 | CLK- | MIPI differential clock input (Negative) |
| 15 | CLK+ | MIPI differential clock input (Positive) |
| 16 | GND | Ground |
| 17 | D2- | MIPI differential data input (Negative) |
| 18 | D2+ | MIPI differential data input (Positive) |
| 19 | GND | Ground |
| 20 | D3- | MIPI differential data input (Negative) |
| 21 | D3+ | MIPI differential data input (Positive) |
| 22 | GND | Ground |
| 23-24 | NC | No connect |
| 25 | GND | Ground |
| 26-29 | NC | No connect |
| 30 | GND | Ground |
| 31 | LEDK | Backlight Cathode |
| 32 | LEDK | Backlight Cathode |
| 33-38 | NC | No connect |
| 39 | LEDA | Backlight Anode |
| 40 | LEDA | Backlight Anode |
Absolute Maximum Ratings
| Item | Symbol | Values | Unit | |
| Min. | Max. | |||
|
Power Voltage |
IOVCC | -0.3 | 3.6 | V |
| VCC | -0.3 | 6.0 | V | |
| AVEE | -- | -- | V | |
| Input Signal Voltage | VI | -0.3 | IOVCC | V |
| Operation Temperature | TOP | -20 | 70 | ℃ |
| Storage Temperature | TST | -30 | 80 | ℃ |
Backlight Characteristics
| Characteristics | Symbol | Min. | Type | Max. | Unit |
| LED Forward current | IF | -- | 180 | 225 | mA |
| LED Forward Voltage of every LED String | VF-string | 11.6 | -- | 13.6 | Volt |
| LED life time |
N/A |
30000 |
40000 |
-- |
Hr |
| Item | Symbol | Condition | Values | |||
| Min. | Typ. | Max. | ||||
|
Viewing angle |
Θu |
CR≧10 |
80 | 85 | - | |
| ΘD | 80 | 85 | - | |||
| ΘL | 80 | 85 | - | |||
| ΘR | 80 | 85 | - | |||
| Response time | TON+TOFF |
θ=Φ =0 ° Normal viewing angle |
- |
30 | 40 | |
| Contrast ratio | CR | 800 | 1000 |
- |
||
| Luminance | L | 280 | 300 | - | ||
| Luminance uniformity | YU | 75 | 80 | - | ||
|
Color chromaticity (CIE1931) |
White |
WX | 0.320 | |||
| WY | 0.346 | |||||
|
Red |
RX | 0.644 | ||||
| RY | 0.329 | |||||
|
Green |
GX | 0.328 | ||||
| GY | 0.565 | |||||
|
Blue |
BX | 0.137 | ||||
| BY | ||||||
| NTSC | 57% | |||||

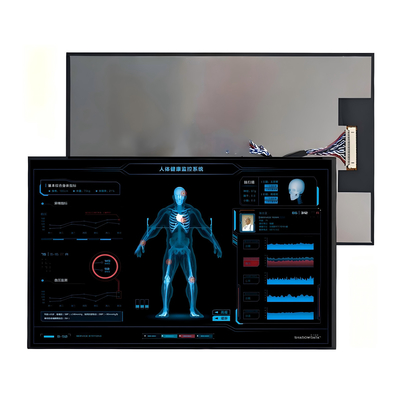

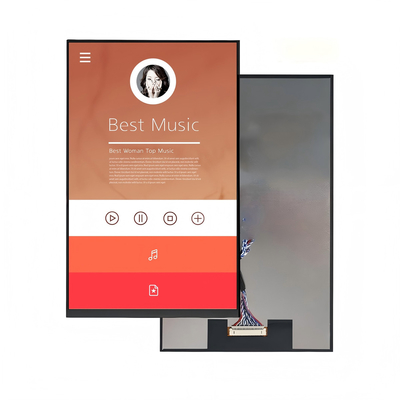

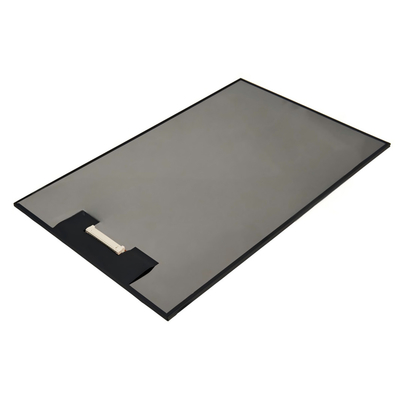

Product Photo
Environmental / Reliability Tests
| No | Test Item | Condition | Remarks |
| 1 | High Temperature Operation | Ts= +70℃ , 240hrs |
Note 1 IEC60068-2-2, GB2423. 2-89 |
| 2 | Low Temperature Operation | Ta= -20℃ , 240hrs | Note 2 IEC60068-2-1 GB2423.1-89 |
| 3 | High Temperature Storage | Ta= +80℃ , 240hrs | IEC60068-2-2 GB2423. 2-89 |
| 4 | Low Temperature Storage | Ta= -30℃ , 240hrs | IEC60068-2-1 GB/T2423.1-89 |
| 5 | High Temperature & Humidity Storage | Ta= +60℃ , 90% RH max, 160 hours |
IEC60068-2-3 GB/T2423.3-2006 |
| 6 | Thermal Shock (Non-operation) | -30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle |
Start with cold temperature, end with high temperature IEC60068-2-14, GB2423.22-87 |
|
7 |
Electro Static Discharge (Operation) |
C=150pF, R=330 Ω , 5 points/panel Air:±8KV, 5 times; Contact: ±4KV, 5 times; (Environment: 15℃ ~ 35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa) |
IEC61000-4-2 GB/T17626.2-1998 |
|
8 |
Vibration (Non-operation) |
Frequency range: 10~55Hz, Stroke: 1.mm Sweep: 10Hz~55Hz~10Hz 2 hours for each direction of X .Y. Z. (package condition) |
IEC60068-2-6 GB/T2423.5-1995 |
| 9 | Shock (Non-operation) |
60G 6ms, ± X, ±Y , ± Z 3 times for each direction |
IEC60068-2-27 GB/T2423.5-1995 |
| 10 | Package Drop Test |
Height: 80 cm, 1 corner, 3 edges, 6 surfaces |
IEC60068-2-32 GB/T2423.8-1995 |
