2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP

2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP
2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP 2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP 2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP 2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP

Large Image :  2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC240H-8269B-T
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: The lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP

Description
Product: 2.4 Inch TFT Display Resolution: 240*320
Touch Screen: Resistive Touch Panel Viewing Direction: IPS All Viewing Angles
Interface: MCU Pin Number: 25 Pins
Connection: Soldering Surface Luminance: 250 Cd/m2
Driver IC: ST7789V LED Lifetime: 40,000 Hours
Compliance: REACH & RoHS Compliant
Highlight:

240x320 TFT LCD Display

,

MCU Interface TFT LCD Display

,

2.4-Inch TFT LCD Display


About this item SF-TC240H-8269B-T

Introducing our high-quality 2.4-Inch IPS TFT LCD Display, featuring a stunning QVGA resolution of 240x320 pixels. Designed for versatility and performance, this display is ideal for various applications, including embedded systems, handheld devices, and IoT projects.

With an advanced MCU interface, integration is seamless, allowing for easy connectivity with your microcontroller projects. The display’s In-Plane Switching (IPS) technology ensures vibrant colors and wide viewing angles, making your graphics come alive with exceptional clarity. Plus, the added resistive touch capability (RTP) allows for intuitive interaction, enhancing user experience through responsive touch controls.

Whether you're developing a new gadget, DIY project, or upgrading existing hardware, our 2.4-Inch IPS TFT LCD Display is the perfect choice for reliable performance and stunning visuals. Elevate your project today with this cutting-edge display!

Key Features:
  • Size: 2.4 inches
  • Resolution: 240x320 (QVGA)
  • Technology: IPS TFT LCD for bright colors and wide angles
  • Interface: Compatible with MCU for easy integration
  • Touch: Resistive Touch Panel (RTP) for user-friendly interaction

Get yours now and bring your projects to life!

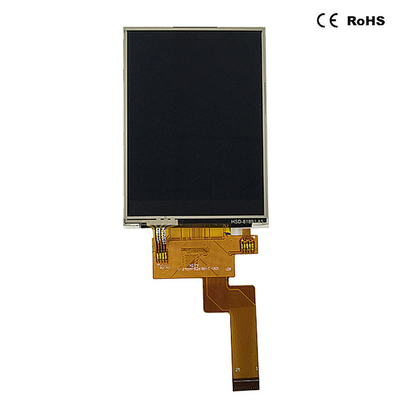

Mechanical Drawing



2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP 0

2.4-Inch IPS TFT LCD Display QVGA 240x320 Resolution MCU interface With RTP 1



Interface Pin Definition



NO. PIN NAME I/O Description
1 LED_K O LED Cathode
2 LED_A O LED Anode
3 GND I Ground
4 VCC I Power Supply 2.8V Voltage
5 IOVCC I Power Supply 2.8V/1.8V Voltage
6 FMARK O Tear effect output pin
7 /CS I Input pin for chip selection signal
8 RESET I LCM Reset input signal
9 RS I Register select signal
10 /WR I Write strobe signal input pin
11 /RD I Read strobe signal input pin
12 GND I Ground
13-20 DB7-DB0 I/O Display Data I/O
21 GND I Ground
22 XR O Touch Panel Pin
23 YD O Touch Panel Pin
24 XL O Touch Panel Pin
25 YU O Touch Panel Pin





Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C





DC Characteristics



Item Symbol Min Type Max Unit Test condition
Operating voltage VDD 2.6 2.8 3.3 V -
Supply current IDD - - 5 mA VDD=2.8V,Ta=25°C
Input voltage VIH 0.8VDD - VDD V -
VIL 0 - 0.2VDD V
Input leakage current IIL -1.0 - 1.0 mA VIN=VDD or VSS



Backlight Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf 3.0 3.2 3.4 V If=80mA
Supply Current If - 80 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd -   - mW -
Luminous Intensity for LCM

-

- 250 - Cd/m2 If=80mA
Uniformity for LCM - 80 - - If=80 mA



Optical Characteristics



No. ITEM Symbol Conditions Specification Unit
Min Typ Max
1 Response Time Tr+Tf 25℃ - 15 - Ms
2 Transmittance (With PL) T(%) - - 7.1 - -
3 Contrast Rate Cr

θ=0,

Normal viewing angle

- 250 - -
4

Viewing

Angle



Hor. θR CR>10 - 80 - Deg
θL - 80 -
Ver. Θ+ - 80 -
Θ- - 80 -

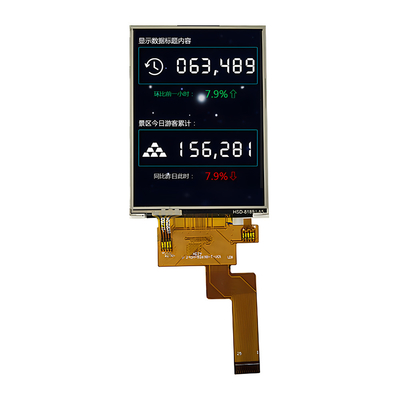

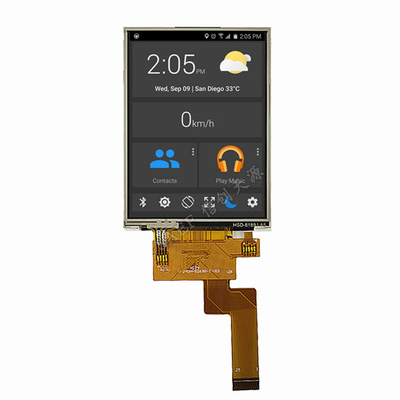

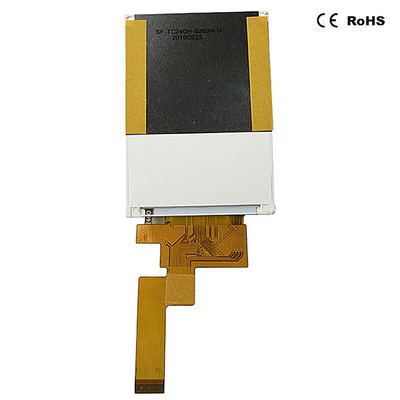

2.4" inch TFT LCD Display Drawing Real Product Demostration
