Product Details:
|
| Product: | 10.4 Inch TFT LCD Display | Resolution: | 1024*600 Dots |
|---|---|---|---|
| Interface: | LVDS | Surface Luminance: | 800 Cd/m2(nits) |
| Viewing Direction: | IPS, All Viewing Angle | Operating Temp: | -20°C To +70°C |
| Storage Temp.: | -30°C To +80°C | Connection: | ZIF FPC |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | LVDS Interface High Brightness TFT,800 Nits TFT LCD Display,10.4 Inch TFT LCD Display |
||
About this item: SFTO1040YX-7241AN
Experience stunning visuals with the High Brightness 10.4-Inch IPS TFT LCD Display, designed to provide exceptional performance in various applications. Featuring an impressive brightness of 800 nits, this LCD display ensures clear and vibrant images, making it suitable for both indoor and outdoor environments.
Brightness: With a brightness rating of 800 nits, this display excels in bright conditions, delivering excellent visibility without compromising image quality.
High-Quality IPS Technology: The In-Plane Switching (IPS) technology offers wide viewing angles and accurate color reproduction, providing a consistent and vivid visual experience from any angle.
Resolution: The display boasts a resolution of 1024x768 pixels, enabling sharp and detailed images, perfect for industrial applications, medical devices, and interactive kiosks.
LVDS Interface: Equipped with a Low Voltage Differential Signaling (LVDS) interface, this display ensures fast and efficient data transfer, making it easy to integrate with various devices and systems.
The 10.4-Inch IPS TFT LCD Display is ideal for a range of applications, including:
Combining high brightness, excellent color accuracy, and versatile connectivity options, the High Brightness 10.4-Inch IPS TFT LCD Display is perfect for professionals seeking reliable and high-quality displays for their projects. Whether you're designing for industrial, medical, or consumer applications, this display offers the performance you need.
Upgrade your display solutions today with the High Brightness 10.4-Inch IPS TFT LCD Display and enjoy enhanced visibility and clarity in all your visual applications!
Product Specification
| Item | Specification |
| Panel Size | 10.4” |
| Number of Pixels | 1024×RGB (3)×768 |
| Active Area | 211.2(H)x 158.48(V) (mm) |
| Pixel Pitch | 0.20625(H)×0.20625(V) x RGB (mm) |
| Outline Dimension | 225.8(W)×174.3(H)×5.6(D) (mm) |
| Number of Colors | 16.7M |
| Display Mode | Transmission mode, normally black |
| Viewing Direction | Full viewing |
| Display Format | RGB vertical stripe |
| Surface Treatment | Anti-Glare |
| Interface | LVDS |
| Backlight | White LED |
| Operation Temperature | -20~+70 ℃ |
| Storage Temperature | -30~80 ℃ |
External Dimension
Maximum Absolute Rating
| Item | Symbol | Min. | Max. | Unit |
| Digital Supply Voltage | VDD | -0.3 | 5.0 | V |
| Back light Power | V | -0.3 | 28 | V |
LCD Operating Conditions
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Digital Power Supply Voltage | VDD | 2.8 | 3.3 | 3.6 | V |
| Current of power | IDD | -- | 0.3 | -- | A |
| VDD | PDD | 1.0 | W | ||
| Inrush current | IRUSH | 2.0 | A | ||
| Back light Powe | V | 8.2 | 9.6 | 10.5 | V |
Interface Pin Definition
| No. | Symbol | Function |
| 1 | NC | No connection |
| 2 | GND | Ground |
| 3 | RIN3+ | LVDS Signal(+)-channel 3 |
| 4 | RIN3- | LVDS Signal(-)-channel 3 |
| 5 | GND | Ground |
| 6 | RXCLK+ | LVDS Clock Signal(+) |
| 7 | RXCLK- | LVDS Clock Signal(-) |
| 8 | GND | Ground |
| 9 | RIN2+ | LVDS Signal(+)-channel 2 |
| 10 | RIN2- | LVDS Signal(-)-channel 2 |
| 11 | GND | Ground |
| 12 | RIN1+ | LVDS Signal(+)-channel 1 |
| 13 | RIN1- | LVDS Signal(-)-channel 1 |
| 14 | GND | Ground |
| 15 | RIN0+ | LVDS Signal(+)-channel 0 |
| 16 | RIN0- | LVDS Signal(-)-channel 0 |
| 17 | GND | Ground |
| 18 | NC | No connection |
| 19 | GND | Ground |
| 20 | SEL6/8 | SELB=”0” 8Bit SELB=”1” 6Bit |
| 21 | NC | No connection |
| 22 | NC | No connection |
| 23 | NC | No connection |
| 24 | REVERSE | Reverse Panel function |
| 25 | GND | Ground |
| 26 | GND | Ground |
| 27 | GND | Ground |
| 28 | VCC | power Voltage for digital circuit 3.3V |
| 29 | VCC | power Voltage for digital circuit 3.3V |
| 30 | VCC | power Voltage for digital circuit 3.3V |
Optical Characteristics
| Item | Symbol | Min. | Typ. | Max. | Unit | |
| Contrast Ratio | CR | - | 700 | - | ||
|
Luminance(center) |
L |
750 |
800 |
- |
cd/m2 |
|
| Luminous tolerance | LU | 70 | 75 | % | ||
| Response Time | Rising + Falling | - | 30 | 35 | ms | |
|
Viewing Angle K=Contrast Ratio>10 |
Horizontal |
θx+ | 80 | 85 | - |
degree |
| θx- | 80 | 85 | - | |||
|
Vertical |
θy+ | 80 | 85 | - | ||
| θy- | 80 | 85 | - | |||
|
Color Chromaticity (CIE1931) |
Red |
x |
Typ- 0.05 |
0.617 |
Typ+ 0.05 |
|
| y | 0.327 | |||||
|
Green |
x | 0.332 | ||||
| y | 0.600 | |||||
|
Blue |
x | 0.146 | ||||
| y | 0.056 | |||||
|
White |
x | 0.299 | ||||
| y | 0.351 | |||||
| Color gamut (NTSC ratio) |
70 |
% |
||||
Backlight Characteristics
| Item | Symbol | Min. | Typ. | Max. | Unit | Remark |
| LED current | ILED | 120 | mA | Total LED | ||
| Forward voltage | VF | 30.6 | V | IF=120mA | ||
| Reverse current | IR | 50 | μA | VR=3.3 V, 1LED | ||
| Power dissipation | Pd | 3960 | mW | Total LED | ||
| Peak forward current | IFP | 30 | mA | 1LED | ||
| Reverse Voltage | VR | 3.3 | V | 1LED | ||

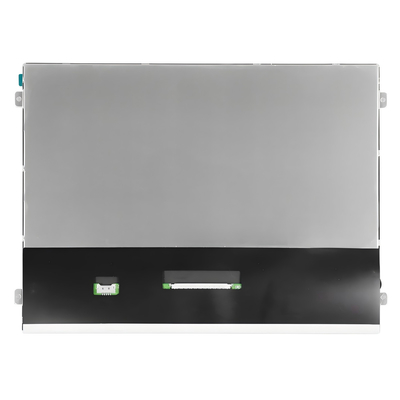

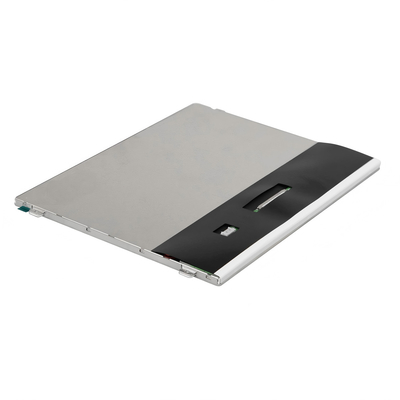

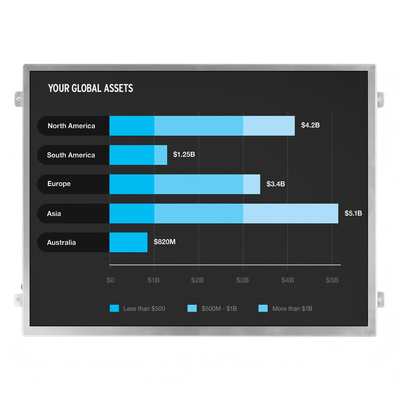

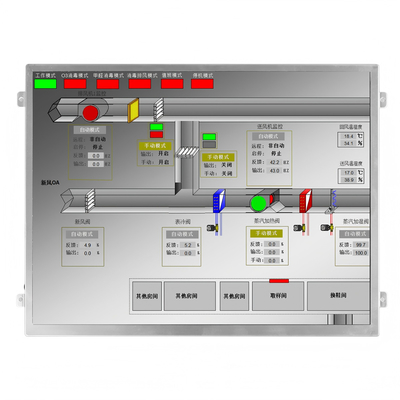

Product Image
