Product Details:
|
| Product: | 7inch TFT LCD Display | Resolution: | 1024 X RGB X 600 |
|---|---|---|---|
| Interface: | RGB | Touchscreen Interface: | I2C |
| Surface Luminance: | 1000 Cd/m2(nits) | Operating Temp.: | -30℃ To +75℃ |
| Storage Temp.: | -30℃ To +80℃ | Pin Number: | 50pins |
| Viewing Direction: | IPS, All Viewing Angle | Active Area: | 154.21(H)x85.92(V) (mm) |
| Touch Screen: | CTP Optional | Surface Treatment: | Hard Coating(3H) |
| Display Colors: | 16.7 M | Connection: | ZIF |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 7-Inch High Brightness TFT,1024*600 TFT LCD Display,1000nits TFT LCD Display |
||
About this item SFTO700XC-7026ACT2, High Brightness 1000 nits 7-Inch IPS TFT LCD Display
Upgrade your projects with our High Brightness 1000 nits 7-Inch IPS TFT LCD Display. Offering a vibrant resolution of 1024 x 600 dots, this display is designed to deliver crystal-clear images and vivid colors, making it ideal for various applications such as industrial machines, handheld devices, outdoor displays, and more.
Key Features:
Why Choose Our 7-Inch IPS TFT LCD Display?
This display is engineered for durability and performance, ensuring long-lasting use in demanding environments. Whether you're developing a prototype or a commercial product, the superior brightness and quality make our display the ideal choice.
Specifications:
Enhance your product's functionality and aesthetics with our High Brightness 7-Inch IPS TFT LCD Display. Order now and take the first step toward delivering exceptional visual performance in your next project!
Product Specification
| Feature | Specifications |
| LCD type | 7.0 inch |
| Resolution (H*V) | 1024(RGB) ×600 |
| Technology Type | a-Si TFT |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| Surface Treatment | Glare |
| Viewing Direction | All |
| Gray Scale Inversion Direction | No |
| OutlineDimensions (W x H x T) (mm) | 218.42* 146.9*9.55 |
| Active Area(mm) | 154.21*85.92 |
| With /Without Touch screen | With CTP |
| Match Connector Type | 50PIN 0.5PITCH |
| Backlight Type | LED |
| Interface | RGB |
| Number of color | 16.7M |
| Driver IC | HX8282A11 HX8696A01 |
| CTP IC | GT911 |
| CTP structure | G+G |
| CTP interface | I2C |
LCD External Dimensions
CTP External Dimensions
Interface Pin Definition
| NO. | PIN NAME | Description |
| 1 | LED-A1 | Power voltage for LED backlight Anode |
| 2 | LED-A2 | Power voltage for LED backlight Anode |
| 3 | LED-K1 | Power voltage for LED backlight Cathode |
| 4 | LED-K1 | Power voltage for LED backlight Cathode |
| 5 | GND | Power ground |
| 6 | VCOM | VCOM voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE or HV mode control.H:DE mode.L:HSD/VSD |
| 9 | DE | Data enable |
| 10 | VS | Vsync signal input |
| 11 | HS | Hsync signal input |
| 12 | B7 | BLUE Data Signal(MSB) |
| 13 | B6 | BLUE Data Signal |
| 14 | B5 | BLUE Data Signal |
| 15 | B4 | BLUE Data Signal |
| 16 | B3 | BLUE Data Signal |
| 17 | B2 | BLUE Data Signal |
| 18 | B1 | BLUE Data Signal |
| 19 | B0 | BLUE Data Signal(LSB) |
| 20 | G7 | GREEN Data Signal(MSB) |
| 21 | G6 | GREEN Data Signal |
| 22 | G5 | GREEN Data Signal |
| 23 | G4 | GREEN Data Signal |
| 24 | G3 | GREEN Data Signal |
| 25 | G2 | GREEN Data Signal |
| 26 | G1 | GREEN Data Signal |
| 27 | G0 | GREEN Data Signal(LSB) |
| 28 | R7 | RED Data Signal(MSB) |
| 29 | R6 | RED Data Signal |
| 30 | R5 | RED Data Signal |
| 31 | R4 | RED Data Signal |
| 32 | R3 | RED Data Signal |
| 33 | R2 | RED Data Signal |
| 34 | R1 | RED Data Signal |
| 35 | R0 | RED Data Signal(LSB) |
| 36 | GND | Power ground |
| 37 | DCLK | DOT CLOCK |
| 38 | GND | Power ground |
| 39 | L/R | Select left or right scanning direction. |
| 40 | U/D | Select up or down scanning direction. |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power voltage for Analog circuit. |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | VCOM | VCOM voltage |
|
47 |
DITHB |
Dithering function.H:6bit resolution(last 2bit of input data Truncated) L:8bit resolution (default setting) |
| 48 | GND | Power ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Electrical Characteristics
| Item | Symbol | Min | Type | Max | Unit |
Test condition |
|
Power voltage |
DVDD | 3.0 | 3.3 | 3.6 | V | - |
| AVDD | 9.4 | 9.6 | 9.8 | V | ||
| VGH | 17 | 18 | 18.5 | V | ||
| VGL | -7 | -6 | -5.5 | V | ||
| Input signal voltage | VCOM | 3.1 | 3.3 | 3.5 | V | |
| Input logic high voltage | VIH | 0.7DVD D | - | DVDD | V | |
| Input logic low voltage | VIL | 0 | 0.3DVDD | V | ||
|
Current for Driver |
IGH | - | 0.2 | 1 | mA | VGH= 16.0V |
| IGL | - | 0.2 | 1 | mA | VGL=7.0V | |
| IDVDD | - | 4.0 | 1 | mA | DVDD=3.3V | |
| IAVDD | - | 20 | 50 | mA | AVDD=10.4V |
Backlight Specification
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Current | IF | -- | 320 | - | mA |
| Forward Voltage | VF | 16.8 | 19.2 | 21 | V |
| Life time | 40000 | 50000 | H |
Optical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|
View Angles |
θT |
CR≥10 |
- | 80 | - |
Degree |
| θ B | - | 80 | - | |||
| θ L | - | 80 | - | |||
| θ R | - | 80 | - | |||
| Contrast Ratio | CR | θ=0° | 700 | 800 |
- |
- |
| Response Time | TON | 25℃ |
- |
30 | 40 |
ms |
| TOFF | ||||||
| Uniformity | U |
- |
70 | 80 |
- |
% |
| NTSC |
- |
- |
- |
70 |
- |
% |
| Luminance | L |
- |
1000 |
- |
cd/m2 |

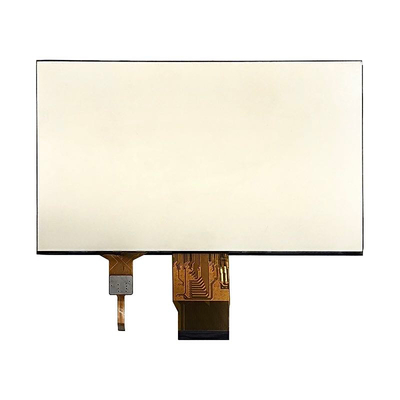

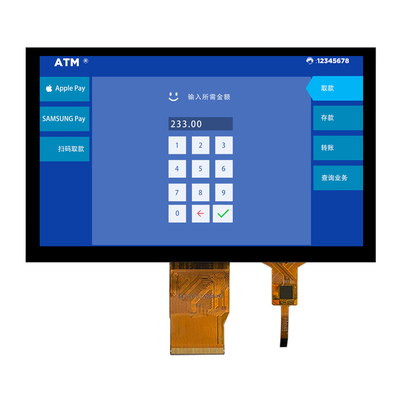

Product Image
