Product Details:
|
| Keywords: | 21.5 Inch PCAP TFT Display | Resolution: | 1920*1080 Pixels |
|---|---|---|---|
| LCD Size: | 495.6 X 292.2 X 10.57mm (w/o Touch) | LCD With Touch: | 526 X 324 X 15.16mm (with Touch) |
| Active Area: | 476.064(H) X 267.786(V) Mm | LCD Interface: | LVDS |
| CTP Interface: | USB | Touch Screen: | CTP (Projective Capacitive Touch Screen) |
| Surface Luminance: | 1000 Cd/m2 | Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ | Display Type: | IPS Full Viewing Angles |
| Surface Treatment: | Haze 25%, 3H | Contrast Ratio: | 1000 |
| Display Color: | 16.7 M | LED Lifetime: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | FHD Resolution High Brightness TFT,1000Nits TFT LCD Display,21.5 Inch TFT LCD Display |
||
High Brightness 21.5-Inch IPS TFT LCD Display - FHD Resolution with LVDS & USB Touchscreen
Elevate your viewing experience with our High Brightness 21.5-Inch IPS TFT LCD Display designed to deliver stunning visuals in a variety of lighting conditions. With a remarkable brightness of 1000 Nits, this display ensures clear and vibrant images, making it perfect for both indoor and outdoor applications.
Key Features:
FHD Resolution: Enjoy crystal-clear images with a Full HD resolution of 1920x1080 pixels. This display provides exceptional detail and sharpness, ideal for professional use, digital signage, or interactive applications.
IPS Technology: With In-Plane Switching (IPS) technology, you can expect superior color accuracy and wider viewing angles. Whether you're collaborating with a team or showcasing content to an audience, everyone will enjoy a consistent and vivid viewing experience.
LVDS Interface: The LVDS (Low-Voltage Differential Signaling) interface ensures high-speed data transmission, allowing rapid refresh rates and reducing flicker for smoother visuals.
USB Touchscreen: Our integrated USB touchscreen feature enables easy interaction with your content, making it perfect for interactive kiosks, point-of-sale systems, and control panels. The responsive and intuitive touch technology ensures a seamless user experience.
Versatile Applications: This display is well-suited for a variety of settings, including retail displays, educational environments, medical equipment, and industrial controls. Its robust design ensures durability and longevity.
Easy Installation: Designed for hassle-free installation, our display comes with mounting options for quick setup, so you can get started right away.
Enhance your projects with the High Brightness 21.5-Inch IPS TFT LCD Display and experience unparalleled performance and clarity. Ideal for businesses seeking to optimize visual communication, this display combines advanced technology with user-friendly features. Order yours today and transform your viewing experience!
Features
| ITEMS | Unit | Specification |
| Screen Diagonal | mm | 546.86(21.5”) |
| Active area | mm | 476.064(H) x 267.786(V) |
| Pixels H x V | - | 1920(x3) x 1080 |
| Pixels Pitch | um | 247.95(per one triad) x247.95 |
| Pixel Arrangement | - | R.G.B. Vertical Stripe |
| Display Mode | - | VA Mode, Normally Black |
| Response Time | Msec | 14ms (typ., on/off) |
| Weight | Grams | TBD |
| Electrical Interface | - | Dual channel LVDS,8 bits RGB data input |
| Support Color | - | 16.7M colors |
| Surface Treatment | - | Anti-Glare,3H |
|
Temperature Range Operating Storage(Shipping) |
℃ |
-10 to +60 -20 to +60 |
External Dimensions
Interface Pin Definition
| Pin No. | Symbol | Description |
| 1 | RxO0- | Negative LVDS differential data input (Odd data) |
| 2 | RxO0+ | Positive LVDS differential data input (Odd data) |
| 3 | RxO1- | Negative LVDS differential data input (Odd data) |
| 4 | RxO1+ | Positive LVDS differential data input (Odd data) |
| 5 | RxO2- | Negative LVDS differential data input (Odd data) |
| 6 | RxO2+ | Positive LVDS differential data input (Odd data) |
| 7 | GND | Ground |
| 8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
| 9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
| 10 | RxO3- | Negative LVDS differential data input (Odd data) |
| 11 | RxO3+ | Positive LVDS differential data input (Odd data) |
| 12 | RxE0- | Negative LVDS differential data input (Even data) |
| 13 | RxE0+ | Positive LVDS differential data input (Even data) |
| 14 | GND | Ground |
| 15 | RxE1- | Negative LVDS differential data input (Even data) |
| 16 | RxE1+ | Positive LVDS differential data input (Even data) |
| 17 | GND | Ground |
| 18 | RxE2- | Negative LVDS differential data input (Even data) |
| 19 | RxE2+ | Positive LVDS differential data input (Even data) |
| 20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
| 21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
| 22 | RxE3- | Negative LVDS differential data input (Even data) |
| 23 | RxE3+ | Positive LVDS differential data input (Even data) |
| 24 | GND | Ground |
| 25 | CTL | CTL_DVR |
| 26 | CE | CE_DVR |
| 27 | NC | No connection |
| 28 | VDD | Power Supply Input Voltage |
| 29 | VDD | Power Supply Input Voltage |
| 30 | VDD | Power Supply Input Voltage |
PCAB USB Pin Definition
1 VBUS / VDD
2 DN / D-
3 DP / D+
4 GND
Backlight Specification
| Parameter | Symbol | Value | Unit | ||
| MiN. | Typ. | Max. | |||
| Light Bar input Voltage | VLED | 48 | 52 | 56 | V |
| Light Bar input Current | ILED | - | 480 | - | mA |
| Power Consumption | PLED | 23.04 | 24.96 | 26.88 | W |
| LED Life Time | LBL | 40000 | 50000 | - | Hrs |
Electrical Characteristics
| Parameter | Symbol | Min | Typ Max | Unit | |
| Power supply voltage | VDD | 4.5 | 5.0 | 5.5 | V |
| Power Supply Current | IVDD | 500 | 1200 | mA | |
| In-Rush Current | IRUSH | 2.0 | 3.0 | A | |
| Permissible Input Ripple Voltage | VRF | 300 | mV | ||
| High Level Differential Input Threshold Voltage | VIH | +100 | mV | ||
| Low Level Differential Input Threshold Voltage | VIL | -100 | mV | ||
| Differential input voltage | VID | 200 | 600 | mV | |
| Input voltage(BL) | VBL_I | -0.3 | VDD+0.3 | mV | |
| Differential input common mode voltage | VCM | 1.0 | 1.2 | 1.5 | |
| Power Consumption | VD | 2.5 | 6 | W | |
| Parameter | Conditions | Min. | Typ. | Max. | Unit |
| Contrast Ratio | Center | 700 | 1000 | - | - |
| Response Time | Tr+Td | - | 14 | 20 | ms |
|
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.03 |
0 |
Typ. +0.03 |
0 |
| White x | 0.323 | - | |||
| White y | 0.379 | - | |||
| Center Luminance of white | YLI | 800 | 1000 | cd/m2 | |
| Cross Talk | Ct | 2.0 | % |

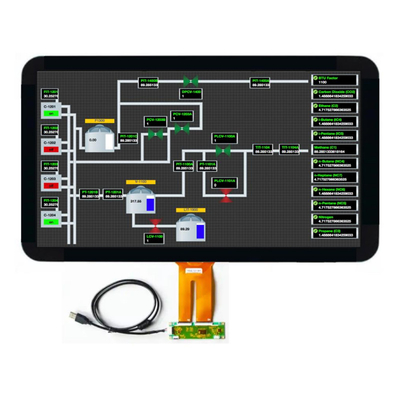

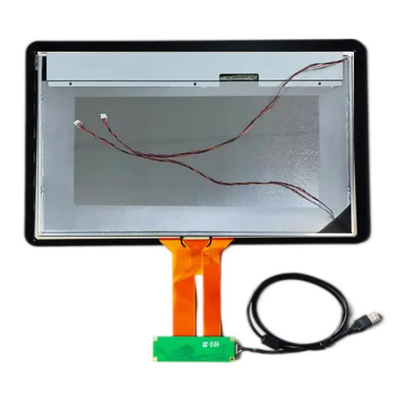

Product Image
