Product Details:
|
| Product: | 2.1" Inch Round TFT | Resolution: | 480x480 Dots |
|---|---|---|---|
| Interface: | 3 Line SPI + 18 Bits RGB | Touch Screen: | No Touch (PCAP Optional) |
| Viewing Direction: | IPS (80/80/80/80) | Driver IC: | ST7701S |
| Pin Number: | 40 Pins | Module Size: | 58.18 X 59.71 X 2.26 (mm) |
| Active Area: | 53.28 Mm Diameter | Connection: | ZIF |
| Surface Luminance: | 1000 Cd/m2 (nits) | Operating Temp.: | -20℃ To +70℃ |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 1000 Nits High Brightness TFT Display,2.1 Inch Round TFT LCD,480x480 Dots Matrix TFT Display |
||
About this Item SF-TC210B-8947A3N
Introducing our latest innovation in display technology: the High Brightness 1000 Nits 2.1 Inch Round TFT LCD! Designed to deliver exceptional image clarity and vibrant colors, this compact display features a 480x480 dots matrix resolution, ensuring every detail comes to life.
Key features include:
Whether you’re looking to enhance user experience in consumer electronics, automotive displays, or industrial interfaces, this TFT LCD is the perfect solution. Elevate your product’s visual performance with our high brightness display that brings your ideas to life!
Discover the difference in display quality with our High Brightness 1000 Nits 2.1 Inch Round TFT LCD—where brilliance meets innovation!
General Specifications
| LCD type | 2.1 inch |
| Resolution (H*V) | 480(RGB)×480 |
| Technology Type | a-Si TFT |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Direction | ALL |
| Gray Scale Inversion Direction | - |
| OutlineDimensions (W x H x T) (mm) | 58.18*60.71*2.26 |
| Active Area(mm) | 53.28*53.28 |
| CTP View Area(mm) | / |
| With /Without Touch screen | Without |
| Connector Type | 0.5 PITCH 40PIN |
| Backlight Type | LED |
| Weight (g) | TBD |
| Display Interface | 3SPI+18RGB |
| Number of color | 262K |
| Display Driver IC | ST7701S |
External Dimensions
Interface Pin Definition
| 1 | LED A | LED ANODE |
| 2 | LED K | LED CATHODE |
| 3 | LED K | LED CATHODE |
| 4 | GND | Ground |
| 5 | VCI | Power supply |
| 6 | RESET | Reset Signal ,Active Low |
| 7 | NC | NC |
| 8 | NC | NC |
| 9 | SDA | SPI Data signal |
| 10 | SCK | SPI Clock signal |
| 11 | CS | SPI Chip select signal |
| 12 | PCLK | RGB dot clock signal |
| 13 | DE | RGB data enable signal |
| 14 | VSYNC | RGB frame synchronizing signal |
| 15 | HSYNC | RGB line synchronizing signal |
| 16~33 | DB0~DB17 | RGB data signal(DB0:BlUE LSB;DB5:BIUE MSB;DB6:GREEN LSB;DB11:GREEN,MSB;DB12:RED LSB;DB17:RED MSB) |
| 34 | GND | Ground |
| 35 | TP_INT | Touch Interrupt |
| 36 | TP_SDA | Touch IIC Data signal |
| 37 | TP_SCL | Touch IIC Clock signal |
| 38 | TP_RESET | Touch Reset Signal |
| 39 | TP_VCI | Touch Power supply |
| 40 | GND | Ground |
Absolute Maximum Ratings
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 0.3~4.8 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
Electrical Characteristics
|
Item |
Symbol |
Min |
Type |
Max |
Unit |
Test condition |
|
Operating voltage |
VDD |
2.5 |
2.8 |
4.8 |
V |
- |
|
Supply current |
IDD |
- |
- |
50 |
mA |
VDD=2.8V,Ta=25°C |
|
Input voltage |
VIH |
0.8VDD |
- |
VDD |
V |
- |
|
VIL |
0 |
- |
0.2VDD |
V |
||
|
Input leakage current |
IIL |
-1.0 |
- |
1.0 |
mA |
VIN=VDD or VSS |
Driving Backlight Specification
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Current | IF | -- | 80 | - | mA |
| Forward Voltage | VF | 5.4 | 6.4 | 6.6 | V |
| Connection mode | -- | 4Parallel | -- | ||
| LED number | / | 4 | pcs |

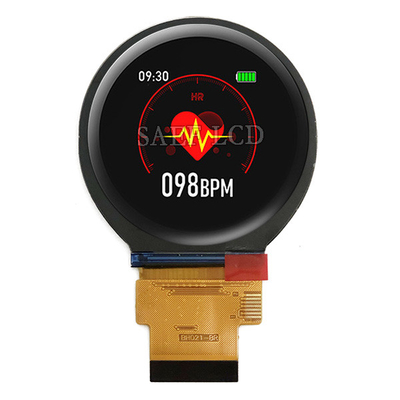

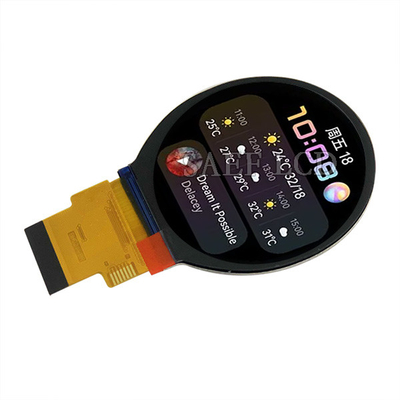

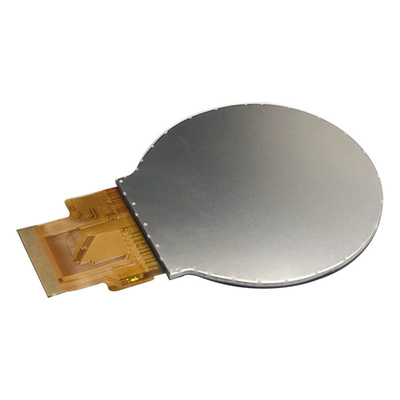

Product Image
