Product Details:
|
| Keywords: | 8 Inch TFT LCD | Resolution: | 1920*1200 |
|---|---|---|---|
| Interface: | LVDS | Pins: | 45 PINS |
| Touch Screen: | Available / Optional | Surface Luminance: | 1200 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours | Viewing Direction: | All Viewing Angles |
| Connection: | Connector Type | Operating Temp.: | –30℃ To +85℃ |

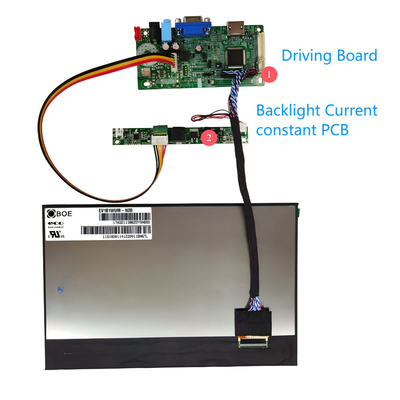

| Driving Board: | Available / Optional | LED Current Constant: | Available / Optional |
| Compliance: | REACH & RoHS Compliant | Certification: | ISO9001:2015 / ISO14000:2015 |
| Highlight: | 1200nits TFT LCD Display,FHD TFT LCD Display,LVDS Interface TFT LCD Display |
||
Datasheet Download
SFTO800BD-7218AN Specification.pdf
About this item SFTO800BD-7218AN
Overview
Our 8-inch High Brightness TFT LCD display is designed to deliver superior visual performance in challenging lighting conditions. With an impressive brightness of 1200 nits and a full HD resolution of 1920 x 1200 dots, this display is perfect for applications requiring clarity and vibrancy. Its LVDS (Low-Voltage Differential Signaling) interface ensures high-speed data transfer and optimal image quality, making it suitable for various industrial, commercial, and consumer applications.
High Brightness: At 1200 nits, this display is exceptionally bright, making it ideal for use in outdoor environments or well-lit indoor spaces. It ensures excellent visibility even in direct sunlight.
Full HD Resolution: With a resolution of 1920 x 1200 pixels, this display provides sharp images and detailed visuals, enhancing the overall user experience.
LVDS Interface: The LVDS interface allows for high-speed data transmission with low power consumption. It supports a variety of devices, ensuring versatile compatibility.
Wide Viewing Angles: The display offers wide viewing angles (typically 160° horizontal and vertical), allowing for clear visibility from various positions without color distortion.
Color Performance: With a high color gamut and excellent color reproduction, the display is capable of displaying vibrant, true-to-life images, making it suitable for multimedia applications.
Durability: Designed for robustness, the TFT LCD is built to withstand various environmental conditions. It is resistant to impact and can operate effectively in challenging settings.
Easy Integration: The compact form factor and standard interfaces make it easy to integrate the display into existing systems, ensuring a seamless installation process.
Outdoor Displays: Ideal for kiosks, digital signage, and information boards in outdoor settings, where visibility is critical.
Industrial Control Panels: Suitable for monitoring systems, equipment control, and automation interfaces that require clear and reliable display performance.
Portable Devices: Perfect for handheld devices, tablets, and portable multimedia players that benefit from high brightness and excellent responsiveness.
Medical Equipment: Can be used in medical imaging devices and diagnostic equipment, providing clear visuals necessary for critical applications.
The 8-inch High Brightness TFT LCD display combines cutting-edge technology, high performance, and versatility, making it an excellent choice for a wide range of applications. Whether used in outdoor environments or industrial settings, this display guarantees visibility and reliability, enhancing user experience and satisfaction.
Features
| Parameter | Specification | Unit | Remark |
| Outline Size | 181.7(H) ×119.8(V) ×5.5(T) | mm | FOG |
| Active Area | 172.224(H) ×107.640(V) | mm | Note 1.1 |
| Brightness | 1000-1200 | cd/m² | - |
| Number of Pixels | 1920(H)xRGB×1200 (V) | pixels | - |
| Pixel Pitch | 29.9(H) ×3×89.7(V) | μm | - |
| Pixel Arrangement | RGB Vertical Stripe | - | - |
| Display Colors | 16.7M | - | - |
| Color Gamut | 70%(Min.), 75% (Typ.) | CF @C Light | |
| Display Mode | Normally Black | - | - |
| Viewing Direction | 85/85/85/85 (Typ.) 80/80/80/80 (Min.) | Deg. | CR>=10 |
| Weight | TBD | gram | - |
| interface | 2-port LVDS( 8bit) | - | - |
| IC | FL5893DA | Note 1.2 |
Note 1.1: H: horizontal length, V: vertical length.
Note 1.2: Compatible ICs for this product include FL5893DA, Please contact IC manufacturer and vetify it when you choose any one of them. The information we suppose about IC just for reference.
Mechanical Drawing
Pin Description
| No. | Symbol | Function | No. | Symbol | Function |
| 1 | VLED- | Power for LED backlighr (Cathode) | 24 | GND | ground |
| 2 | VLED- | Power for LED backlighr (Cathode) | 25 | OLV2P | LVDS differential data input Positive |
| 3 | VLED+ | Power for LED backlighr (Anode) | 26 | OLV2N | LVDS differential data input Negative |
| 4 | VLED+ | Power for LED backlighr (Anode) | 27 | GND | ground |
| 5 | NC | No connection | 28 | OLVCLKP | LVDS differential data input Positive |
| 6 | GND | ground | 29 | OLVCLKN | LVDS differential data input Negative |
| 7 | ELV3P | LVDS differential data input Positive | 30 | GND | ground |
| 8 | ELV3N | LVDS differential data input Negative | 31 | OLV1P | LVDS differential data input Positive |
| 9 | GND | ground | 32 | OLV1N | LVDS differential data input Negative |
| 10 | ELV2P | LVDS differential data input Positive | 33 | GND | ground |
| 11 | ELV2N | LVDS differential data input Negative | 34 | OLV0P | LVDS differential data input Positive |
| 12 | GND | ground | 35 | OLV0N | LVDS differential data input Negative |
| 13 | ELVCLKP | LVDS differential data input Positive | 36 | GND | ground |
| 14 | ELVCLK N | LVDS differential data input Negative | 37 | I2C _SDA | data input/output for I2C(please let these pins open.) |
| 15 | GND | ground | 38 | I2C _SCL | Clock signal for I2C(please let these pins open.) |
| 16 | ELV1P | LVDS differential data input Positive | 39 | VDD_OTP | Power supply for OTP circuit(please let these pins open.) |
| 17 | ELV1N | LVDS differential data input Negative | 40 | EEPEN | Only test Pin( please let these pins open.) |
| 18 | GND | ground | 41 | VDDIN | Power supply |
| 19 | ELV0P | LVDS differential data input Positive | 42 | VDDIN | Power supply |
| 20 | ELV0N | LVDS differential data input Negative | 43 | VDDIN | Power supply |
| 21 | GND | ground | 44 | VDDIN | Power supply |
| 22 | OLV3P | LVDS differential data input Positive | 45 | VDDIN | Power supply |
| 23 | OLV3N | LVDS differential data input Negative |
Optical Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark | |
|
Viewing Angle Range |
Horizontal |
Θ3 |
CR > 10 |
80 | 85 | - | Deg. |
Note 6.1 |
| Θ9 | 80 | 85 | - | Deg. | ||||
|
Vertical |
Θ12 | 80 | 85 | - | Deg. | |||
| Θ6 | 80 | 85 | - | Deg. | ||||
| Contrast Ratio | CR |
Θ = 0 |
1000 | 1200 | - |
HC+APF Note 6.2/6.3 |
||
| Cell Transmittance | Tr | 3.8 | 4.5 | - | % | |||
|
Chroma@CIE1931 |
Rx |
Θ = 0 |
0.654 | 0.674 | 0.694 |
@C Light Note 6.4 |
||
| Ry | 0.302 | 0.322 | 0.342 | |||||
| Gx | 0.249 | 0.269 | 0.289 | |||||
| Gy | 0.582 | 0.602 | 0.622 | |||||
| Bx | 0.113 | 0.133 | 0.153 | |||||
| By | 0.095 | 0.115 | 0.135 | |||||
| Wx | 0.276 | 0.296 | 0.316 | |||||
| Wy | 0.318 | 0.338 | 0.358 | |||||
| Color Gamut | Θ = 0 | 70 | 75 | - | % | |||
| Response Time | Tr+Tf |
Ta= 25 C Θ = 0 |
- |
30 | 35 | ms | Note 6.5 | |
Reliability Test Parameters
| No | Items | Conditions |
| 1 | High Temperature Storage test(HTS) | 85℃ , 240hrs, Non-operational |
| 2 | Low Temperature Storage test(LTS) | -30℃ , 240hrs, Non-operational |
| 3 | High Temperature Operating test(HTO) | 85℃ , 240hrs, operational |
| 4 | Low Temperature Operating test(LTO) | -30℃ , 240hrs, operational |
| 5 | Thermal Humidity Operating test(THO) | 60℃/90%RH, 240hrs, operational |
| 6 | Thermal Cycle Storage test(TST) | -30~80℃ , 100cycles, 1hr/cycle, Non-operational |
|
7 |
Image Sticking |
5*5 Pattern, 1hr 25℃±2℃ check pattern Gray 127, after 3 min, the mura must be d isap peared completely |

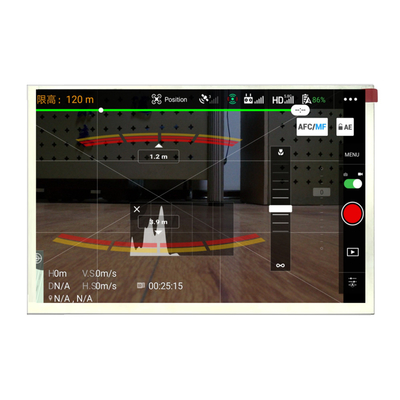

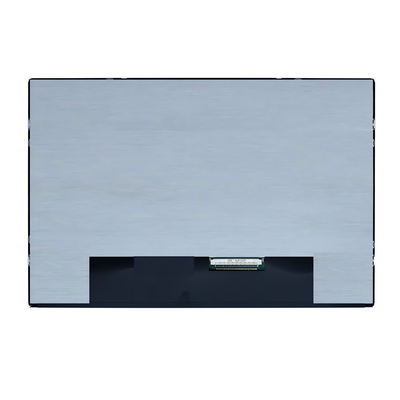

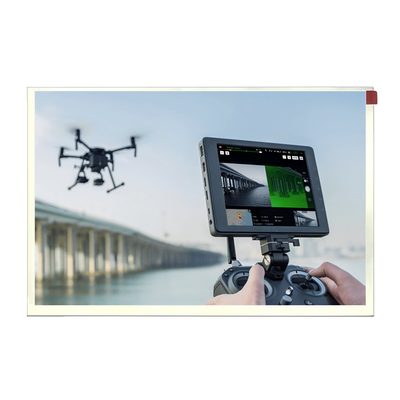

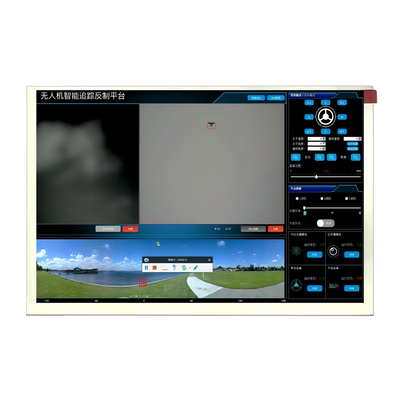

Product Image
