Product Details:
|
| Keywords: | 11.3 Inch Bar TFT | Resolution: | 440x1920 |
|---|---|---|---|
| Interface: | MIPI | Driver IC: | SC7707 |
| Surface Luminance: | 520 Cd/m2 (nits) | Touch Screen: | No |
| Viewing Direction: | IPS, All Viewing Angles | LED Lifetime: | 40,000 Hours |
| Certification: | ISO9001:2015 / ISO14000:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 11.3-Inch Bar Type TFT LCD,440x1920 Pixels Bar Type TFT LCD,IPS Bar Type TFT LCD Display |
||
Datasheet Download
SFTO1130GX-7220AN Specification.pdf
About this item SFTO1130GX-7220AN
11.3-inch IPS TFT LCD display with a resolution of 440x1920 pixels, equipped with MIPI 4-channel interface, is a display module designed specifically for applications that require high-resolution and wide-angle display. The following is a detailed introduction of the product:
This 11.3-inch bar IPS TFT LCD display is an ideal choice for applications that require high-definition display and user interaction due to its high resolution, high brightness, and wide viewing angle characteristics.
Features
|
Item |
Contents |
Unit |
| LCD | ||
| LCD Size | 11.3” | inch |
| Panel Type | IPS | -- |
| Display Mode | Normal Black | -- |
| Number of Colors | 16.7M | -- |
| Viewing direction | ALL.O'CLOCK | -- |
| Backlight | White LED x16in Parallel/ Series | -- |
| NTSC | 70% | -- |
| Contrast Ratio | 1000 | -- |
| Interface | MIPI 4Lanes | -- |
| Driver IC | SC7707 | -- |
| Driver IC RAM Size | RAM less | bit |
| Luminance | 520 | cd/m2 |
| Outline Dimension | 64.98(H)x266.44 (V) x4.6 (D) ±0.2 | mm |
| Active area (W×H) | 57.948(H) x252.864 (V) | mm |
| Pixel Arrangement | RGB-stripe | -- |
| Weight | TBD | g |
| Number of Dots | 440xRGBx1920 | Pixel |
| Pixel pitch | 43.9(H)*3*131.7(V) | um |
| Operating Temperature | -20 ～ +70 | ℃ |
| Storage temperature | -30 ～ +80 | ℃ |

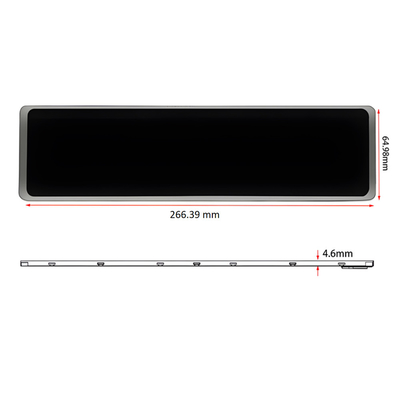

Mechanical Drawing
Pin Description
| PIN No. | SYMBOL | Function |
| 1 | GND | Ground |
| 2 | DSI-D0P | DSI Data differential signal input pins. (Data lane0) |
| 3 | DSI-D0N | DSI Data differential signal input pins. (Data lane 0) |
| 4 | GND | Ground |
| 5 | DSI-D1P | DSI Data differential signal input pins. (Data lane 1) |
| 6 | DSI-D1N | DSI Data differential signal input pins. (Data lane 1) |
| 7 | GND | Ground |
| 8 | DSI-CLK P | DSI CLOCK differential signal input pins |
| 9 | DSI-CLK N | DSI CLOCK differential signal input pins |
| 10 | GND | Ground |
| 11 | DSI-D2P | DSI Data differential signal input pins. (Data lane 2) |
| 12 | DSI-D2N | DSI Data differential signal input pins. (Data lane 2) |
| 13 | GND | Ground |
| 14 | DSI-D3P | DSI Data differential signal input pins. (Data lane 3) |
| 15 | DSI-D3N | DSI Data differential signal input pins. (Data lane 3) |
| 16-17 | GND | Ground |
| 18-19 | IOVCC (NC) | I/O Power supply (NC) |
| 20-23 | NC | NC |
| 24 | RESET | Reset Signal pin (“Low” is enable) |
| 25-26 | NC | NC |
| 27 | GND | Ground |
| 28-29 | LEDK | Backlight LED Cathode |
| 30 | GND | Ground |
| 31 | NC | NC |
| 32-33 | GND | Ground |
| 34 | NC | NC |
| 35-36 | LEDA | Backlight LED Anode. |
| 37 | GND | Ground |
| 38-39 | VDD | Power supply |
| 40 | NC | NC |
Backlight Characteristics
White LED × 16 in Parallel/ Series (Ta = 25°C)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | VF | IF= 120mA | 22.4 | - | 27.2 | V |
| Uniformity | △Bp | - | 80 | - | - | % |
| Luminance for LCD | Lv | IF= 120mA | 470 | 520 | - | cd/m2 |

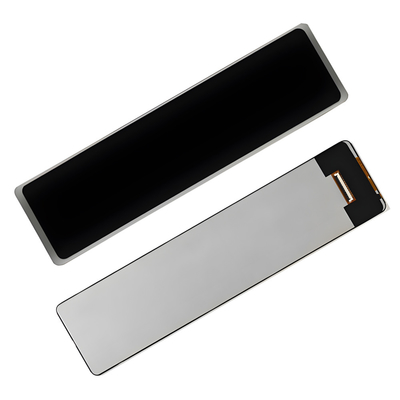

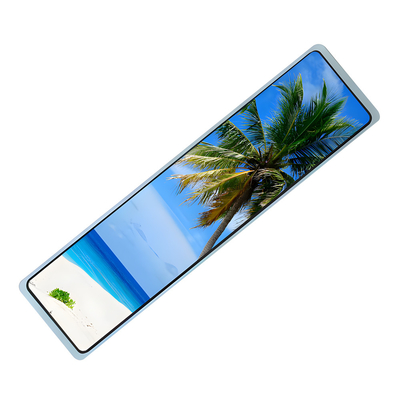

Product Image
How competitive is this 11.3 inch Bar TFT monitor in the international market?
The 11.3-inch bar IPS TFT LCD display has a resolution of 440x1920 pixels and is equipped with MIPI 4-channel interface. The competitive analysis in the international market is as follows:
1. * * Capacity and technological leadership * *: According to Omdia's analysis, Chinese panel manufacturers such as BOE, TCL Huaxing Optoelectronics, and Huike are leading the flat panel display industry. The capacity expansion and technological improvement of these manufacturers provide strong technical support and capacity guarantee for this product.
2. * * Market demand growth * *: Global TFT LCD production capacity is expected to continue to grow, indicating that market demand is expanding. With the increase in shipments of large-sized LCD panels, the market demand for 11.3-inch bar screens is expected to further increase.
3. High industry concentration: The global TFT LCD industry has a high concentration, with SAEF Technology occupying important positions in the global market. This provides favorable conditions for the market promotion and brand building of 11.3-inch bar screens.
4. Product differentiation: The high resolution and MIPI interface of the 11.3-inch strip screen give it a differentiated advantage in specific application areas, such as high-end markets such as industrial automation and medical equipment.
5. * * International Brand Influence * *: With the increasing market share of SAEF Technology in the global market, our brand influence is also improving, which helps to enhance the international market recognition of 11.3-inch bar screens.
6. * * Price Competitiveness * *: The economies of scale and cost control capabilities of Chinese panel manufacturers make 11.3-inch bar screens competitively priced in the international market.
7. * * Global Supply Chain Integration * *: The integration capability of Chinese panel manufacturers in the global supply chain can help improve the supply chain efficiency and response speed of 11.3-inch strip screens.
In summary, 11.3-inch stripe IPS TFT LCD displays from Saef Technology have strong competitiveness in the international market, mainly due to advantages such as leading production capacity and technology, increasing market demand, high industry concentration, product differentiation, increased international brand influence, price competitiveness, and global supply chain integration.
