1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options

1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options
1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options
1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options

Large Image :  1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFOM130YZ4-12864WB-01
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options

Description
Product: 1.3 Inch OLED Module Resolution: 128x64 Dots
Structure: COG + PCB Interface: I2C, IIC
Viewing Direction: All Viewing Angles Display Color: White / Blue Options
Outline Dim.: 35.5 × 33.7 × 3.5 (mm) Connection: Header Pins
Pin Number: 4 Pins ( 7 Pins Optional ) Operating Temp.: -40℃ To +85℃
Lifetime: 50,000 Hours @ 60cd/m2 Compliance: REACH & RoHS Compliant
Highlight:

128x64 Dot Matrix OLED

,

1.3 Inch Dot Matrix OLED

,

4 Pin Dot Matrix OLED

SFOM130JY4-12864WB-02 Specification.pdf



About this item SFOM130YZ4-12864WB-02 4 header pin 1.3 inch OLED Module



The product SFOM130YZ4-12864WB-02 features of the white/blue font options for the 1.3-inch 128x64 dot matrix OLED 4-pin IIC I2C interface SH1106 driver IC are as follows:

  1. Adopting OLED (Organic Light Emitting Diode) technology, it has the characteristics of being lightweight, energy-saving, high contrast, and wide viewing angle, suitable for providing clear display effects in various environments.
  2. The resolution is 128x64 pixels, providing clear graphics and text display.
  3. The SH1106 driver IC supports up to 132x64 dot matrix panels, built-in 132x64 bit SRAM, supports 8-bit 6800 series parallel interfaces, and 400KHz fast I2C bus interfaces. The maximum data transfer rate supported by the I2C interface of the SH1106 driver IC is 400KHz. This means that under ideal conditions, it can transmit data at a speed of up to 400000 bits per second. This transmission rate is sufficient for most small display applications, ensuring timely data transfer from the microcontroller to the display module, thereby providing smooth display effects
  4. Provides 4-pin IIC I2C interface, supports 3-wire and 4-wire serial peripheral interfaces, and is easy to connect with microcontrollers or other processors.
  5. Supports displaying white and blue fonts, and users can choose the most suitable color according to the application scenario.
  6. OLED screens emit light and have high brightness characteristics, making them suitable for use in bright environments.
  7. The logic power supply voltage range of SH1106 is 1.65V-3.5V, the DC-DC power supply voltage is 3.0V-4.2V, and the OLED operating power supply voltage is 6.4V-14.0V.
  8. Low power design, with power consumption less than 5 μ A in sleep mode.
  9. Suitable for various applications such as portable devices, smart homes, wearable devices, medical equipment, industrial control panels, etc.
  10. Designed to meet industrial standards and capable of stable operation over a wide temperature range.
  11. Supports row and column remapping (ADC), vertical scrolling, on-chip oscillator, programmable internal charge pump circuit output, 256 step contrast control on monochrome passive OLED panels.

This 1.3-inch OLED display module from Saef Technology is an ideal choice for applications that require miniaturized display solutions due to its high resolution, high brightness, and low power consumption characteristics.





Features



Product: 1.3 Inch PMOLED 4 Pins  Resolution: 128x64 Dots
Structure: COG + PCB Interface: SPI, I2C Optional
Touch Screen: Customizable Viewing Direction: All Viewing Angles
Outline Dim.: 35.5 × 33.7 × 3.5 mm Connection: Header Pins
Pin Number: 4 Pins Operating Temp.: -40℃ To +85℃
Lifetime: 50,000 Hours @ 60cd/m2 Compliance: REACH & RoHS Compliant





Mechanical outline Dimensions



1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 0





Pin Definition



PIN SYMBOL Descriptions
1 GND Ground of Logic Circuit
2 VDD Power Supply for Logic
3 SCK Serial clock input.
4 SDA Serial data input.

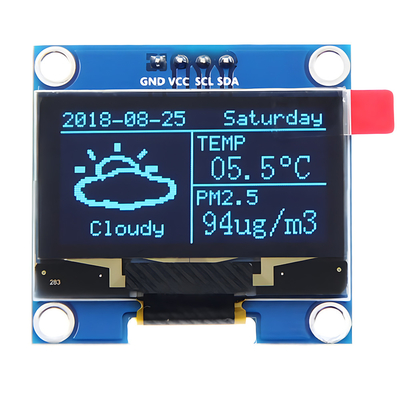

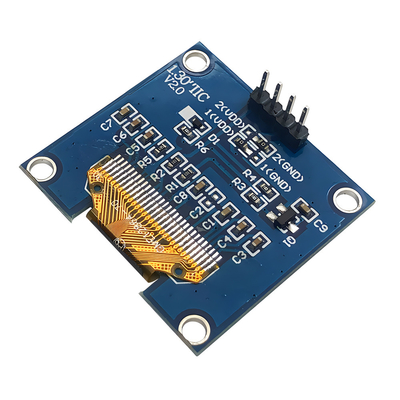

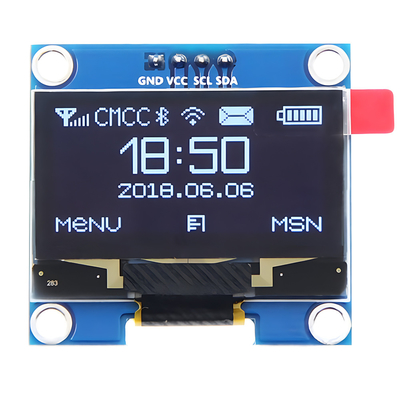

Product Image

1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 11.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 21.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 3

Facilities and Certificates

1.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 41.3-Inch 128x64 Dot Matrix OLED 4-Pin IIC I2C Interface SH1106 Driver IC White/Blue Font Options 5
