Product Details:
|
| Product: | 2.42 Inch (2.4") OLED Display | Resolution: | 128x64 Dots |
|---|---|---|---|
| Display Mode: | Passive Matrix | Optics: | All Viewing Angles |
| Outline Dim.: | 71.0(L) X 43.5(W) X 6.0(T) (mm) | Active Area: | 55.01(L) X 27.5(W) (mm) |
| Pixel Pitch: | 0.43 X 0.43 (mm) | Driving Method: | 1/64 Duty Cycle |
| Operating Temp: | -40°C To +70°C | Pin Number: | 7 Header Pins |
| Interface: | SPI Interface | Compliance: | REACH & RoHS Compliant |
| Highlight: | 2.42-inch OLED control board,SSD1309 OLED control board,7-pin SPI OLED Display Module |
||
SFOM242YZ7-12864WBYG-01 Specification.pdf
Product Introduction
The 2.42-inch 7-pin SPI interface OLED control board is a control board that integrates high-performance OLED display technology, suitable for application scenarios that require high contrast, ultra-thin design, and low-power display solutions. The control board is equipped with SSD1309 /SPD0301 driver chip, supporting SPI/I2C dual interface communication, providing users with flexible connection options.
Technical parameter
Display screen size: 2.42 inches
Resolution: 128 × 64 pixels

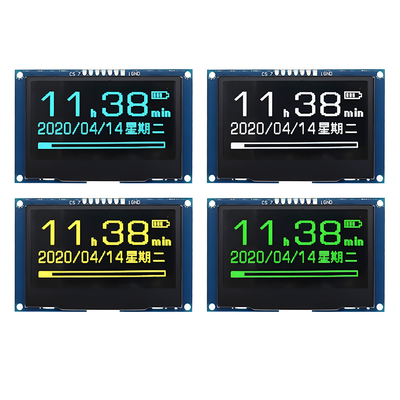

Display color: white, yellow, Green and Blue optional
Control chip: SSD1309/SPD0301
Communication interface: SPI/I2C
Physical interface: GH1.25 7Pin
Working voltage: 3.3V/5V
Display size: 55.01 × 27.49mm
Product size: 61.50 × 39.50mm
Product features
High contrast: 2.42-inch 7-pin SPI interface OLED's self luminous characteristics provide extremely high contrast and excellent display effects.
Ultra thin and lightweight: Due to the self luminous principle of OLED, there is no need for backlight, making the control board thinner and lighter.
Low power operation: 2.42-inch OLED does not consume energy when displaying black, which helps to reduce overall power consumption.
Wide viewing angle display: 2.42-inch OLED Provides a wide viewing angle of over 170 °, ensuring clear viewing from different angles.
Fast response: 2.42-inch 7-pin SPI interface OLED's fast response time is suitable for applications with dynamic images and fast refresh.
Support SPI/I2C communication: compatible with two communication protocols, convenient for connecting with various microcontrollers.
Software support
Provide comprehensive software development support, including:
Routine data: Provide sample code for platforms such as Raspberry Pi, Arduino, STM32, ESP32, etc.
Communication Protocol: Provide implementation details for SPI and I2C communication protocols.
Graphic library: supports basic graphic drawing and text display functions.
Font support: Built in multiple fonts to meet the display needs of different languages and characters.
Outline Drawing
Interface Pin Definition (Hardware connection)
| Pin | Symbol | Descriptions |
| 1 | GND | Ground of Logic Circuit |
| 2 | VDD | Power Supply for Logic |
| 3 | SCK | Serial clock input. |
| 4 | SDA | Serial data input. |
| 5 | RST | This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. |
|
6 |
DC |
This pin is Data/Command control pin. When the pin is pulled high and serial interface mode is selected, the data at SDIN will be interpreted as data. When it is pulled low, the data at SDIN will be transferred to the command register. |
| 7 | CS | Chip Select. Chip is selected when CS0 = “L” . |
Absolute Maximum Ratings
|
Parameter |
Symbol | Min | Max | Unit |
| Supply Voltage for Logic | VDD | -0.3 | 4 | V |
| Supply Voltage for Display | VCC | 8 | 17 | V |
| Operating Temperature | TOP | -40 | 70 | .C |
| Storage Temperature | TSTG | -40 | 85 | .C |
| Life Time (220 cd/m2) | 13,000 | - | hour | |
| Life Time (200 cd/m2) | 15,000 | - | hour | |
|
Life Time (180 cd/m2) |
16,000 | - | hour |
Electrical Specifications
|
Characteristics |
Symbol | Conditions | Min | Typ | Max | Unit |
| Normal mode current consumption | All pixels on | - | 17 | 25 | mA | |
| Standby mode current consumption | Standby mode 10% pixels on | - | 0.5 | 1.5 | mA | |
| Normal mode power consumption | All pixels on | - | 71.5 | 97.5 | mW | |
| Standby mode power consumption | Standby mode 10% pixels on | - | 6.5 | 19.5 | mW | |
| Brightness | Lbr | - | 90 | 110 | - | cd/m2 |
| C.I.E. (White) |
(x) (y) |
C.I.E. 1931 |
0.24 0.28 |
0.28 0.32 |
0.32 0.36 |
|
| Dark Room Contrast | CR | - | 2000:1 | - | - | |
|
Viewing Angle
|
- | 160 | - | - | degree |

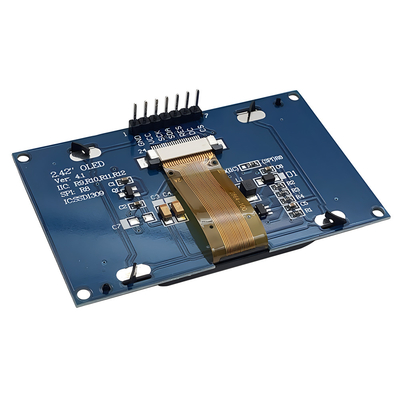

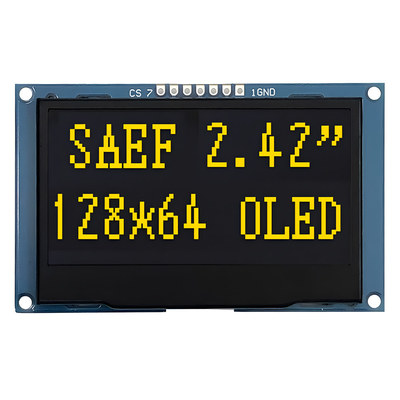

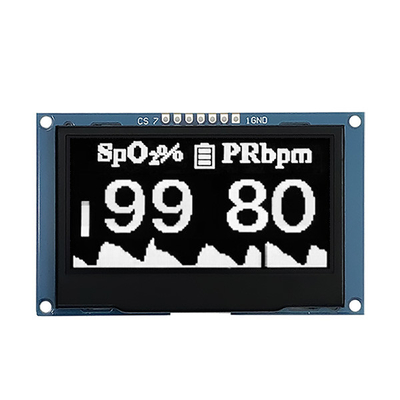

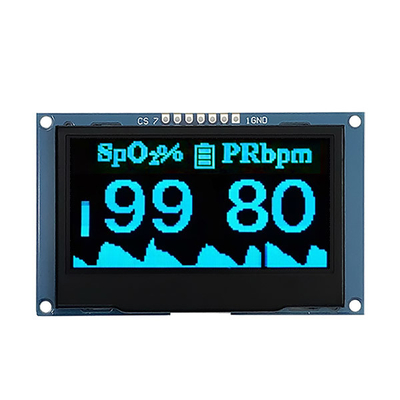

Product Image
Reliability Testing Condition
|
Item |
Conditions |
Criteria |
| High Temperature Operation | 70.C, 240 hrs |
The operational functions work. |
| Low Temperature Operation | -40.C,120 hrs | |
| High Temperature Storage | 85.C, 120 hrs | |
| Low Temperature Storage | -40.C, 120 hrs | |
| High Temperature/Humidity Operation | 65.C, 90% RH, 120 hrs | |
|
Thermal Shock |
-40°C ~85°C (-40°C /30min; transit /3min; 85°C /30min; transit/3min) 1cycle: 66min, 100 cycles |
