Product Details:
|
| Product: | 0.96 Inch OLED + 4 Pin PCB | Resolution: | 128x64 Pixels |
|---|---|---|---|
| Display Color: | White/Blue/Yellow Blue Fontz | Structure: | COG + PCB |
| Interface: | I2C（IIC） | Viewing Direction: | All Viewing Angles (85/85/85/85) |
| Outline Dim.: | 24.7 × 27 × 3.6 (mm) | Connection: | Header Pins |
| Pin Number: | 4 Pins | Operating Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 0.96 Inch OLED Display,White OLED Display,4pin I2C OLED Display |
||
SFOM096YZ4-12864WB-02 Specification.pdf
Product Introduction
0.96-inch OLED with 4-pin PCB is a miniaturized display module widely used in embedded systems and portable electronic devices. This type of display screen plays an important role in fields such as smart watches, health trackers, and industrial equipment due to its small size, low power consumption, and high contrast. Due to its modular design, it can be easily integrated into various electronic products, providing users with intuitive information display.
In addition, driver ICs for 0.96-inch OLED with 4-pin PCB modules such as SSD1306, SSD1315, etc., due to their standardized design, further enhance their versatility on various devices. This high level of compatibility provides great convenience for users when designing embedded systems or DIY projects.
Features
0.96-inch OLED with 4-pin PCB products typically have the following technical specifications:
Outline Drawing
Interface Pin Definition
| Pin No. | Symbol | Description | |
| 1 | GND | round of Logic Circuit. This is a ground pin, it must be connected to ground. | |
| 2 | VDD | Power Supply for OLED. This is a voltage supply pin. it must be connected to source. | |
| 3 | SCL | This serial clock input SCL | |
| 4 | SDA | This serial data input SDA | |
Electro-Optical Characteristics
| Items | Symbol | Min. | Typ. | Max. | Unit | Remark | |
| Operating Luminance | L | 80 | 100 | - | cd /m2 | All pixels ON | |
| Power Consumption | P | - | 50 | 60 | mW |
30% pixels ON |
|
| Frame Frequency | Fr | - | 105 | - | Hz | - | |
|
Color Coordinate |
Blue | CIE x | 0.11 | 0.15 | 0.19 |
CIE1931 |
Darkroom |
| CIE y | 0.21 | 0.25 | 0.29 | ||||
|
Response Time |
Rise | Tr | - | 10 | - | us | - |
| Decay | Td | - | 10 | - | us | - | |
| Contrast Ratio | Cr | 10000:1 | - | - | - | Darkroom | |
| Viewing Angle | θ |
160 | - | - | Degree | - | |
| Operating Life Time | Top | 22000 | - | - | Hours | L= 80 cd/m2 | |

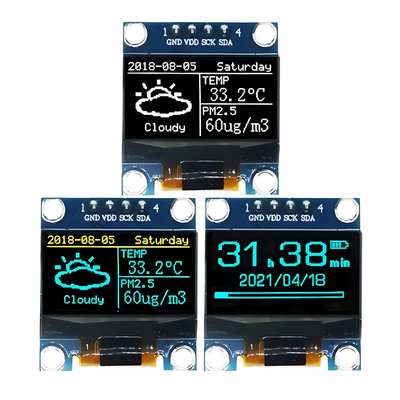

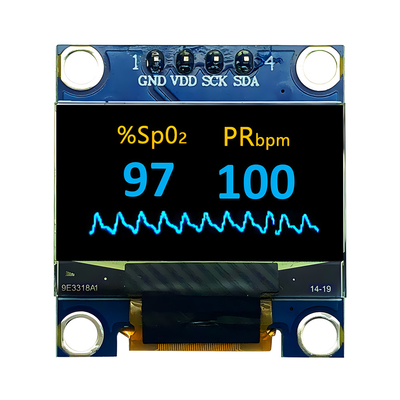

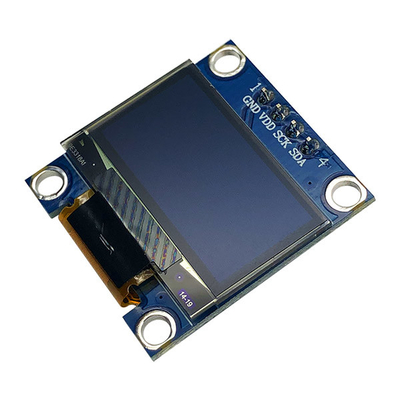

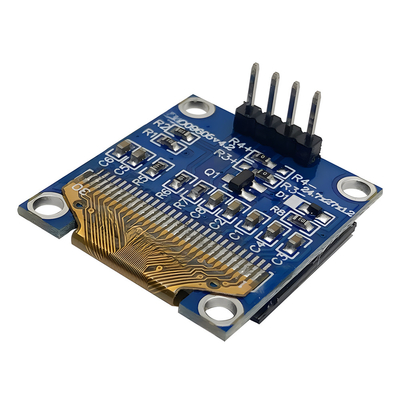

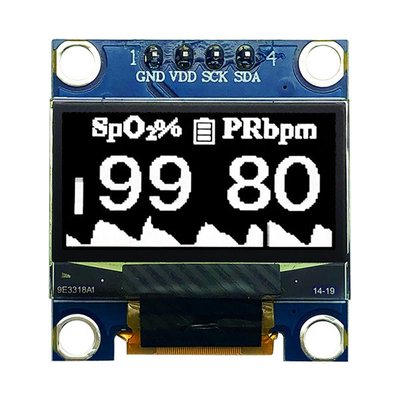

Product Image
Reliability Test
| No. | Item | Condition | Quantity |
| 1 |
High Temperature Storage (HTS) |
85±2℃, 200 hours | 3 |
| 2 |
High Temperature Operating (HTO) |
80±2℃, 96 hours | 3 |
| 3 |
Low Temperature Storage (LTS) |
-40±2℃, 200 hours | 3 |
| 4 |
Low Temperature Operating (LTO) |
-40±2℃, 96 hours | 3 |
|
5 |
High Temperature and Humidity Storage (HTHHS) |
50±3℃, 90%±3%RH, 120 hours |
3 |
|
6 |
Thermal Shock (Non-operation) (TS) |
-20±2℃ ~ 25℃ ~ 70±2℃ (30min) (5min) (30min) 10cycles |
3 |
| 7 | Vibration (Packing) |
10~55~ 10Hz,amplitude 1.5mm, 1 hour for each direction x, y, z |
1 Carton |
| 8 | Drop (Packing) | Height : 1 m, each time for 6 sides, 3 edges, 1 angle | 1 Carton |
| 9 | ESD (finished product housing) | ±4kVR:330Ω; C:150pF 10times,air discharge | 3 |
Compare with competitors
In the market of 0.96-inch OLED with 4-pin PCB products, there are multiple competitors with different advantages and characteristics. Compared to its competitors, SAEF TECHNOLOGY has the following advantages:
Technology and Innovation Capability: SAEF has a deep accumulation in OLED display technology, which can provide products with high resolution and excellent color performance, while continuously launching innovative products to meet market demand.
Capacity and Supply Chain: SAEF has strong production capacity and a comprehensive supply chain system, which can ensure stable product supply and quickly respond to market changes.
Customized Services: SAEF can provide customized services to design and produce 0.96-inch OLED with 4-pin PCB products of specific specifications according to customer needs, meeting the requirements of specific application scenarios.
Brand influence: The SAEF brand has higher recognition and trust in the market, and our products can gain more market attention and customer choice.
