Product Details:
|
| Product: | 1.3 Inch TFT+PCB | PCB: | 7-header Pin PCB |
|---|---|---|---|
| Resolution: | 240x240 Dots | Cover Glass: | Customizable |
| Viewing Direction: | IPS Free Viewing Angle | Interface: | SPI Interface |
| Pin Number: | 7 Pins | Connection: | Header Pin |
| Surface Luminance: | 250 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
| Highlight: | 1.3" TFT LCD Display Screen,240x240 TFT LCD Display,SPI LCD Display Screen Module |
||
1.3inch TFT LCD Module, 240x240 IPS 65K Full Color 3.3V with SPI Interface,
51 STM32 Ar duino Routines for DIY
SPI to serial chip is a multifunctional chip that can convert SPI interface signals into serial signals, which can be used to connect external devices and achieve communication with them. SPI to serial port chips have the advantages of high-speed transmission, low power consumption, and ease of use, and can be used in application scenarios such as computer hardware, household appliances, and industrial control.

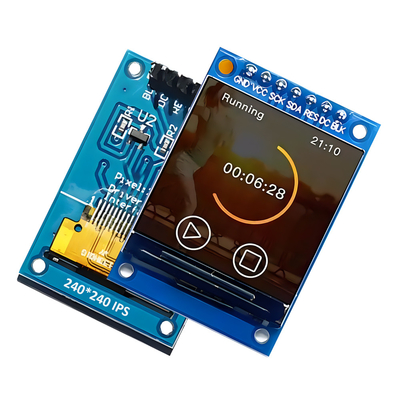

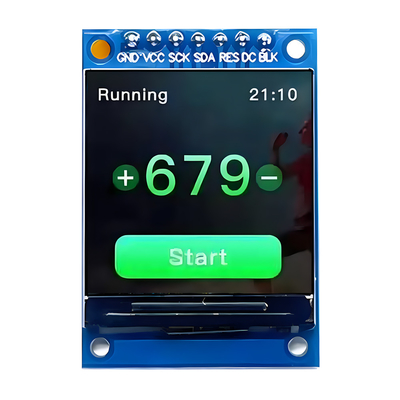

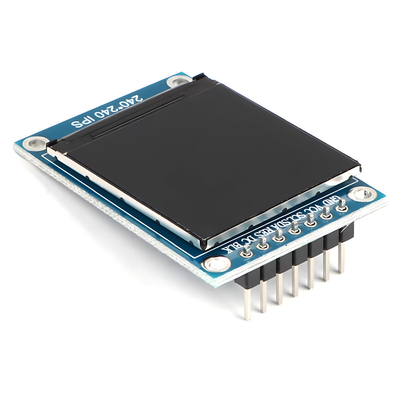

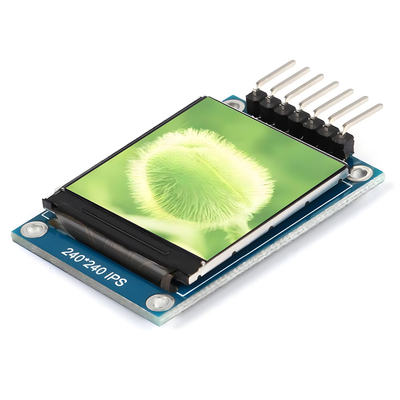

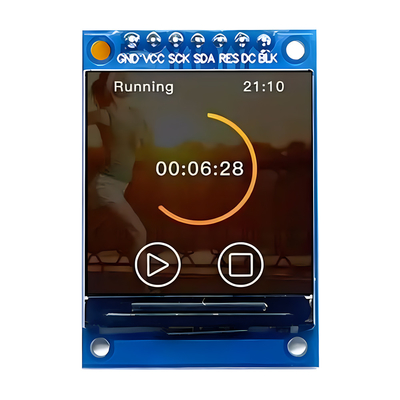

This 1.3-inch TFT LCD display module is a 7-pin display screen with SPI Serial connector. This TFT display provides a semiconductor switch for each pixel, which is directly controlled by pulses. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also enables precise control. The display point size is 240 * 240, and it has two display modes: horizontal display and vertical display. The display direction can be adjusted. The working voltage of this module is 3.3V; The IC driver is ST7789 with a display area size of 23.4 * 23.4mm; TFT module size: 27.5 * 39mm.
Features
| Item |
Contents |
| Part number | SFTM130JY-7181AN |
| LCD Size | 1.3 inch(Diagonal) |
| Display Mode | Normally black |
| Resolution | 240(H)RGB x 240(V) |
| Dot pitch | 0.0975 (H) x 0.0975(V) mm |
| Active area | 23.4(H) x 23.4 (V) mm |
| Module size | 27.5(H) x 39.0(V) x 11.3(D) mm |
| Color arrangement | RGB Vertical stripe |
| Interface | SPI |
| Drive IC | ST7789 |
| Luminance | 250 (TYP) cd/m2 |
| Viewing Direction | All View, IPS |
| Backlight | 2 White LED |
| Operating Temp. | -20℃~ + 70℃ |
| Storage Temp. | -30℃~+ 80℃ |
| Weight | TBD |
Outline Drawing
Pin Definition
| No. | Name | I/O | Description |
| 1 | VCC | P | Power Supply for the chip, DC 3.3-5V |
| 2 | GND | P | Ground |
| 3 | SCL | I | Serial Clock pin (SPI) |
| 4 | SDA | I/O | Serial Data pin (SPI) |
| 5 | RES# | I | Reset signal input. Active Low. |
| 6 | DC | I | Data /Command control pin,SPI Choice/ Command Choice |
| 7 | BLK | I | Backlight control, default floating, low level off |
Backlight Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Voltage | Vf | 3.0 | 3.2 | 3.4 | V |
| Forward Current | If |
-- |
20 |
-- |
mA |
| Operating Life Time | -- | -- | 40000 |
-- |
Hrs |
Optical Characteristics
| Item | Symbol | Measuring Conditions | Min. | Typ. | Max. | Unit | |
| Response Time | Tr+Tf | θ = 0o φ = 0o | 25 oC |
- |
30 | 35 |
ms |
|
Viewing Angle |
θ |
φ = 0o | 25 oC | - | 80 | - |
Deg |
| φ = 180o | 25 oC | - | 80 | - | |||
|
θ |
φ = 90o | 25 oC | - | 80 | - | ||
| φ =270o | 25 oC | - | 80 | - | |||
| Contrast Ratio | CR | - | 25 oC | 800 | - | - | |
| Color of CIE Coordinate | White | X | 25 oC | 0.300 | 0.302 | 0.304 | - |
| Y | 25 oC | 0.323 | 0.325 | 0.327 | |||
| Red | X | 25 oC | 0.622 | 0.624 | 0.626 | ||
| Y | 25 oC | 0.327 | 0.329 | 0.331 | |||
|
Green |
X | 25 oC | 0.286 | 0.288 | 0.290 | ||
| Y | 25 oC | 0.520 | 0.522 | 0.524 | |||
|
Blue |
X | 25 oC | 0.134 | 0.136 | 0.138 | ||
| Y | 25 oC | 0.135 | 0.137 | 0.139 | |||
| Transmittance (with polarizer) | 4. 18 | 4.65 | % | ||||
Product Image
Reliability Tesing
| Test Item |
Test Condition |
Inspection after test |
| High Temperature Operation | 85℃ for 96 hours |
After the Testing is completed, the tested LCD samples must be placed in a normal indoor temperature and humidity environment for 2-4 hours or more before functional and visual inspection. The samples are not allowed to have the following defects: 2. Each tested module can only be used for one of the testing projects |
| Low Temperature Operation | -30℃ for 96 hours | |
| High Temperature Storage | 85℃ for 96 hours | |
| Low Temperature Storage | -30℃ for 96 hours | |
| High Temperature Operation Humidity Operation | 60℃, 90%RH for 72 hours | |
| Thermal Shock | -10℃(30min) ~+25℃(5min)~ +60℃(30min) for 10 cycles | |
| Vibration Test (No Operation) |
Frequency: 10~55Hz Amplitude:1.0mm Sweep Time: 11min Test Period: 6 Cycles for each direction of X, Y, Z |
|
| Static electricity test | Touch ±4KV,air touch ±8KV |
