Product Details:
|
| Product: | 3.6 Inch Circular TFT Display | Resolution: | 544 (RGB) X 506 Dots |
|---|---|---|---|
| Surface Luminance: | 1000 Cd/m2 (nits) | Touch Screen: | Capacitive Touchscreen (CTP) |
| Viewing Direction: | IPS Full Viewing Angle | Driver IC: | ST72566 |
| Pin Number: | 40 Pins | Connection: | ZIF |
| Interface: | RGB 24 Bits | LED Lifetime: | 40,000 Hours |
| Top:: | -30°C To +85°C | Outline Dimension: | 107.13(W )×107.13(H)×9.76(T) Mm |
| Active Area: | 89.76(W) X83.49(H) Mm | Compliance: | REACH & RoHS Compliant |
| Highlight: | High Brightness Circular LCD Display,3.6 inch Circular LCD Display,544x506 Circular LCD Display |
||
Automotive Grade 3.6-inch Circular TFT LCD Display Module Description
Circular IPS LCD screens, as an emerging display technology, have gradually attracted the attention of users due to their unique advantages and wide application scenarios. The rounded corner design makes the screen edges smoother and the visual effect more comfortable. At the same time, this design also makes the screen more ergonomic and convenient to use. Adopting high-definition IPS LCD screen can present more detailed and realistic picture effects, and also enhance the user's visual experience. The advantage of a circular IPS LCD screen is low energy consumption, which means it generates less heat during operation and does not require large heat sinks, thereby reducing energy waste and environmental pollution.
TS8036WV001-T is a 3.6-inch TFT module with 544x506 resolution IPS technology. This round TFT LCD is equipped with IC ST72566 and supports RGB 24 bit interface. Equipped with a 5-point PCAP touch screen that supports I2C interface. Its multi touch functionality and excellent visual performance make it an ideal choice for demanding applications.
-Low Input Voltage: VDD: 2.7~3.6V;
-Display Colors of TFT LCD: 16.7M colors
-CPU Interface: -RGB 24BIT
-Internal Power Supply Circuit.
|
General Information Items
|
Specification | Unit |
| Main Panel | ||
| Display area(AA) | 89.76(H) *83.49(V) (3.6inch ) | mm |
| Driver element | a-Si TFT active matrix | - |
| Display colors | 16.7M | colors |
| Number of pixels | 544(RGB) *506 | dots |
| Pixel arrangement | RGB vertical stripe | - |
| Pixel pitch | 0.165(H) *0.165(V) | mm |
| Viewing angle | ALL | o'clock |
| Drive IC | ST72566 | - |
| Color Pixel Arrangement | RGB vertical stripe | |
| Display mode | Transmissive/ Normally Black | - |
| Operating temperature | -30～+85 | ℃ |
| Storage temperature | -30～+85 | ℃ |
Mechanical Information
|
Item
|
Min. |
Typ. |
Max. |
Unit |
Note | |
| Module size | Horizontal(H) | - | 107.13 | - | mm | -0.1 |
| Vertical(V) | - | 107.13 | - | mm | -0.1 | |
| Depth(D) | - | 9.76 | - | mm | ±0.4 | |
| Weight | - | TBD | - | g | - | |
Automotive Grade 3.6-inch Circular TFT LCD Display Module Drawing
PIN Description
|
PIN NO. |
SYMBOL |
LEVEL | DESCRIPTION |
| 1 | LEDK | L | Backlight- |
| 2 | LEDA | H | Backlight+ |
| 3 | GND | H | power ground |
| 4 | VCC | H | power supply(2.7-3.6V) |
| 5-12 | R0-R7 | H/L | Red data bus |
| 13-20 | G0-G7 | H/L | Green data bus |
| 21-28 | B0-B7 | H/L | Blue data bus |
| 29 | GND | L | power ground |
| 30 | DCLK | H/L | Pixel clock signal pin |
|
31 |
DISP | H/L | connected to VDD in normal operation mode. connected to GND, the IC is in standby mode. |
| 32 | HSYNC | H/L | Horizontal sync. |
| 33 | VSYNC | H/L | Vertical sync. |
| 34 | DE | H/L | Data enable signal |
|
35 |
AUTODL |
H/L |
OPT function control pin |
| 36 | CS | H/L | Chip select input pin |
| 37 | SCL | H/L | Serial clock input. |
| 38 | SDA | H/L | Serial data input pin |
| 39 | NTC1 | / | Connect thermistor |
| 40 | NTC2 | / | Connect thermistor |
ABSOLUTE MAXIMUM RATINGS
|
Item |
Symbol |
Values |
Unit |
|
| Min | Max. | |||
| Supply Voltage for Logic circuit | IOVCC | -0.3 | 4.6 | V |
| Supply Voltage for analog circuit | VCI | -0.3 | 4.6 | V |
DC ELECTRICAL CHARACTERISTICS
|
Item
|
Symbol |
Values |
Unit |
Remark |
||
| Min | Typ | Max. | ||||
| Power Supply | VCC | 2.7 | 2.8 | 3.3 | V | |
| Normal mode Current consumption | Icc | - | - | 55 | mA | VCC=3.3V |
| TFT Gate ON Voltage | VGH | 11.5 | 12 | 16 | V | |
| TFT Gate OFF Voltage | VGL | -8 | -12 | -12 | V | |
BACKLIGHT UNIT CHARACTERISTICS
|
Item
|
Symbol |
Values |
Unit |
Remark |
||
| Min | Typ | Max. | ||||
| Forward supply Voltage | Vf | 13.5 | - | 16 | V | |
| Forward supply Current | If | - | 180 | - | mA | |
| LCM Luminance | LV | 800 | 1000 | - | cd/m2 | IB=180mA |
| Uniformity | / | 80 | % | - | ||

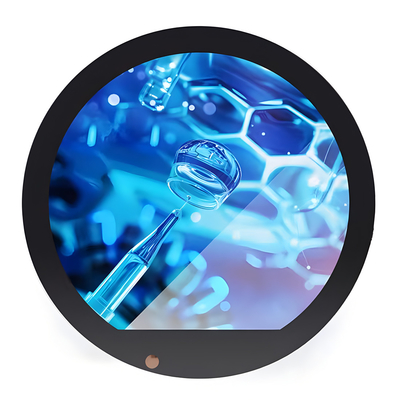

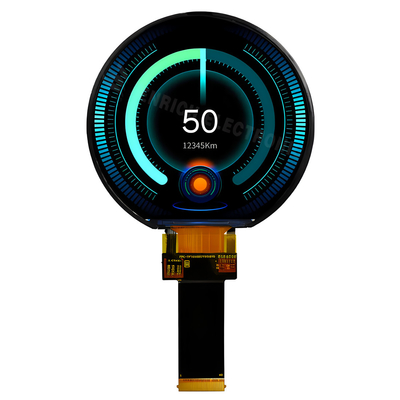

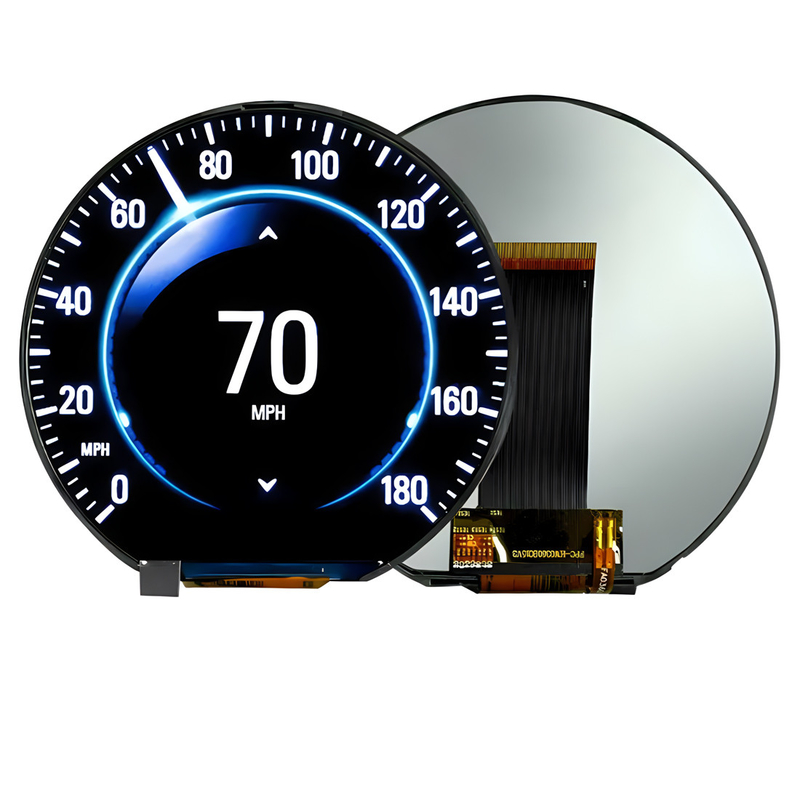

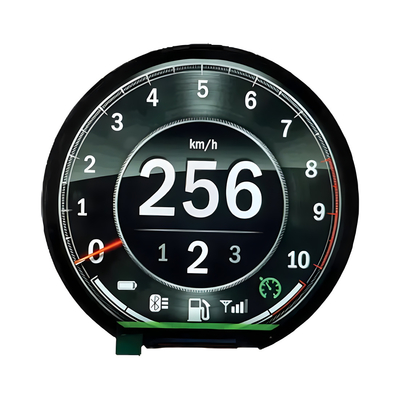

Automotive Grade 3.6-inch Circular TFT LCD Display Module Product Image
