2.8 Inch Circular LCD Display Module 480x480 Dots 8bit RGB Interface With CTP

Description
Product: 2.8 Inch Round TFT Display Resolution: 480 (RGB) X 480 Dots
Touch Screen: Capacitive Touchscreen (CTP) Viewing Direction: IPS Full Viewing Angle
Driver IC: SC7701S Pin Number: 30 Pins
Connection: ZIF Surface Luminance: 250 Cd/m2 (nits)
Interface: RGB 18 Bits LED Lifetime: 40,000 Hours
Top:: -20°C To +70°C Outline Dimension: 86.7(W )×86.7(H)×4.19(T) Mm
Active: 70.13(W) X70.13(H) Mm Compliance: REACH & RoHS Compliant
Highlight:

2.8 Inch Circular LCD Display

,

480x480 Dots Circular LCD Display

,

8bit RGB Interface Circular LCD Display

2.8 inch 480x480 Round TFT LCD Display Module Description


TS8028WV001-T is a color active matrix TFT (thin film transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as the switching device. This model consists of a transmissive TFT-LCD panel, driver circuit, and backlight unit. The resolution of 2.8-inch round TFT-LCD is 480 * 480 pixels, and it can display up to 16.7 million colors.

This product is widely used in communication, household appliances, industrial control, medical equipment, instruments and meters, automotive electronics, GPS navigation, financial equipment, consumer devices, information appliances, cultural and educational entertainment, attendance machines, fingerprint scanners, access control machines, stock machines, intercoms, video doorbells, learning machines, readers, etc.

Features

-Low Input Voltage: VDD: 2.7~3.6V;
-Display Colors of TFT LCD: 16.7M colors
-CPU Interface: -RGB 18BIT
-Internal Power Supply Circuit.



General Information Items Specification Unit
Main Panel
Display area(AA) 70.128(H) *70.128(V) (2.8inch ) mm
Driver element a-Si TFT active matrix -
Display colors 16.7M colors
Number of pixels 480(RGB) *480 dots
Pixel arrangement RGB vertical stripe -
Pixel pitch 0.180(H) *0.180(V) mm
Viewing angle ALL o'clock
Drive IC ST7701S -
Color Pixel Arrangement RGB vertical stripe
Display mode Transmissive/ Normally Black -
Operating temperature -20～+70 ℃
Storage temperature -30～+80 ℃



Mechanical Information

Item Min. Typ. Max. Unit Note
Module size Horizontal(H) - 86.7 - mm -0.1
Vertical(V) - 86.7 - mm -0.1
Depth(D) - 4.19 - mm ±0.3
Weight - TBD - g -




2.8 inch 480x480 Round TFT LCD Display Module Drawing


2.8 Inch Circular LCD Display Module 480x480 Dots 8bit RGB Interface With CTP 0



PIN Description



Pin NO. Symbol Level Function
1 LEDA H Backlight+
2 LEDK1 L Backlight-
3 LEDK2 L Backlight-
4 LEDK3 L Backlight-
5 LEDK4 L Backlight-
6 VDD 2.8V H Power supply(2.5-3.3V)
7 IOVCC1.8V H Power supply(1.65-3.3V)
8 LCM RST H/L LCM Hardware reset pin
9 TE H/L Tearing effect output
10 PWM H/L Backlight on/off control pin.
11 GND L Ground
12 D0P H/L HSSI_D0+ are differential data signal line.
13 D0N H/L HSSI_D0- are differential data signal line.
14 GND L Ground
15 D1P H/L HSSI_D1+ are differential data signal line.
16 D1N H/L HSSI_D1- are differential data signal line.
17 GND L Ground
18 CP H/L HSSI_CLK+ are differential data signal line.
19 CN H/L HSSI_CLK- are differential data signal line.
20 GND L Ground
21 NC   NC
22 GND L Ground
23 NC   NC
24 GND L Ground
25 TP-INT H/L Interrupt pin
26 TP-SDA H/L Serial data input pin
27 TP-SCL H/L Serial clock input
28 TP-REST H/L TP Hardware reset pin
29 TP-VCC H/L Power supply 2.8V
30 GND L Ground



ABSOLUTE MAXIMUM RATINGS



Item

Symbol

 Values

Unit
Min Max.
Supply Voltage for Logic circuit IOVCC -0.3 4.6 V
Supply Voltage for analog circuit VCI -0.3 4.6 V





DC ELECTRICAL CHARACTERISTICS



Item

Symbol

 Values

Unit

Remark
Min Typ Max.
Power Supply VCC 2.7 2.8 3.3 V
Normal mode Current consumption Icc - - 55 mA VCC=2.8V
TFT Gate ON Voltage VGH 11.5 12 16 V
TFT Gate OFF Voltage VGL -8 -12 -12 V



BACKLIGHT UNIT CHARACTERISTICS





Item



Symbol

 Values



Unit



Remark
Min Typ Max.
Forward supply Voltage Vf 2.7 - 3.3 V
Forward supply Current If - 80 - mA
LCM Luminance LV 220 250 - cd/m2 IB=80mA
Uniformity / 80     % -

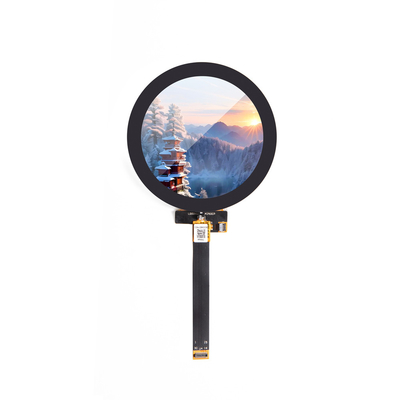

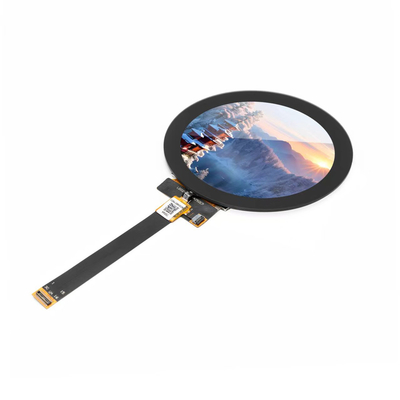

2.8 inch 480x480 Round TFT LCD Display Module Product Image
2.8 Inch Circular LCD Display Module 480x480 Dots 8bit RGB Interface With CTP 12.8 Inch Circular LCD Display Module 480x480 Dots 8bit RGB Interface With CTP 2

Factory Facilities and Certificates

2.8 Inch Circular LCD Display Module 480x480 Dots 8bit RGB Interface With CTP 32.8 Inch Circular LCD Display Module 480x480 Dots 8bit RGB Interface With CTP 4
